Soundbar - Acoustic Barrier
Verified by manufacturer 25 days ago
Alcumus SafeContractor
Certificate type
Soundbar acoustic vertical cavity barrier.
Application
Acoustic vertical cavity barrier for use to reduce sound transmission through suspended ceiling voids.
Description

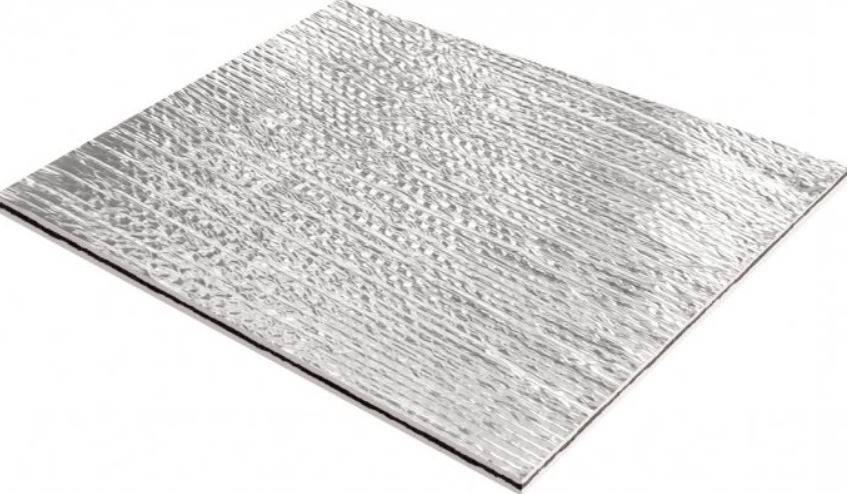

Soundbar is a high performance, semi-flexible acoustic barrier designed to reduce sound transmission through suspended ceiling voids.
Soundbar can reduce room to room noise by up to 53 dB. Soundbar provides maximum speech privacy and protection against unwanted noise. Pleasant to handle and easily cut and shaped, Soundbar will readily form around services which pass through the barrier.
Soundbar is formed with a dense core bonded between two fibrous layers. The outer surface has a reinforced aluminium facing. Soundbar is supplied as a system with all accessories for installation.
Features and benefits:
- Reduces room to room noise up to 53 dB.
- Easily installed from one side.
- Easily cut and shaped.
- Easily accommodates service penetrations.
- Easily jointed.
- Suitable for retrofit.
- Installation causes minimal disruption.
- All fixing and accessories provided.
General information
Color | Silver |
Finish | Foil |
Material | Aluminium Glass Fibre |
Shape | Rectangle |
Length | 1150 mm |
Width | 1150 mm |
Height | 15 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Standard | To BS EN 20140.9 and BS 5821. |
Form | Panel. |
Rigidity | Flexible. |
Application | Ceiling mounting.Guidance for specification option: Acoustic vertical cavity barrier. |
Material | Composite.Guidance for specification option: Aluminium faced glass fibre bonded either side of mass loaded vinyl. |
Material density | 9 kg/m². |
Acoustic performance | |
Purpose | Diffuser. |
Dimensions | |
Size (length x width) | 1150 x 1150 mm. |
Thickness (overall) | 15 mm. |
Edges | Square. |
Surface pattern | Solid. |
Finish | Aluminium faced. |
Colour | Silver. |
Accessories | Soundbar angle with seal.Guidance for specification option:
Self adhesive Soundbar cover strips.Guidance for specification option:
Pre-drilled clamping angle.Guidance for specification option:
|
Fixings | Hex head tec screw. Guidance for specification option: 25 x 5.5 mm. |
Sound insulation | 53 dB Dnc,w. Guidance for specification option: As tested in accordance with BS EN 20140.9 1994 (rated according to BS 5821 Part 1, 1984) room to room normalized weighted sound level difference (Dncw 53 dB). test carried out 4.11.98 test no c/98/5L/7479/1 sound research Laboratories Ltd, Holbrook House sudbury suffolk. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass Fibre |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 33 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

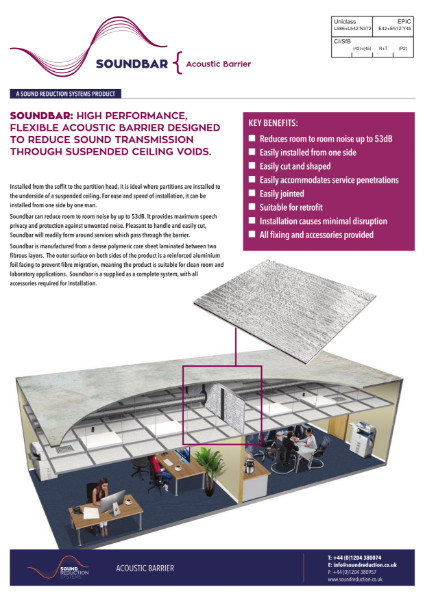

SRS SoundBar
