Sonata Memo - Absorber

Verified by manufacturer 7 days ago

Sound Reduction Systems Ltd Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

Class A, dual purpose acoustic absorber and acoustic noticeboard for walls. Sonata Memo acoustic wall panels for sound absorption are an effective and practical way of reducing reverberation in rooms.

Jump to:
+44 (0)1204 380074 Website

Application

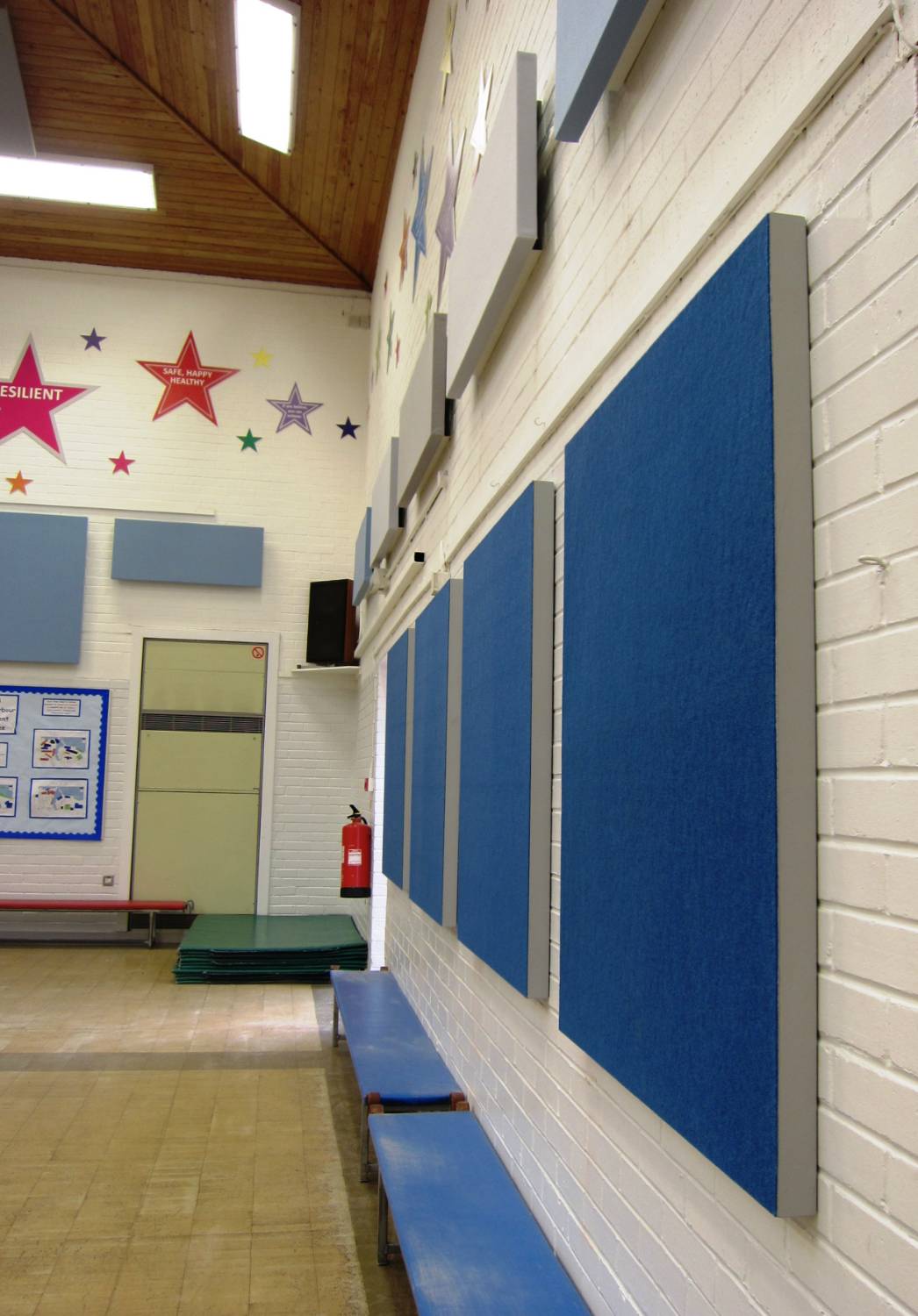

  • School halls.

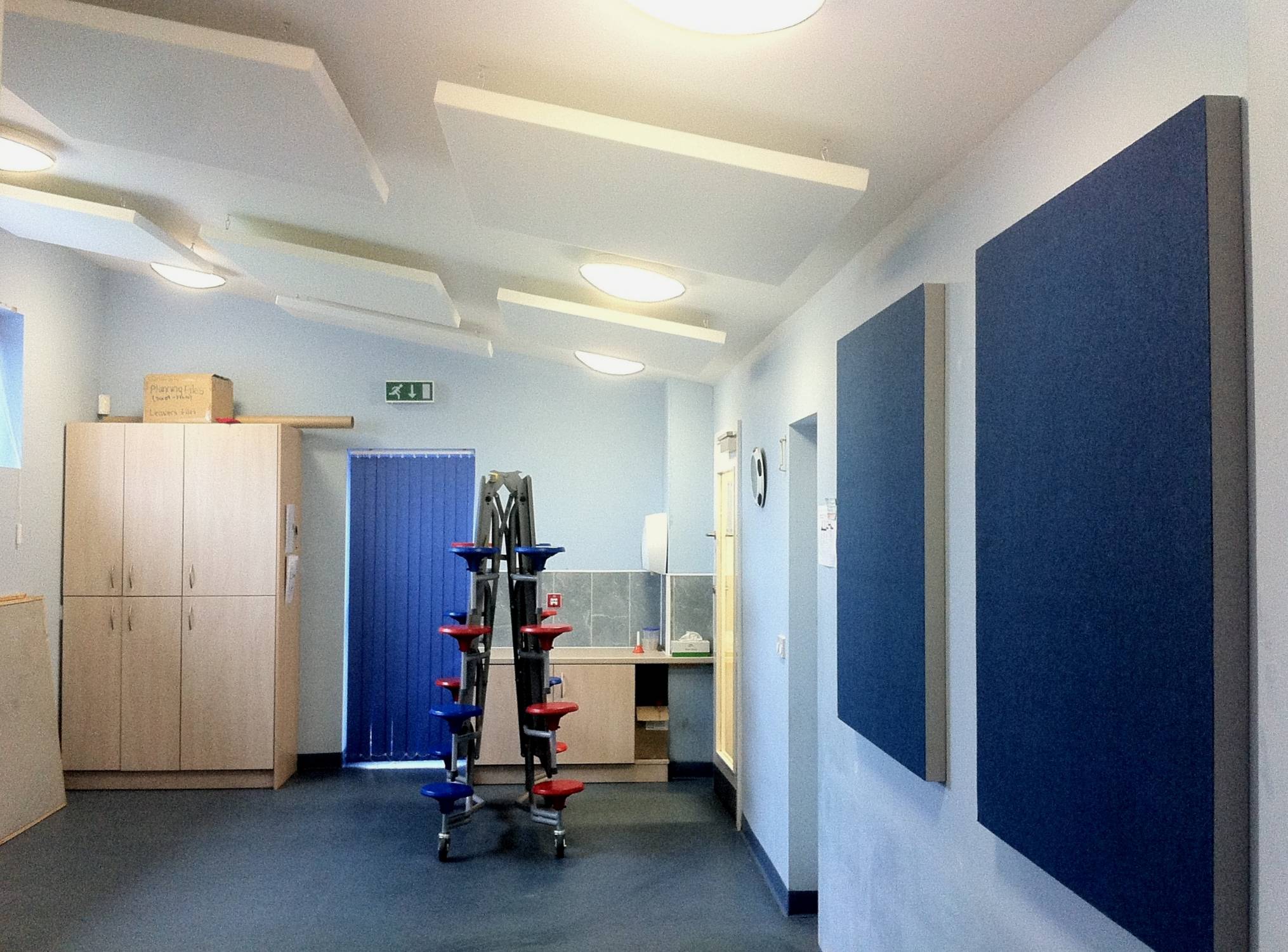

  • Classrooms.
  • Canteen/ dining rooms.
  • Sports halls/ gyms.
  • Village/ community halls.
  • Church halls.
  • Restaurants/ bars.
  • Scout/ guide huts.
  • Video/ audio conferencing rooms.
  • Open plan offices.

Description

SRS Sonata Memo absorbers are a practical and cost effective way of controlling reverberation.


Sonata Memo panels are an incredibly efficient way to introduce a high performance, absorptive material to any space whilst maintaining wall space for displays and notices. The panels comprise a technical, non-shedding, acoustic foam, a rigid frame insert to the rear and a Sonatile sound absorbing facing material, able to take pins and tacks directly.


Easily and quickly installed, Sonata Memo panels are simply flush mounted to walls on screw heads. Alternatively, Sonata Memo panels can be installed on wall mounting brackets to enhance acoustic performance, give a clearance over obstructions, or to create a stunning visual effect. The product is available in a wide range of colours and sizes to accommodate any existing wall.


Features and benefits:

  • Sonatile sound absorbing facing is pin, Velcro and staple friendly.
  • Acoustic foam core offers Sonata Vario-level sound absorption capability.
  • Acoustic performance is boosted when fitted on wall brackets via the rear airspace.
  • Simple to install and remove for decoration, access or relocation.
  • Overcomes surface obstructions i.e. trunking when installed on wall brackets.
  • Available in a choice of sizes and visually pleasing colour combinations.

General information

Color

Other

Finish

Other

Material

Foam

Felt

Shape

Square

Rectangle

Length

600 mm

1200 mm

Width

500 mm

600 mm

800 mm

1000 mm

1200 mm

Height

50 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/265 Infill units

K40/115 Unit/ modular suspended ceiling system

Specification data - Sound attenuator infill units

Form

Absorber.

Application

Wall mounting.

Material

Foam.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

Absorber thickness: 50 mm. Acoustic performance: 0.90 αw.

Fire performance

-

Fire resistance

Foam core panel meets the requirements of Class 0.
Sonatile face meets the requirements of Class 1 (surface spread of flame).

Guidance for specification option:

Class 0 rated fabric available on request.

Manufacturer guidance

To BS 476-6 and -7.

Reaction to fire

Foam core and Sonatile face meets the requirements of Class C,s2,d0.

Manufacturer guidance

To BS EN 13501-1.

Dimensions

-

Size (length x width)

1200 x 1200 mm.

1200 x 1000 mm.

1200 x 800 mm.

1200 x 600 mm.

1200 x 500 mm.

600 x 600 mm.

600 x 500 mm.

Thickness (overall)

50 mm.

Profile

Linear.

Edges

Square.

Finish

Fabric.

Manufacturer guidance

The Sonatile face finish is available in a range of colours. Colour swatch available on request. Frame and bracket finish: Polyester powder coated finish in any RAL colour. Grey

semi-gloss as standard, other colours on request. Consult manufacturer for details and insert requirements.

Colour

-

Manufacturer guidance

A wide range of colours are available, and can also be printed with photographs or images to create a striking ‘canvas’ effect. Consult manufacturer for details and insert requirements.

Accessories

Large Mounting Brackets.

Small Mounting Brackets.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Foam

Felt

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor Certificate

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor PQQ Certificate

Literature

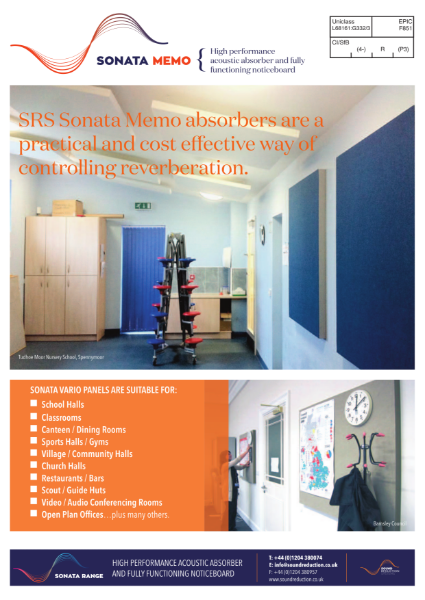

SRS Sonata Memo Data Sheet

SRS Sonata Memo Data Sheet

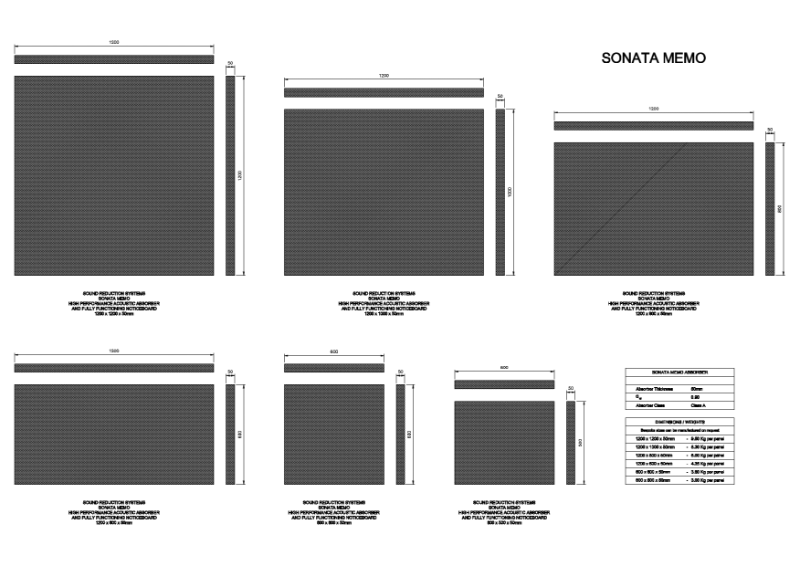

Sonata Memo Acoustic Noticeboard CAD Drawing

Sonata Memo Acoustic Noticeboard CAD Drawing

Institute of Acoustic Sponsor Certificate

Institute of Acoustic Sponsor Certificate

Richard Sherwood MIOA Certificate

Richard Sherwood MIOA Certificate
