Sonata Rhino - Absorber
Verified by manufacturer 7 days ago
Alcumus SafeContractor
Certificate type
High performance, Class A rated, perforated metal absorbers. Suitable for walls and ceilings, Sonata Rhino panels are an effective and attractive way of reducing reverberation in all kinds of rooms
Application
- School halls.
- Classrooms.
- Canteen/ dining rooms.
- Sports halls/ gyms.
- Village/ community halls.
- Church halls.
- Restaurants/ bars.
- Scout/ guide huts.
- Video/ audio conferencing rooms.
- Open plan offices.
Description
Sonata Rhino absorber, is a practical, cost effective way of controlling reverberation, while benefitting from excellent impact resistance and visual appearance.
Features and benefits:
- Excellent Class A rated sound absorption performance.
- High impact resistance – excellent in sports halls.
- Robust metal construction.
- Tough, wipable polyester powder-coated finish.
- Choice of RAL colour.
- Non-shedding foam core.
- Ceiling or wall application.
- Simple installation.
- Great for commercial, industrial, and educational applications.
General information
Color | Manufacturer guidanceAvailable in a range of RAL colours to suit. |
Finish | Powder-coated |
Material | Foam Metal |
Shape | Square Rectangle |
Length | 600 mm 1000 mm |
Width | 1000 mm 1200 mm |
Height | 50 mm |
Uniclass | |
CAWS | K40/265 Infill units K40/115 Unit/ modular suspended ceiling system |
Specification data - Sound attenuator infill units
Form | Absorber. |
Application | Wall mounting.Ceiling mounting. |
Material | Foam. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A to BS EN ISO 11654.Guidance for specification option: Absorber thickness: 50 mm. Acoustic performance: 0.90 αw. |
Fire performance | |
Fire resistance | Foam core meets the requirements of Class 0. The Rhino panel body is constructed from a non-combustible perforated metal.Guidance for specification option: Class 0 rated fabric available on request. Manufacturer guidanceTo BS 476-6 and -7. |
Reaction to fire | Foam core meets the requirements of Class C,s2,d0.Manufacturer guidanceTo BS EN 13501-1. |
Dimensions | |
Size (length x width) | 1000 x 1000 mm.1000 x 600 mm.1200 x 1000 mm.1200 x 600 mm. |
Thickness (overall) | 50 mm. |
Profile | Linear. |
Edges | Square. |
Surface pattern | Perforated. |
Colour | Manufacturer guidanceA wide range of colours are available, and can also be printed with photographs or images to create a striking ‘canvas’ effect. Consult manufacturer for details and insert requirements. |
Accessories | Button-Fix pack.Rhino Ceiling Suspension pack.Rhino Corner Plates.Rhino Wall Brackets. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Foam Metal |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

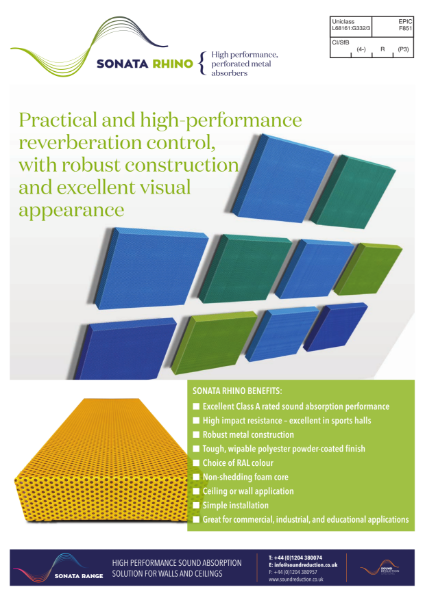

SRS Sonata Rhino Data Sheet
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
