Sonata Vario - Absorber

Verified by manufacturer 25 days ago

Sound Reduction Systems Ltd Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

Class A suspended sound absorption panels for reducing reverberation. Suitable for walls and ceilings, Sonata Vario panels offer performance and practical advantages over directly bonded panels

Jump to:
+44 (0)1204 380074 Website

Application

  • School halls.
  • Classrooms.
  • Canteen/ dining rooms.
  • Sports halls/ gyms.
  • Village/ community halls.
  • Church halls.
  • Restaurants/ bars.
  • Scout/ guide huts.
  • Video/ audio conferencing rooms.
  • Open plan offices.

Description

SRS Sonata Vario absorbers are a practical and cost effective way of controlling reverberation.


The product comprises of a technical acoustic foam, wrapped in a high quality, acoustic transparent fabric and bonded to a rear metal support frame which is prefinished with precision laser-cut fixing apertures.

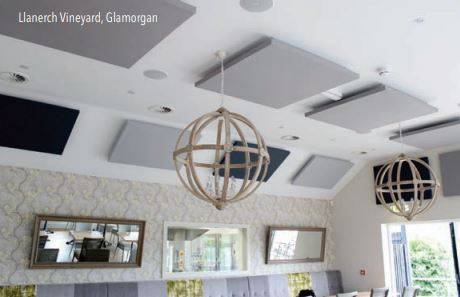

The panels are an incredibly efficient way to introduce a high performance, absorptive material to any space. The panels comprise a technical, non-shedding, acoustic foam, a rigid frame insert to the rear and an acoustically transparent fabric finish to the face and sides. Easily and quickly installed, Sonata Vario panels can be suspended from ceilings on clips or bracket mounted to walls. Allowing the panels to stand proud of the ceiling or wall exposes the back of the panel and offers an enhanced acoustic performance as well as creating a stunning visual effect.


The product is available in a wide range of colours and sizes to accommodate any existing wall or ceiling and can also be printed with photographs or images to create a striking ‘canvas’ effect.


Features and benefits:

  • BB93 solution.
  • Class A rated raft absorber.
  • Wide range of colours / sizes.
  • Bespoke printed panels available.
  • Suspended mountings can span wiring, pipes and conduit.
  • Spectacular 3D aesthetic.
  • Quick, easy and clean to install.
  • Non-shedding foam panels – no mineral fibre.

General information

Finish

Other

Material

Foam

Fabric

Shape

Square

Rectangle

Length

600 mm

1200 mm

Width

500 mm

600 mm

800 mm

1000 mm

1200 mm

Height

50 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/265 Infill units

K40/115 Unit/ modular suspended ceiling system

Specification data - Sound attenuator infill units

Form

Raft.

Application

Ceiling mounting.

Guidance for specification option:

For installation onto ceilings the Ceiling Suspension Pack is required.

Wall mounting.

Guidance for specification option:

For installation onto walls the Vario mounting brackets are required.

Material

Foam.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

Absorber thickness: 50 mm. Acoustic performance: 1.00 αw.

Fire performance

-

Fire resistance

Foam core panel meets the requirements of Class 0.
Fabric panel wrap meets the requirements of Class 1 (surface spread of flame).

Guidance for specification option:

Class 0 rated fabric available on request.

Manufacturer guidance

To BS 476-6 and -7.

Reaction to fire

Foam core panel meets the requirements of Class C,s2,d0.
Fabric panel wrap meets the requirements of Class B, s1, d0.

Manufacturer guidance

To BS EN 13501-1.

Dimensions

-

Size (length x width)

1200 x 1200 mm.

1200 x 1000 mm.

1200 x 800 mm.

1200 x 600 mm.

1200 x 500 mm.

600 x 600 mm.

600 x 500 mm.

Thickness (overall)

50 mm.

Profile

Linear.

Edges

Square.

Finish

Fabric (open-weave, acoustically transparent) to face, edges and back returns.

Colour

-

Manufacturer guidance

A wide range of colours are available, and can also be printed with photographs or images to create a striking ‘canvas’ effect. Consult manufacturer for details and insert requirements.

Accessories

Ceiling Suspension Kit.

Large Mounting Brackets.

Small Mounting Brackets.

Orientation

Landscape.

Portrait.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Foam

Fabric

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor Certificate

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor PQQ Certificate

Literature

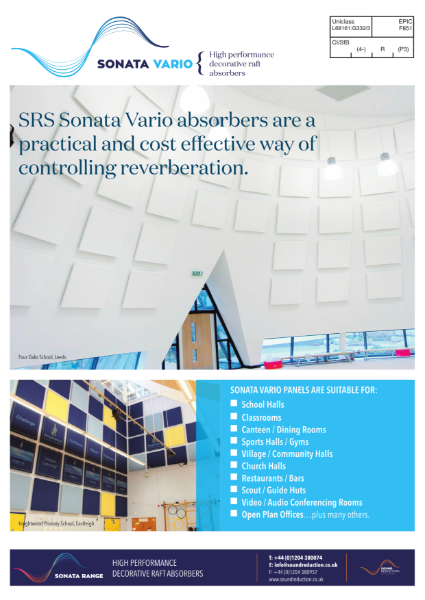

SRS Sonata Vario Data Sheet
