Sonata Aurio - Absorber
Verified by manufacturer 23 days ago
Alcumus SafeContractor
Certificate type
Class A, decorative sound absorption panels for reducing excessive reverberation within all rooms. Sonata Aurio panels are easily and quickly installed to walls and ceilings with Sonatac adhesive
Application
- School halls.
- Classrooms.
- Canteen/ dining rooms.

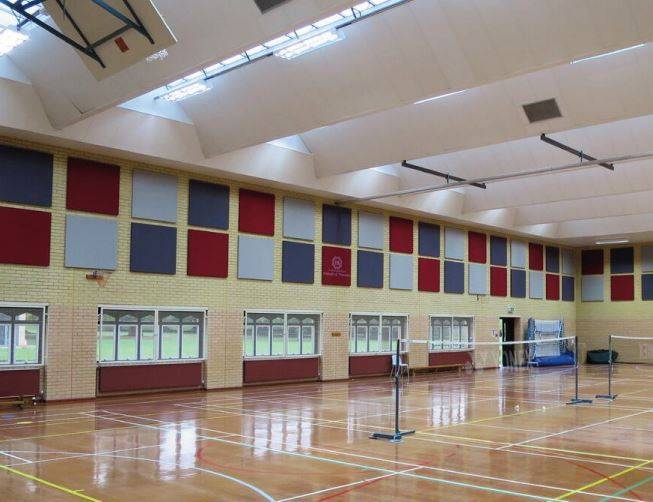

- Sports halls/ gyms.
- Village/ community halls.
- Church halls.
- Restaurants/ bars.
- Scout/ guide huts.
- Video/ audio conferencing rooms.
- Open plan offices.
Description
SRS Sonata Aurio absorbers are a practical and cost effective way of controlling reverberation.
The panels are an incredibly efficient way to introduce a high performance, absorptive material to any space. The panels comprise a technical, non-shedding, acoustic foam with an acoustically transparent fabric finish to the face and sides. Easily and quickly installed, the panels can be directly bonded to walls and ceilings and are so robust that they are perfect for gyms, sports halls or anywhere where ball strikes may occur.
Available in a wide range of colours and sizes to accommodate any existing wall or ceiling and can also be printed with photographs or images to create a striking ‘canvas’ effect.
Features and benefits:
- Building Regulations compliant solution.
- Class A rated absorber.
- Wide range of colours / sizes.
- Bespoke printed panels available.
- Extremely robust and durable.
- Quick, easy and clean to install.
- Bonded solution – no drilling required.
- Non-shedding foam panels – no mineral fibre.
General information
Color | Other Guidance for specification option: Multiple options are available, consult manufacturer for details. |
Finish | Other Guidance for specification option: Fabric. |
Material | Foam Fabric |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 500 mm 600 mm 800 mm 1000 mm 1200 mm |
Height | 50 mm |
Uniclass | |
CAWS | K40/265 Infill units K40/115 Unit/ modular suspended ceiling system |
Specification data - Sound attenuator infill units
Form | Absorber. |
Application | Ceiling mounting.Wall mounting. |
Material | Foam. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A to BS EN ISO 11654.Guidance for specification option: Absorber thickness: 50 mm. Acoustic performance: 0.95 αw. |
Fire performance | |
Fire resistance | Foam core panel meets the requirements of Class 0. |
Reaction to fire | Foam core panel meets the requirements of Class C,s2,d0. |
Dimensions | |
Size (length x width) | 1200 x 1200 mm.1200 x 1000 mm.1200 x 800 mm.1200 x 600 mm.1200 x 500 mm.600 x 600 mm.600 x 500 mm. |
Thickness (overall) | 50 mm. |
Profile | Linear. |
Edges | Square. |
Finish | Factory-applied fabric (open-weave, acoustically transparent) to face, edges and back returns. |
Colour | Manufacturer guidanceA wide range of colours are available, and can also be printed with photographs or images to create a striking ‘canvas’ effect. Consult manufacturer for details and insert requirements. |
Accessories | 310 ml Sonatac Adhesive. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Foam Fabric |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

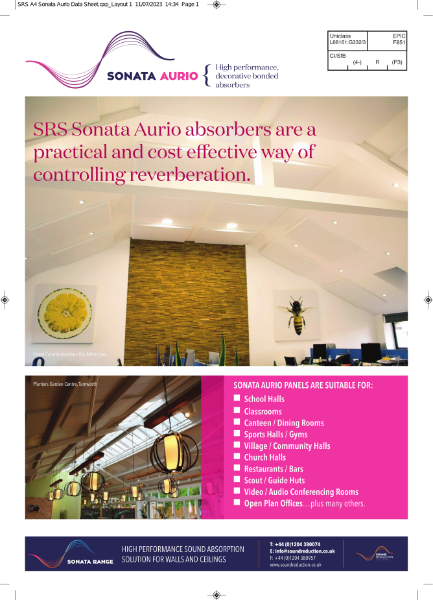

SRS Sonata Aurio Datasheet

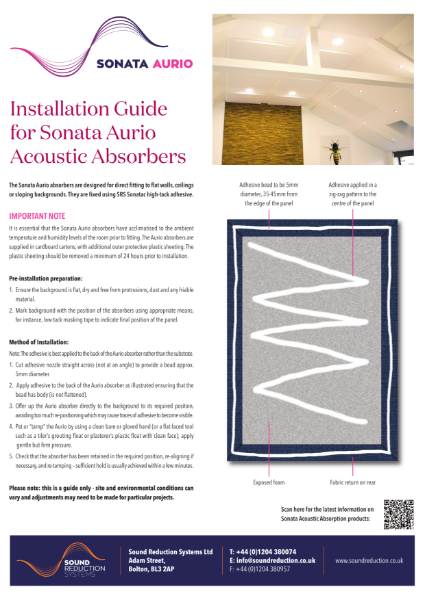

Sonata Aurio Installation Datasheet

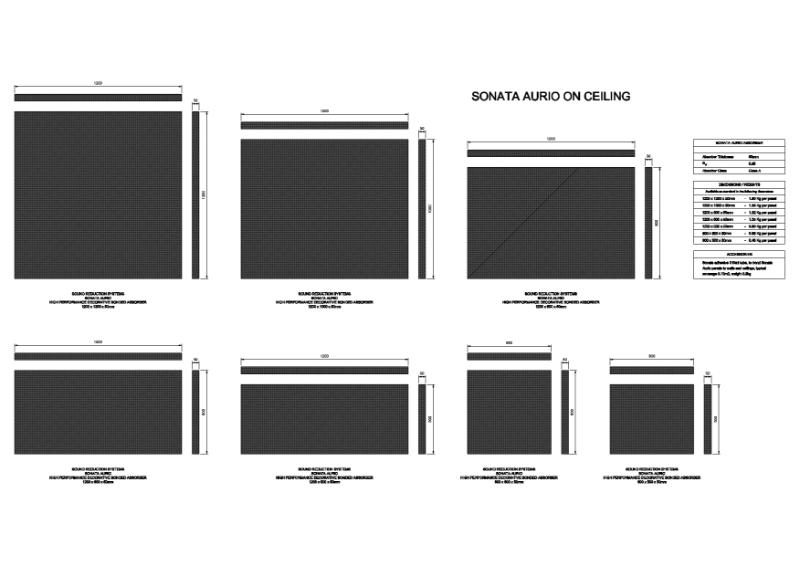

Sonata Aurio Ceiling Installation CAD Drawing
Sonata Aurio Wall Installation CAD Drawing
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
Case studies
Superb Results at Socketts Heath Baptist Church
Westgate Primary School, Morecombe
Reverberation solution for multi-purpose hall at Thackley Primary School, Bradford
Acoustic comfort transformed inside Gloucestershire village hall
Improving acoustics by reducing reverberation within Ashby Scouts Centre
