Outlet - Universal Rectangular Leaf & Gravel Guard

Verified by manufacturer 3 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

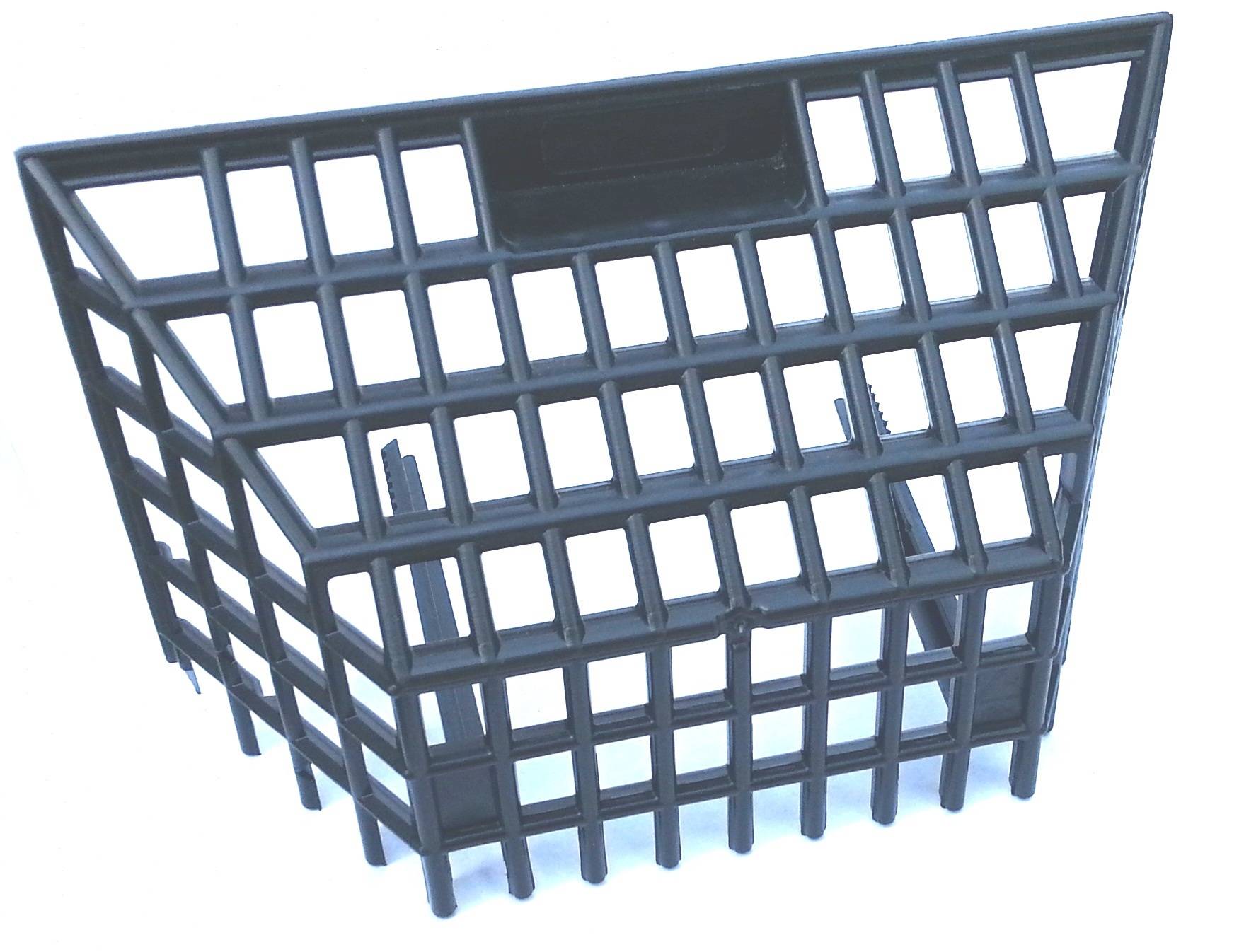

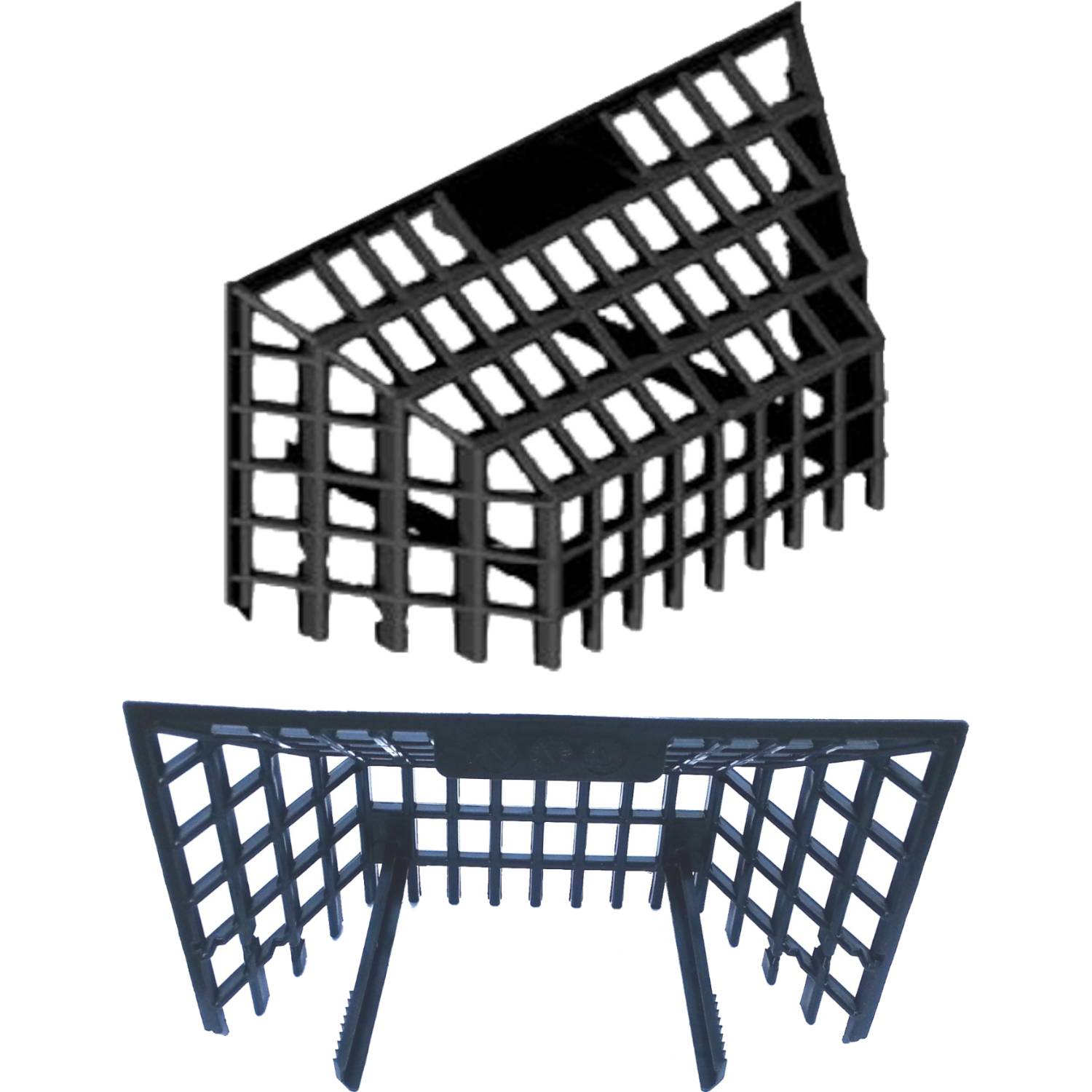

Rectangular shaped leaf guard for insertion into corner through wall drainage outlets. Suitable for EPDM, PVC and TOE outlets.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

For insertion into through wall drainage outlets. Suitable for EPDM, PVC and TPE outlets.

Description

Rectangular shaped leaf guard for insertion into through wall drainage outlets.


Features and benefits:

  • Leaf guards have two protruding rods which will enter the mouth of the outlet and grip the sides of the spigot to give a firm grip.
  • Adhesive is not usually required.
  • Squeeze the sides of the lead guard to release it from the spigot.
  • UV resistant.
  • Reusable.
  • Can be fitted on multiple outlets.

General information

Color

Black

Finish

Matt

Material

Polypropylene

Shape

Rectangle

Length

184 mm

Width

67 mm

Height

112 mm

Warranty description

15 year

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

Product range

Green Roof - Modular, Rollout, Extensive and Intensive
Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material

Plastic.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Datasheet - Rectangular Polypropylene Gravel & Leaf Guard

Datasheet - Rectangular Polypropylene Gravel & Leaf Guard
