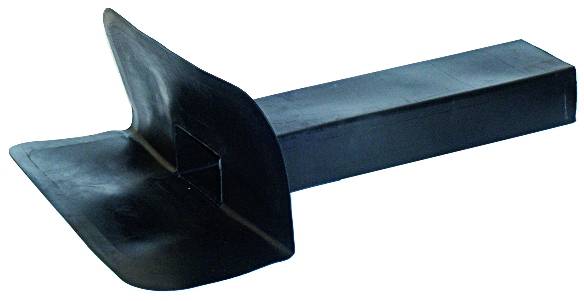

Outlet - EPDM Corner (Through Wall) - Round & Square Shank

Verified by manufacturer 3 months ago

Wallbarn Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Preformed shape for insertion into drainage outlets to improve waterproofing and protection; for use with EPDM and bituminous waterproofing systems.

Jump to:
+44 (0)20 8916 2222 Website

Application

A connector between pipes but eliminates smells up to roof or deck. For use with EPDM and bituminous waterproofing systems.

Description

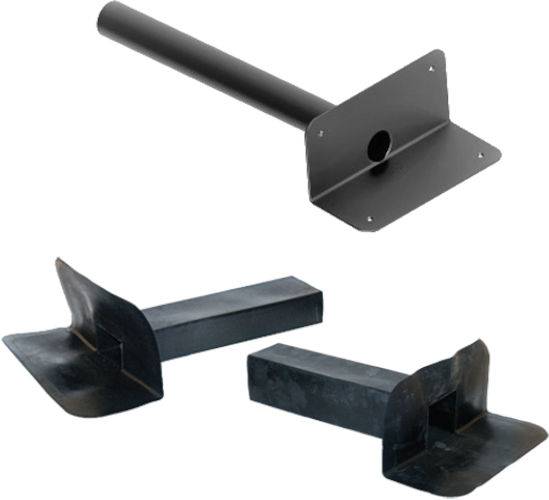

Tough and fully flexible pre-cast corner fittings for drainage holes on roofs, balconies and terraces. For use with EPDM and bituminous waterproofing systems.


Features and benefits:

  • The outlet pipe is round and slightly recessed, with a small drop form the horizontal border flap to encourage the water to flow into the pipe immediately. It is also slightly angled to create a fall, encouraging faster flow of the water down the pipe.
  • They can be fitted to vertical downpipes at the edge of the retaining wall, or on a horizontal plane through the upstand or wall to then connect to the external downpipe.
  • The corner fitting includes a flange which is sandwiched between two layers of waterproofing membrane and it is available with either a square or rectangular shaped outlet pipe.
  • UV resistant.

General information

Color

Black

Finish

Matt

Material

EPDM

Guidance for specification option:

Ethylene propylene diene monomer rubber

Shape

Rectangle

Circle

Square

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Length

500 mm

427 mm

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Width

50 mm

63 mm

65 mm

75 mm

80 mm

Show more

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Height

155 mm

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Warranty description

15 year

Guidance for specification option:

15 year limited warranty where products used strictly for intended purpose.

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material

EPDM.

Spigots

500 mm.

Outlet pipe size (h x w x l)

65 x 100 x 425 mm.

100 x 100 x 425 mm.

Flange size

100 x 140 mm.

130 x 175 mm.

130 x 215 mm.

130 x 260 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

EPDM

Guidance for specification option:

Ethylene propylene diene monomer rubber

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

Platform Compatible Version
IFC
-

2

Revit
-

2

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

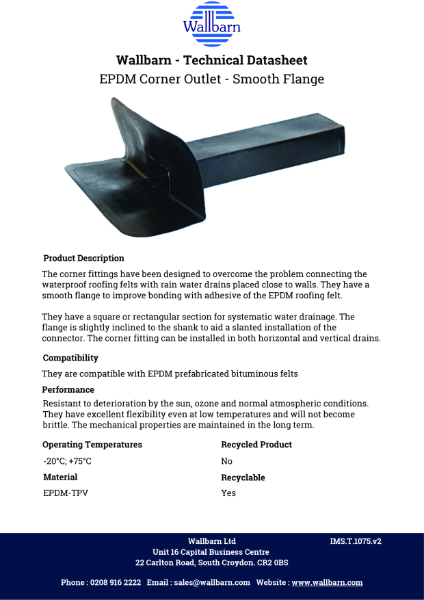

Datasheet - EPDM Corner (Through Wall) Outlet Rectangle & Square Shank

Datasheet - EPDM Corner (Through Wall) Outlet Rectangle & Square Shank

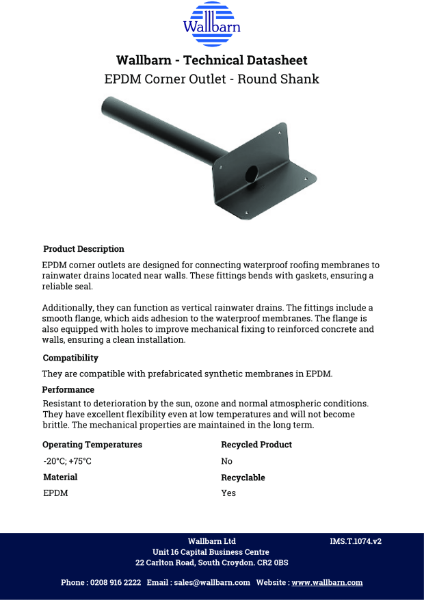

Datasheet - EPDM Corner (Through Wall) Outlet Round Shank

Datasheet - EPDM Corner (Through Wall) Outlet Round Shank

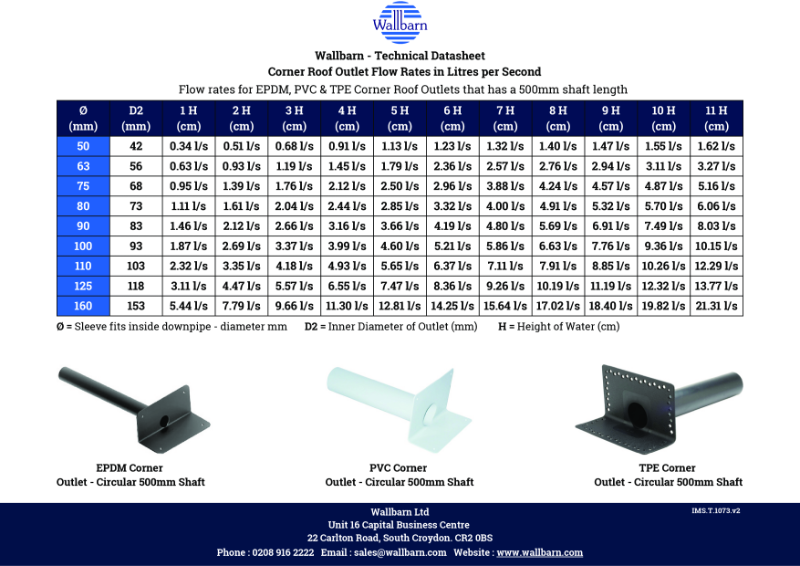

Datasheet - Flow Rates Corner (Through Wall) Outlet - 500mm Circular Shaft

Datasheet - Flow Rates Corner (Through Wall) Outlet - 500mm Circular Shaft
