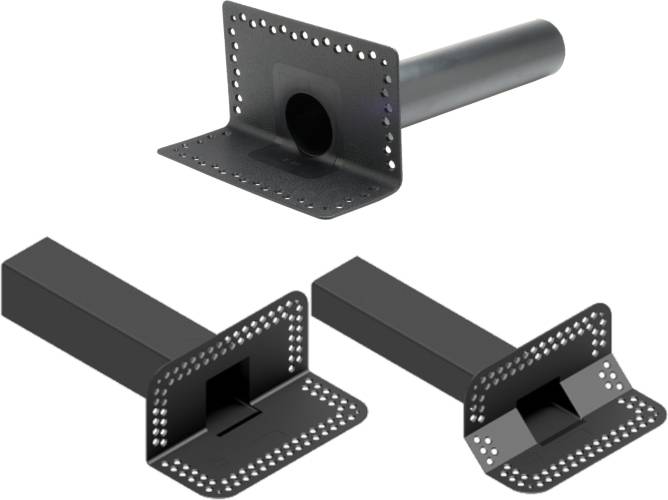

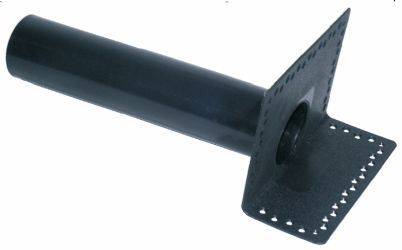

Outlet - TPE Corner (Through Wall) Perforated Flange

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Corner Outlet manufactured from TPE compound for bonding to bitumen based waterproofing membranes in a sandwich technique. Ideal for hot melt and felt. Available in 45°, 90° in Square & Round Shank.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Tough and durable pre-cast corner fittings for drainage holes on roofs, balconies and terraces.

Description

Tough and durable pre-cast corner fittings for drainage holes on roofs, balconies and terraces.


Features and benefits:

  • The outlet pipe is round and slightly recessed, with a small drop form the horizontal border flap to encourage the water to flow into the pipe immediately.
  • It is also slightly angled to create a fall, encouraging faster flow of the water down the pipe.
  • They can be fitted to vertical downpipes at the edge of the retaining wall, or on a horizontal plane through the upstand or wall to then connect to the external downpipe.
  • The corner fitting includes a flange which is sandwiched between two layers of waterproofing membrane.
  • It is perforated with a series of holes around the profile to allow the membrane underneath to pass through the holes and give a secure bond when the second layer of membrane is installed above it.
  • There is a range of size options to accommodate varying pipe widths.
  • UV resistant.
  • Tough material.
  • Can be fitted on multiple outlets.
  • Manufactured with a perforated flange and bonded to the waterproofing membrane using the sandwich technique.
  • Apply one coat of waterproofing membrane and install the outlet.

General information

Color

Black

Finish

Matt

Material

Thermoplastic elastomer (TPE)

Shape

Circle

Rectangle

Square

Length

500 mm

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Width

Bespoke

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Height

500 mm

Manufacturer guidance

Refer to Technical Datasheets for detailed dimensions

Warranty description

15 year

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material

Thermoplastic elastomer (TPE); Compound of ethylene-propylene diene monomer (EPDM); Polypropylene.

Outlet pipe

Outlet pipe length: 500 mm.

Outlet pipe (diameter)

50 mm.

63 mm.

75 mm.

80 mm.

90 mm.

Show more

Couplings

Not required.

Required.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Thermoplastic elastomer (TPE)

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Datasheet - TPE 45° Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - TPE 45° Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - TPE 90° Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - TPE 90° Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - TPE Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - TPE Corner (Through Wall) Outlet Round Shank Perforated Flange

Datasheet - Flow Rates Corner (Through Wall) Outlet - 500mm Circular Shaft

Datasheet - Flow Rates Corner (Through Wall) Outlet - 500mm Circular Shaft
