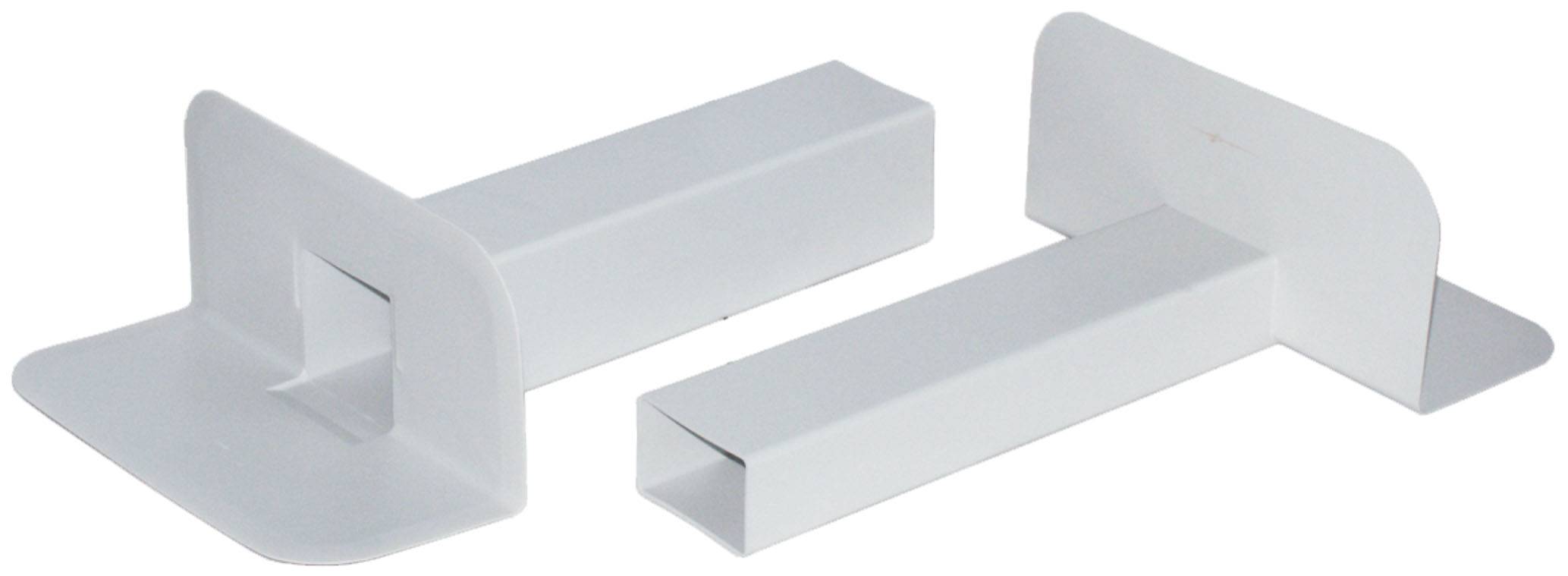

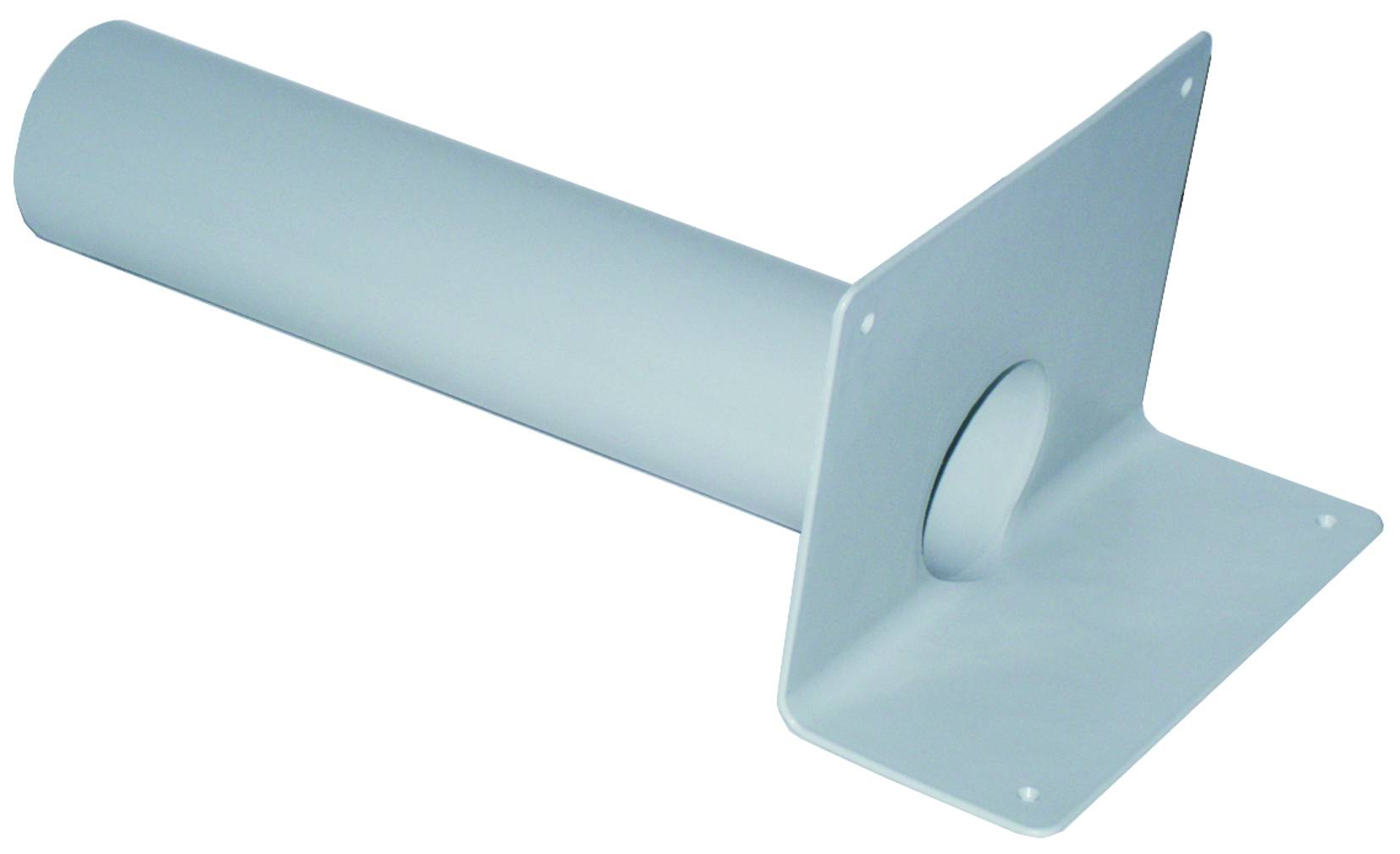

Outlet PVC Corner (Through Wall) - Round & Square Shank

Name: Outlet PVC Corner (Through Wall) - Round & Square Shank
Brand: Wallbarn Ltd
SKU: hUcR8jJ1V1KXqj28bVxbNH

Verified by manufacturer 24 days ago

Wallbarn Ltd

Third party certifications:

ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

PVC drainage outlets for corners and drainage holes next to parapets. Bonded to PVC waterproofing membranes only to improve waterproofing and protection. Varied sizes with square or round mouth.

Jump to:

BOS

+44 (0)20 8916 2222 Website

Application

PVC drainage outlets for through walls and drainage holes next to parapets. For use with PVC waterproofing membranes only. Multiple diameters and sizes available.

Description

PVC drainage outlets for corners and drainage holes next to parapets.

Features and benefits:

For use with PVC waterproofing membranes.
Manufactured with smooth flange.
Flexible PVC shape is inserted into drainage hole and bonded to the waterproofing membrane with hot air gun (do not use a direct flame).
Outlet shape is placed onto the PVC waterproofing and bonded using adhesive and / or mechanical fixings.
A patch of waterproofing is installed above the outlet flange and fully bonded completely over the top to ensure area is watertight. Drainage outlet is protected by having additional layer and fully sealed. A round or square leaf guard can be inserted into mouth of outlet once installed.
Always prime both the outlet shape and the waterproofing membrane before installation.
Can be fitted vertically or horizontally.
Tough and flexible connector.
UV resistant.

General information

Color	White
Finish	Matt
Material	Polyvinyl chloride (PVC)
Shape	Rectangle Other Circle Square
Length	500 mm Manufacturer guidance Multiple Lengths available. Enquire with Wallbarn.
Width	Bespoke 50 mm 63 mm 65 mm 75 mm 90 mm 100 mm 110 mm 125 mm Show more Manufacturer guidance Multiple widths available. Enquire with Wallbarn.
Height	Bespoke Manufacturer guidance Multiple heights available. Enquire with Wallbarn.
Warranty description	15 year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary

Product range	Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material	Polyvinyl chloride (PVC).

Sustainability data

Contains Red List materials	Yes Manufacturer guidance PVC roof outlets themselves are not specifically called out on the "Red List," but since they are made from polyvinyl chloride (PVC), they fall under the general advisement against using PVC in sustainable building practices. The Living Building Challenge, for instance, lists PVC as a Red List material due to its environmental and health impacts during production, use, and disposal. This includes the release of harmful chemicals and pollutants.
Country of material origin	Italy
Country of product manufacture	Italy
Material	Polyvinyl chloride (PVC)
Recyclability	yes Manufacturer guidance Polyvinyl chloride (PVC) is recyclable. PVC can be recycled through mechanical recycling processes, where the material is ground into small chips or pellets, which are then cleaned, processed, and remelted to form new PVC products.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
