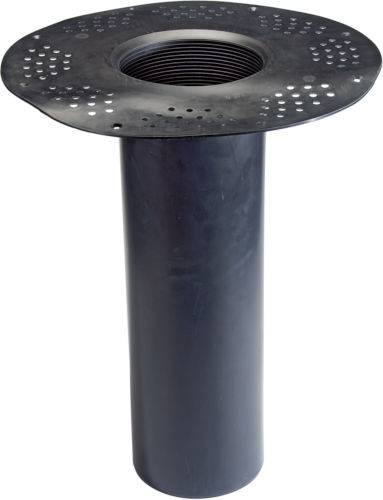

Outlet - TPE Circular Downpipe Outlet 240mm(L) & 600mm(L) - Perforated Flange

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

TPE circular drainage outlet with a perforated flange for downpipes on flat roofs for bonding to bitumen based waterproofing membranes in a sandwich technique. Shaft Length available in 240 & 600mm.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Tough, durable and flexible drain connector, used for downpipes and circular outlets on a roof or terrace within the main body of a concrete deck.

Description

Tough, durable and flexible drain connector, used for downpipes and circular outlets on a roof or terrace within the main body of a concrete deck.


Features and benefits:

  • It is suitable with SBS and APP bituminous membranes, including built-up felt, mastic asphalt, hot melt and other liquid applied membranes and consists of a pipe which is inserted into a hole to connect to the outlet drainage pipe and a flange which is sandwiched between two layers of waterproofing membrane.
  • The flange is perforated with a series of holes around the profile to allow the membrane underneath to pass through the holes and give a secure bond when the second layer of membrane is installed above it.
  • The pipe is manufactured in a slight cone shape to give easy installation and to prevent it from rising out of the hole.
  • There are also two rings on the exterior of the pipe, which help to ensure that no water can travel back up.
  • The drain connectors are designed to sit inside an HDPE outlet pipe with a snug fit and a range of size options are available in relation to the relevant outlet pipe size.
  • UV resistant.
  • Can withstand a temperature of up to 120°C.
  • Can be fitted on multiple outlets.
  • Tough flexible and durable material.
  • Manufactured with a perforated flange and bonded to the waterproofing membrane using the sandwich technique.

General information

Color

Black

Finish

Matt

Material

Thermoplastic elastomer (TPE)

Shape

Circle

Other

Length

240 mm

600 mm

Manufacturer guidance

This dimension refers to the length of the outlet shaft.

Width

40 mm

60 mm

75 mm

80 mm

90 mm

Show more

Manufacturer guidance

These dimensions refer to the size of the downpipe that these outlets fit into.

Height

240 mm

600 mm

Manufacturer guidance

This dimension refers to the length of the outlet shaft.

Warranty description

15 year

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material

TPE.

Integral accessories

None.

Gravel excluder.

Leaf guard.

Product Reference

TPE Drain Connectors and Outlets

Height

240 mm.

600 mm.

Guidance for specification option:

Where outlet pipes are passing through thick insulation or industrial roofing.

Outlet pipe (diameter)

40 mm.

Guidance for specification option:

Not available with 600 mm height.

60 mm.

Guidance for specification option:

Not available with 600 mm height.

75 mm.

Guidance for specification option:

Not available with 600 mm height.

80 mm.

90 mm.

Show more

Couplings

Not required.

To suit drainage outlet.

Materials

Thermoplastic elastomer (TPE); Compound of ethylene-propylene diene monomer (EPDM); Polypropylene.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Thermoplastic elastomer (TPE)

Recyclability

yes

Manufacturer guidance

The recycling of TPE involves grinding the material into pellets or granules, which can then be remelted and remolded into new products. However, the specific recycling process can vary depending on the exact type of TPE, as there are several different types, each with varying properties and chemical compositions.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

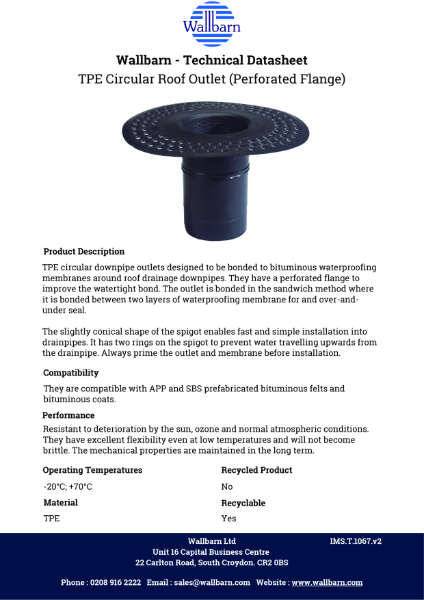

Datasheet - TPE Circular Roof Outlet Round Shank 240mm (L) (Perforated Flange)

Datasheet - TPE Circular Roof Outlet Round Shank 240mm (L) (Perforated Flange)

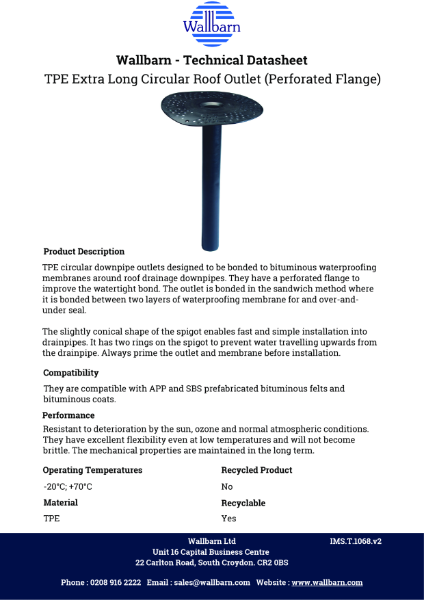

Datasheet - TPE Circular Roof Outlet Round Shank 600mm (L) (Perforated Flange)

Datasheet - TPE Circular Roof Outlet Round Shank 600mm (L) (Perforated Flange)

Datasheet - Flow Rates Circular Downpipe Outlet - 240mm Shaft

Datasheet - Flow Rates Circular Downpipe Outlet - 240mm Shaft
