Outlet - Metal & Polypropylene Universal Leaf & Gravel Excluder

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

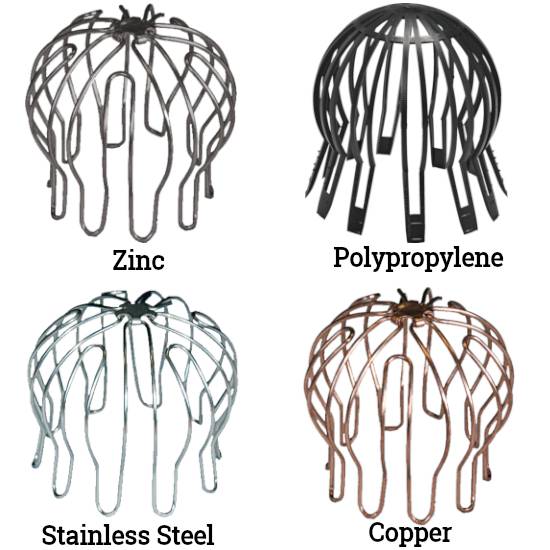

Universal metal and polypropylene leaf guards for insertion into downpipe drainage outlets. Suitable for EPDM, PVC, TPE and HDPE outlets. Available in polypropylene, zinc, copper and stainless steel.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Round leafguards for insertion into downpipe drainage outlets.

Suitable for EPDM, PVC, TPE and HDPE outlets.

Description

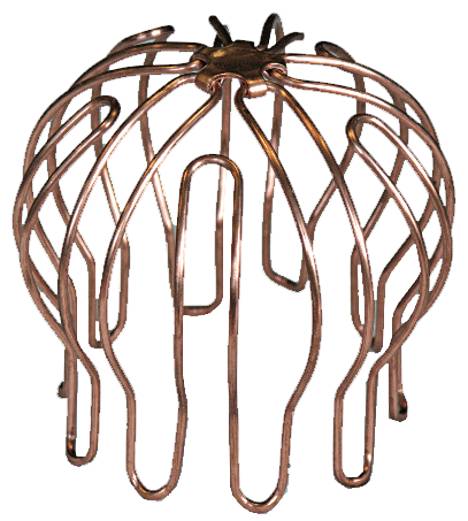

Round leaf guards for insertion into downpipe drainage outlets.


Features and benefits:

  • Suitable for EPDM, PVC, TPE and HDPE outlets.
  • Available in plastic, copper and stainless steel.
  • Spring-loaded dome shaped leaf guards are pressed into the mouth of the roof outlet.
  • The arms will grip the ridges on the inside spigots of the outlets to give a firm grip.
  • The pressure from rainwater will be downwards, holding the leaf guard in place securely.
  • Adhesive is not required.
  • Squeeze the sides of the lead guard to release it from the spigot.
  • UV resistant.
  • Reusable.
  • Can be fitted on multiple outlets.
  • 12 rods to grip onto drain connector or outlet.

General information

Color

Silver

Black

Copper

Finish

Matt

Copper

Zinc plated

Stainless steel

Material

Copper

Zinc

Stainless steel

Polypropylene

Shape

Circle

Length

140 mm

Width

140 mm

Height

165 mm

Warranty description

15 year

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

Product range

Green Roof - Modular, Rollout, Extensive and Intensive
Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Gravity rainwater outlets

Material

Copper.

Stainless steel.

Polypropylene.

Zinc-covered iron.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Copper

Zinc

Stainless steel

Polypropylene

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Expected Life

15 year

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Datasheet - Round Universal Leaf & Gravel Guard - Polypropylene

Datasheet - Round Universal Leaf & Gravel Guard - Polypropylene

Datasheet - Round Universal Leaf & Gravel Guard -Zinc-Copper-Stainless Steel-Zinc

Datasheet - Round Universal Leaf & Gravel Guard -Zinc-Copper-Stainless Steel-Zinc
