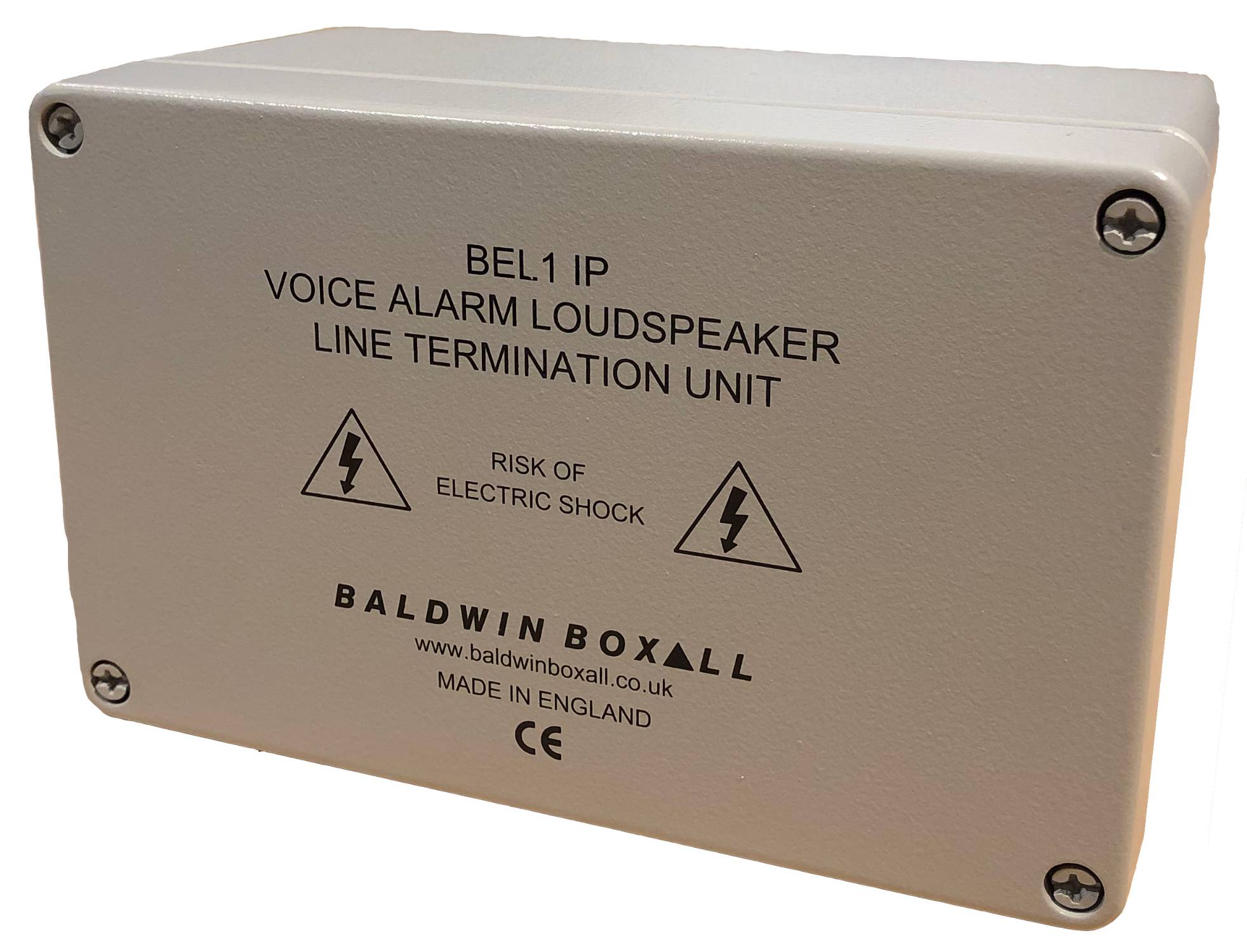

Monitoring End-of-Line (BEL1IP)
Verified by manufacturer 4 months ago
The BEL1IP is an IP65 rated active unit which is installed on each loudspeaker circuit. This can be used where moisture may be present, due to the Ingress Protection rating.
Application
Suitable for wet areas.
Description
Up to four BEL1IP units can be placed on one speaker run. The unit continually monitors the critical path signal of speaker lines for open, short circuit and earth faults. Any detected loudspeaker line faults are displayed on the voice alarm rack.
Features and benefits:
- Uses approximately three watts of power.
- Moisture resistant.
General information
Color | Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 97 mm |
Width | 80 mm |
Height | 157 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS EN 54 and BS 5839. |
Third party certification | CNBOP. |
Enclosure | |
Material | Steel. |
Finish | Powder coated. |
Colour | Grey. |
Ingress protection (minimum) | IP65. |
Mounting method | Surface. |
Depth | 40 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
