Mondéco Arctic System - Seamless Resin Terrazzo Flooring
Verified by manufacturer over a year ago
Seamless epoxy resin terrazzo floor finish with a white binder and light coloured aggregates, mirror glass and metallic particles.
Application
Suitable for bespoke environments where design aesthetics and durability are of paramount concern.
Description
A seamless epoxy resin terrazzo floor finish that utilises a white binder with a blend of light coloured aggregates, mirror glass and metallic particles.
Features and benefits:
- Aesthetically pleasing - enhances the working environment.
- Seamless finish (except for underlying slab joints and edging detail trim).
- Easy to clean and maintain.
- Abrasion resistant.
General information
Finish | Gloss |
Material | Resin Guidance for specification option: Epoxy. Aggregate Glass Guidance for specification option: Mirror. Metal Guidance for specification option: Metallic particles. |
Warranty description | Manufacturer guidanceTen to 20 years. |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |

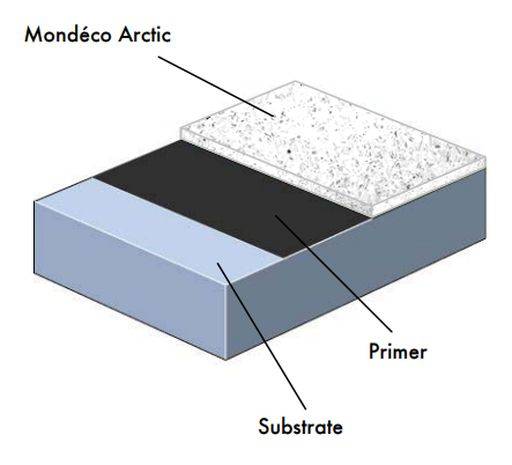

Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH. |
Preparation | Shot blast. |
Primer | Peran STC. |
Resin flooring | Mondeco Arctic (FeRFA type 8). |
Surface treatment | Flowseal PU Gloss (WB) and Enhance sealer coats. |
Execution | Apply by trowel. |
Bond strength | >2.0 N/mm². |
Certification | CE Marked. |
Colour options | Alaska. Glacier. Polar |
CompressiveStrength | >55 N/mm². |
Cure time | Light traffic: 16 hours, full traffic: 2 days, full chemical cure: 7 days. |
Flexural strength | >20 N/mm². |
Grout | TZ Pre-treatment grout (grout stage 1), Grout layer (grout stage 2). |
Impact resistance | 4 Nm. |
Slip resistance | Dry >40 low slip potential. |
TensileStrength | >10 N/mm². |
Water permeability | Nil. Guidance for specification option: Karsten test (impermeable). |
Wear resistance | Guidance for specification option: Maximum wear depth of <>. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
