Flowcoat EPN
Verified by manufacturer 9 months ago
Two-component Novolac epoxy resin coating system.
Application

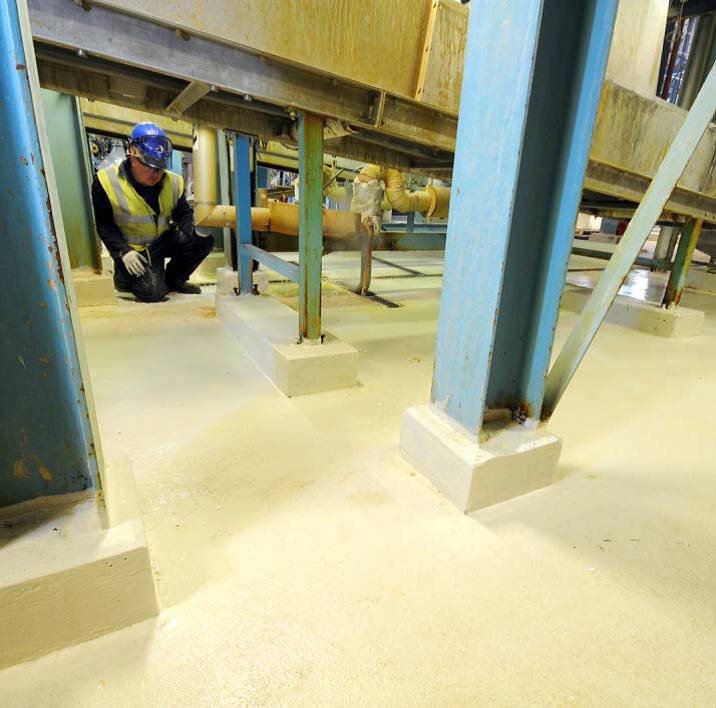

Suitable for secondary containment areas, concrete pads and pedestals, splash and spill areas, applications where high temperature, wear and chemical resistance properties are required. Recommended for use where high temperature, wear and chemical resistance properties are required.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A two-component Novolac epoxy resin coating system offering protection against a wide range of highly concentrated acids, bases and solvents. It is able to retain its mechanical properties at high temperatures and when exposed to wet conditions.
Features and benefits:
- Chemical resistance.
- Abrasion resistance.
- Seamless and hygienic finish.
- Low maintenance.
- Slip resistance.
- Nonylphenol-free.
General information
Color | Grey |
Finish | Gloss |
Material | Resin Guidance for specification option: Two-component Novolac epoxy. |
Warranty description | Two year |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% relative humidity (RH). |
Preparation | Shot blast. |
Levelling screed | Required.Not required. |
Primer | Flowprime.Guidance for specification option: porous substrates only. |
Resin flooring | Flowcoat EPN (FeRFA type 3). |
Surface treatment | Various grades of quartz, aluminium oxide, glass spheres or silicon carbide can be incorporated for a textured surface. |
Execution | Apply by roller. |
Bond strength | >3 N/mm². |
Certification | BS 8204-6. |
Cure time | 4–6 hours (Light traffic:), 1 day (full traffic), 7 days (full chemical cure). |
Flexural strength | 68 N/mm². |
Modules of elasticity | 6897 N/mm². |
Slip resistance | Dry >40 (low slip potential). |
Hardness | 85–90 Shore D. |
TensileStrength | 27 N/mm². |
Thickness | 0.6 mm. |
Wear resistance | 0.12 g max, weight loss. Guidance for specification option: CS-17 wheel. |
