Flowcoat LXP System
Verified by manufacturer over a year ago
Two-component, solvent free, flexible, coloured polyurethane-based floor coating applied in a thin layer.
Application

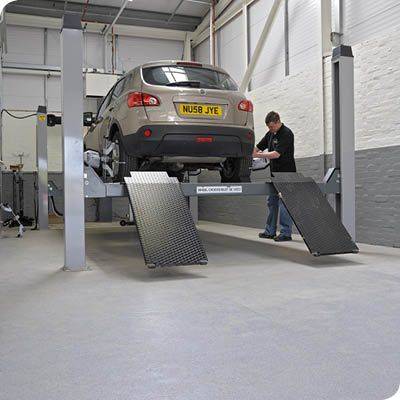

Typically applied as a roller coating, in light to medium duty processing, manufacturing and warehousing areas. For application over asphalt, wood, steel and concrete.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description

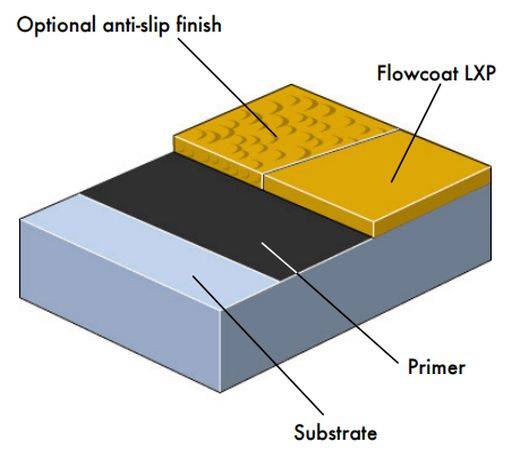

A two-component, solvent free, flexible, coloured polyurethane-based floor coating applied in a thin layer. This is a self-smoothing product that can be used on concrete, steel and asphalt surfaces where a flexible coating is required.
Features and benefits:
- Chemical resistant.
- Flexible application.
- Low odour.
- Slip resistant.
- Solvent free.
- Easy to sterilise.
- Seamless.
- FeRFA Type 3.
General information
Color | Brown Green Grey Red |
Finish | Gloss |
Material | Polyurethane |
Warranty description | Manufacturer guidanceTwo to Five years. |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH, or 5% by weight. |
Preparation | Shot blast. |
Levelling screed | Guidance for specification option: If required. |
Primer | Flowprime LXP.Guidance for specification option: (concrete or wood). Peran Primer W.Guidance for specification option: (steel). |
Resin flooring | Flowcoat LXP (FeRFA Type 3). |
Surface treatment | Optional anti-slip coating. |
Certification | CE Marked. |
Colour options | Beige 326. Dark Grey 281. Forest Green 754. Goosewing Grey 222. Mid Grey 280. |
Cure time | Light traffic: 24 hours, Full traffic: 2 days, Full chemical cure: 7 days. |
Finish options | Gloss. |
Flexural strength | >15 MPa. |
Impact resistance | 13 Nm. |
Slip resistance | Dry >40 low slip potential. |
Hardness | 65. Guidance for specification option: (Shore D). |
TensileStrength | >10 MPa. |
Thickness options | 0.7 mm. |
Toxicity | Taint free to sensitive foodstuffs. |
Uses | Process, manufacturing, packaging and warehousing areas subject to heavy foot and pallet truck traffic. |
Water permeability | 0.001 kg/m² x h^(0.5). |
Wear resistance | 100 mg loss (abrasion) to EN ISO 5470-1. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
