Flowchem VE HD System
Verified by manufacturer over a year ago
A heavy duty, horizontal and vertical trowel applied shrinkage compensated vinyl ester resin-based screed system.
Application
Suitable for the protection of concrete floors and bunds against aggressive chemicals, solvents, and thermal attack in medium duty areas.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A heavy duty, horizontal (5-15 mm) and vertical (5 mm) shrinkage compensated vinyl ester resin based screed system with chemical and mechanical resistance. The product protects concrete floors, walls and bunds against aggressive chemicals, solvents and thermal attack.
Features and benefits:
- Chemical resistant.
- Fast cure.
- Temperature resistant.
- Abrasion resistant.
- Trowel applied.
General information
Color | Red Grey Green |
Finish | Satin Matt |
Material | Resin |
Warranty description | Ten year |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH, or 5% by weight. |
Preparation | Shot blast. |
Levelling screed | Guidance for specification option: If required. |

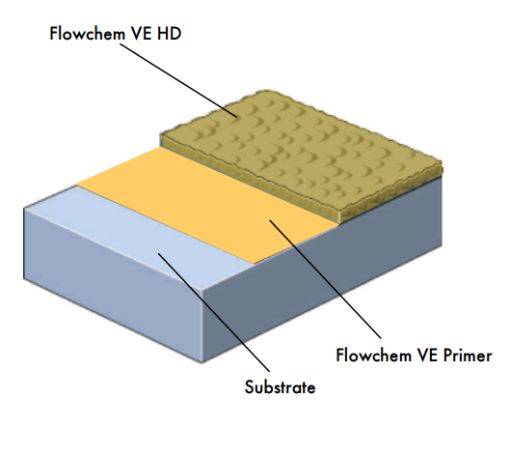

Primer | Flowchem VE primer. |
Resin flooring | Flowchem VE HD. |
Reinforcement | Glass fibre mesh. |
Surface treatment | Flowchem VE Topcoat additive to produce satin matt finish. |
Execution | Apply by trowel. |
Barcol hardness | >40. |
Bond strength | >4 Mpa. Guidance for specification option: (to substrate failure). |
Colour options | Dark Grey (RAL 7046). Green (RAL 6002). Light Grey (RAL 7035). Red (RAL 3009). |
CompressiveStrength | 120 MPa. |
Cure time | Light traffic: 12 hours, Full traffic: 1 day, Full chemical cure: 7 days. |
Density | 2. |
Finish options | Satin matt. |
Flexural strength | 42 MPa. |
Modules of elasticity | 24 GPa. |
Slip resistance | Dry >40 low slip potential. |
Temperature resistance | ≤160°C. |
TensileStrength | 23 MPa. |
Thickness options | 5–15 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 3 |
