Louvre and Plenum: Mechanical Intake or Extract - Integrated Ventilation Solutions

Name: Louvre and Plenum: Mechanical Intake or Extract - Integrated Ventilation Solutions
Brand: Renson Fabrications Ltd
SKU: gpyJPQ8ojJZBHUwj6sHMSo

Verified by manufacturer 2 months ago

Renson Fabrications Ltd

Third party certifications:

BSRIA Certificate
Certificate type

A combined louvre and plenum solution. Fully BSRIA tested.

Jump to:

+44 (0)1622 754123 Website

Application

The IVS interfaces with the external facade via the curtain walling or window, and mechanical connections.

Description

A combined louvre and plenum solution. It is delivered to site connected and fully sealed to avoid any air and water leakage issues.

Features and benefits:

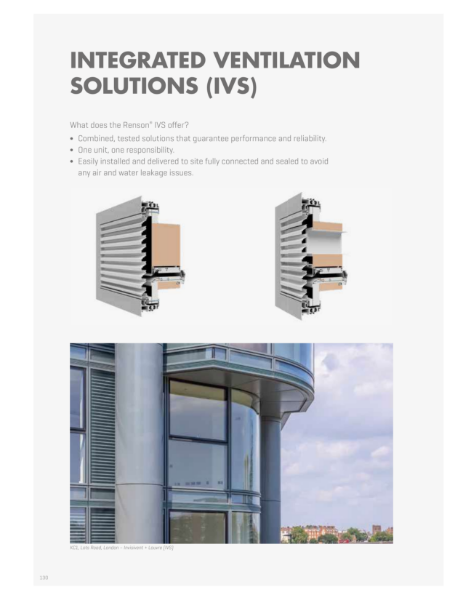

Integrated ventilation solution (IVS).
Combined louvre and plenum solution.
An easily installed, fully costed and tested solution.
High performance and reliability.
One unit, one responsibility.

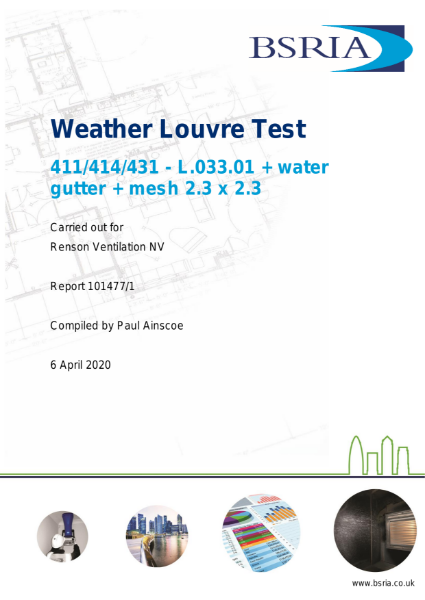

Combined unit achieved 99% weatherability at face of velocity of 2 m/s (Class A) when tested by BSRIA.
Louvre fully tested to EN 13030: 2011.
Invisivent fully tested to EN 13141-1 and EN ISO 10140-2.

This is a bespoke product. Please contact the Renson's specification team for more information; spec@rensonuk.net or 01622 754123.

General information

Color	Other
Finish	Anodized Polished Mill
Material	Aluminium
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary Pr_70_65_04_04 Air plenum boxes
CAWS	H11/437 Louvres H11/140 Louvres L10/650 Metal louvres L10/54 Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	- Manufacturer guidance Bespoke - consult manufacturer and insert requirements.
Material	Aluminium (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 25 microns. Powder coated. Guidance for specification option: Layer thickness: 60 microns. Consult manufacturer and insert requirements.
Colour	- Manufacturer guidance Consult manufacturer and insert requirements.
Texture	- Manufacturer guidance Consult manufacturer and insert requirements.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A.
Discharge loss coefficient (minimum)	To BS EN 13030, Class 1. Guidance for specification option: Co-efficient (entry) – 0.155. Co-efficient (discharge) – 0.157.
Louvre configuration	-
Number of banks	- Manufacturer guidance Consult manufacturer and insert requirements.
Blade orientation	- Manufacturer guidance Consult manufacturer and insert requirements.
Blade pitch	- Manufacturer guidance Consult manufacturer and insert requirements.
Blade angle	- Manufacturer guidance Consult manufacturer and insert requirements.
Accessories	- Manufacturer guidance Consult manufacturer and insert requirements.

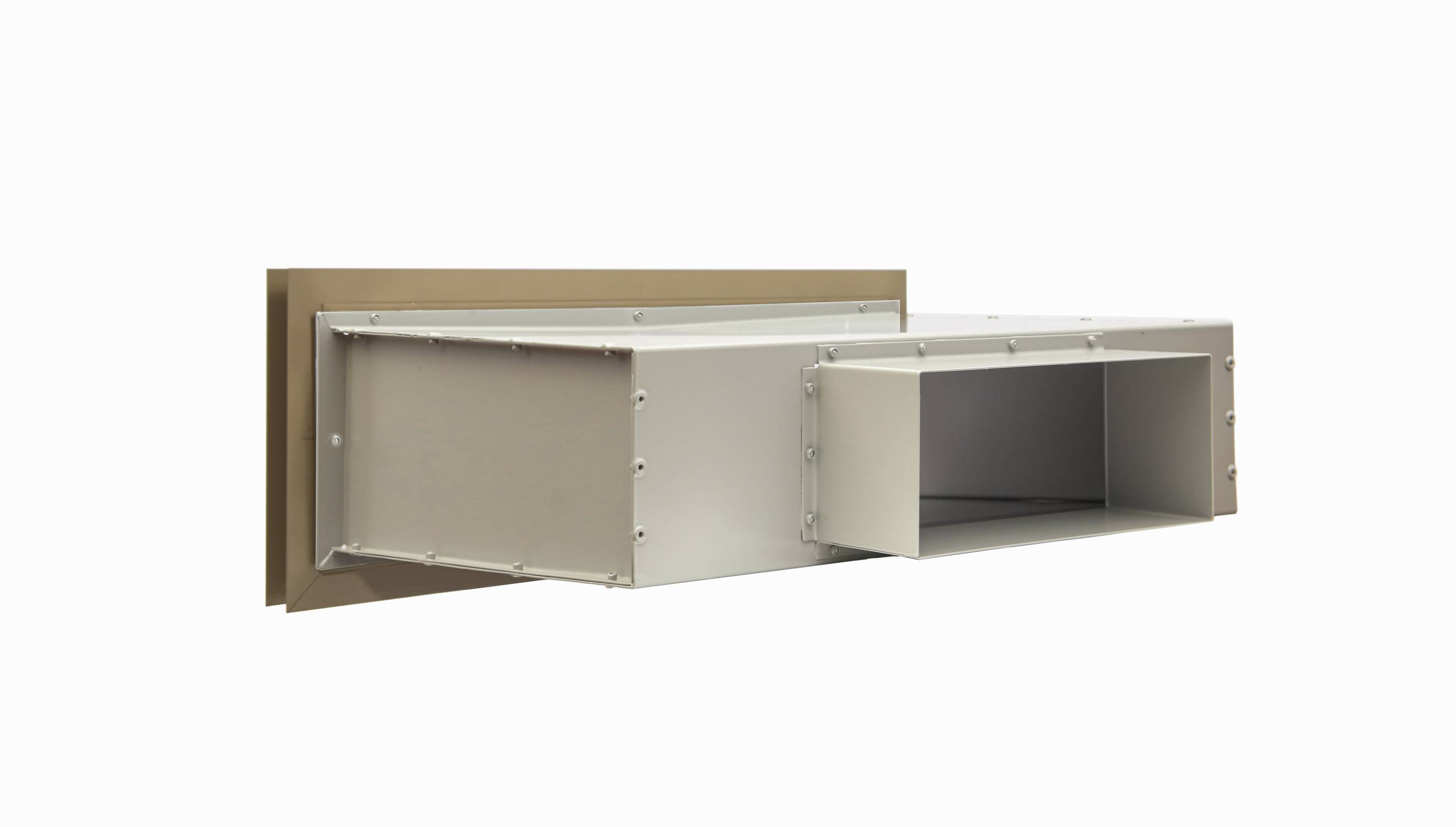

Unit	Louvre and plenum: mechanical intake or extract unit. Manufacturer guidance Combined unit.
Air flow	K Factor (entry) – 41.62. K Factor (discharge) – 40.57.

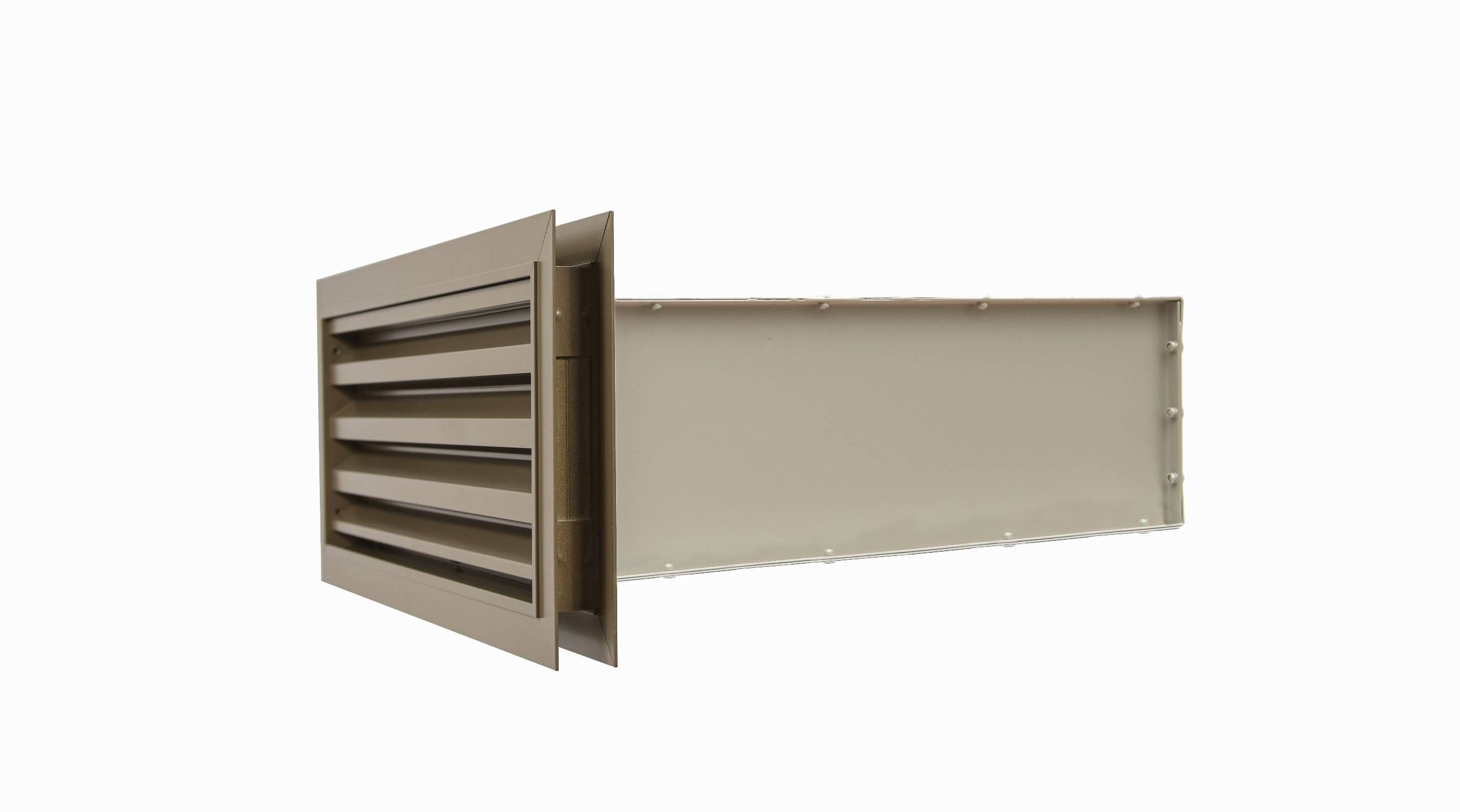

Louvre	Renson® Louvre. Guidance for specification option: Fully tested to EN 13030: 2011. Manufactured from extruded aluminium. 50% free area. Class A weather protection. Glazed-in or continuous louvre options available. Fully insulated backing panel. Consult manufacturer's literature and insert requirements.
Plenum box	Plenum, mechanical intake or extract. Guidance for specification option: Can be fully insulated using Class A fire-rated insulation. Consult manufacturer's literature and insert requirements.
