Louvre and Invisivent - Integrated Ventilation Solutions

Verified by manufacturer 1 month ago

Renson Fabrications Ltd

Integrated ventilation solution enabling the integration of an external louvre with a window vent.

Jump to:
+44 (0)1622 754123 Website

Application

The IVS interfaces with the external facade via the curtain walling or window, and mechanical connections.

Description

The Invisivent provides the essential airflow and the acoustic protection of 48 dB Dn,e,w sound reduction. In front of the Invisivent, a Renson® louvre is used for weather protection and aesthetics.


Features and benefits:

  • Integrated ventilation solution (IVS).
  • Integrated external louvre and invisivent window ventilation.
  • Louvre is used for weather protection and aesthetics.
  • High performance and reliability.


Depending on the project, Renson® can design an extrusion to fit your application.

General information

Color

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Shape

Other

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
Pr_30_59_57_58 Overhead ventilators

CAWS

H11/437 Louvres

H11/140 Louvres

L10/650 Metal louvres

L10/54 Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)

-

Manufacturer guidance

Bespoke - consult manufacturer and insert requirements.

Material

Aluminium.

Finish

Anodized.

Powder-coated.

Guidance for specification option:

Consult manufacturer and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Texture

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030, Class A.

Louvre configuration

-

Number of banks

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade orientation

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade pitch

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade angle

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Unit

Aluminium louvre and integral Invisivent.

Manufacturer guidance

Combined unit.

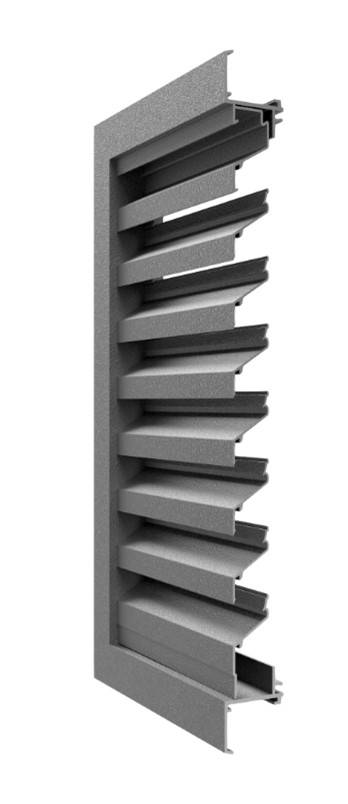

Louvre

Renson® Louvre.

Guidance for specification option:

  • Fully tested to EN 13030: 2011.
  • Manufactured from extruded aluminium.
  • 50% free area.
  • Class A weather protection.
  • Glazed-in or continuous louvre options available.
  • Fully insulated backing panel.
  • Consult manufacturer's literature and insert requirements.

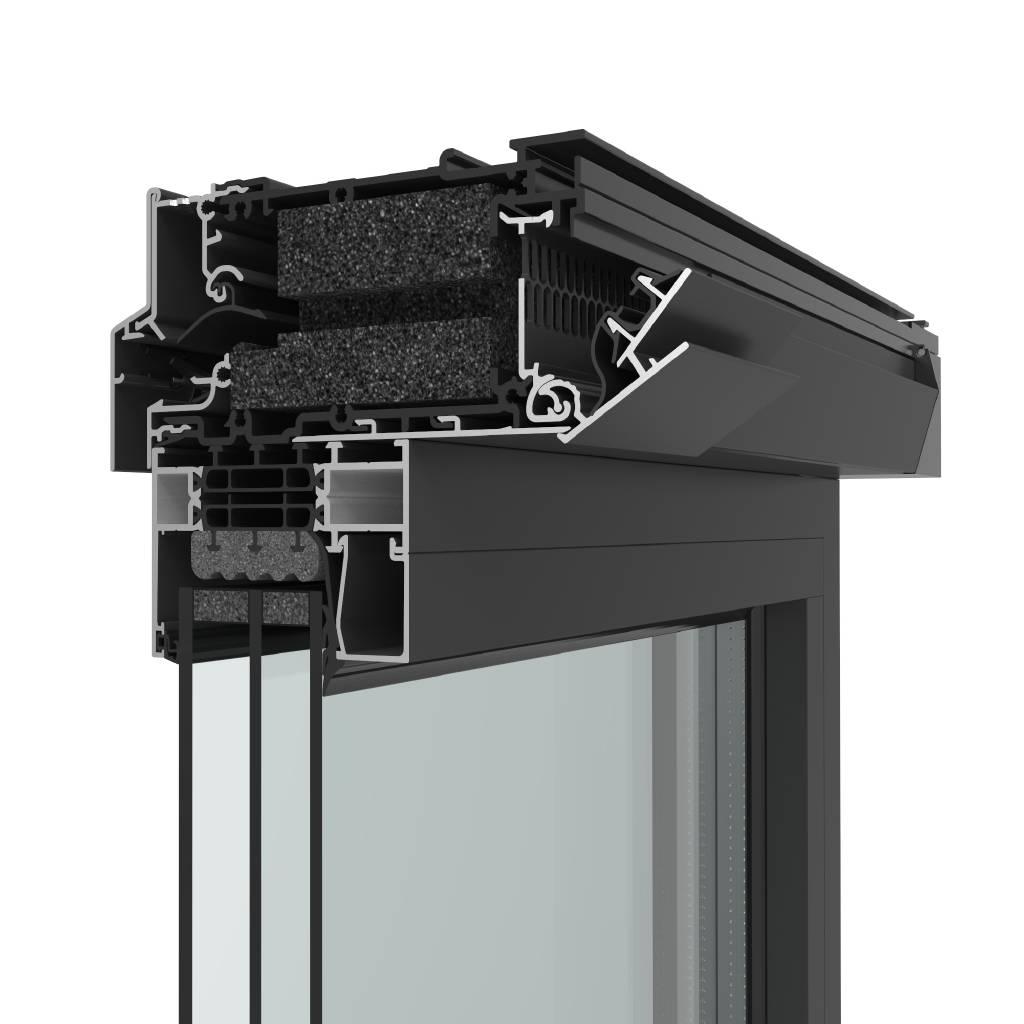

Vent

Invisivent window vent.

Guidance for specification option:

  • Fully tested to EN 13141-1 and EN ISO 10140-2.
  • Equivalent areas up to 13479 mm²/m.
  • Sound reduction up to 48 dB.
  • Self-regulating flap to prevent draughts.
  • Consult manufacturer's literature and insert requirements.

Sound reduction

48 dB.

Manufacturer guidance

Invisivent.

Sustainability data

Country of material origin

Belgium

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Literature

Louvre and Invisivent

Louvre and Invisivent

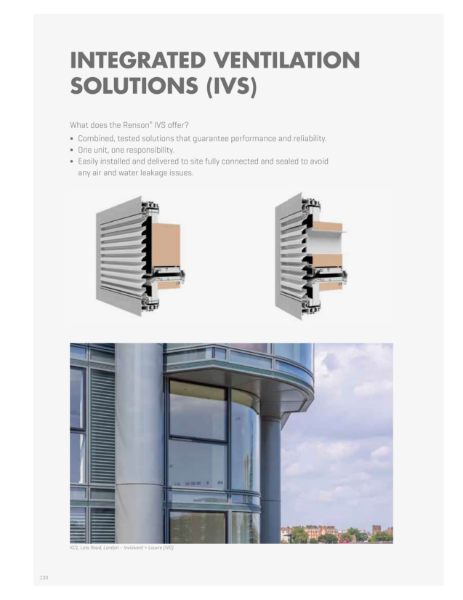

Renson® UK & IE Integrated Ventilation Solutions (IVS)

Renson® UK & IE Integrated Ventilation Solutions (IVS)

Case studies

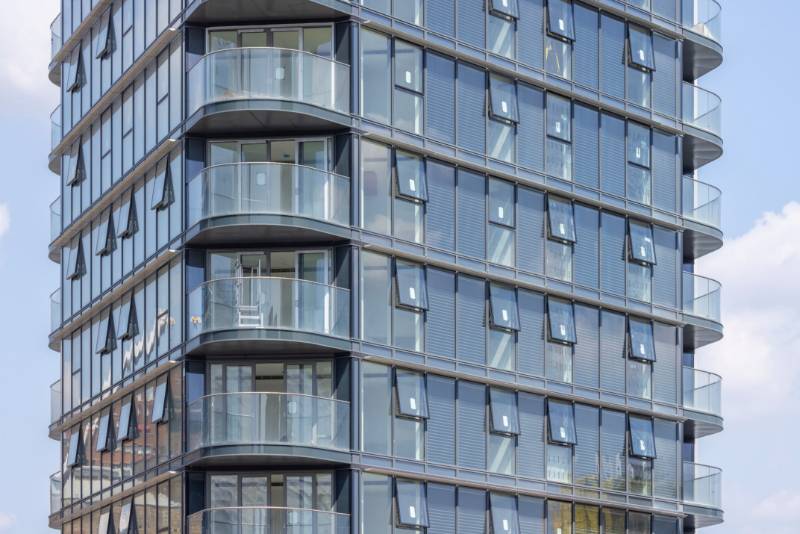

KC1 - LOTS ROAD
