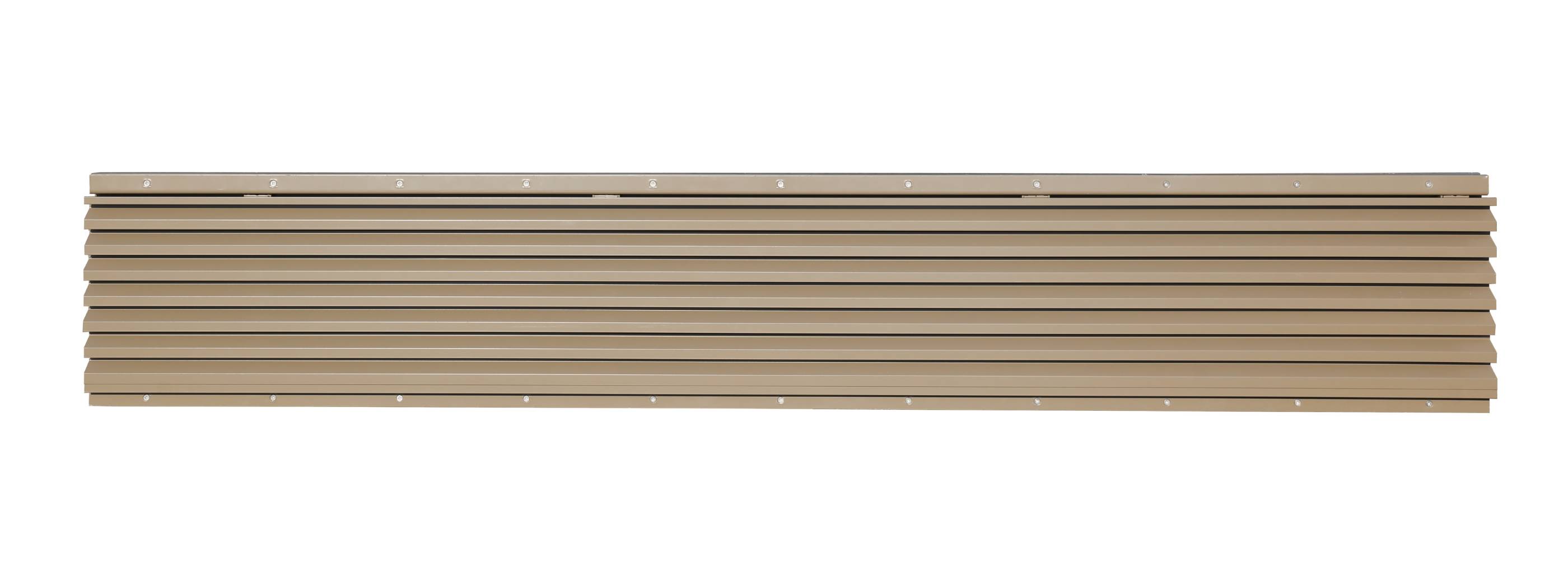

Louvre and Invisivent: Integrated Unit for Inlet and Mechanical Extract - Integrated Ventilation Solutions

Verified by manufacturer 24 days ago

Renson Fabrications Ltd

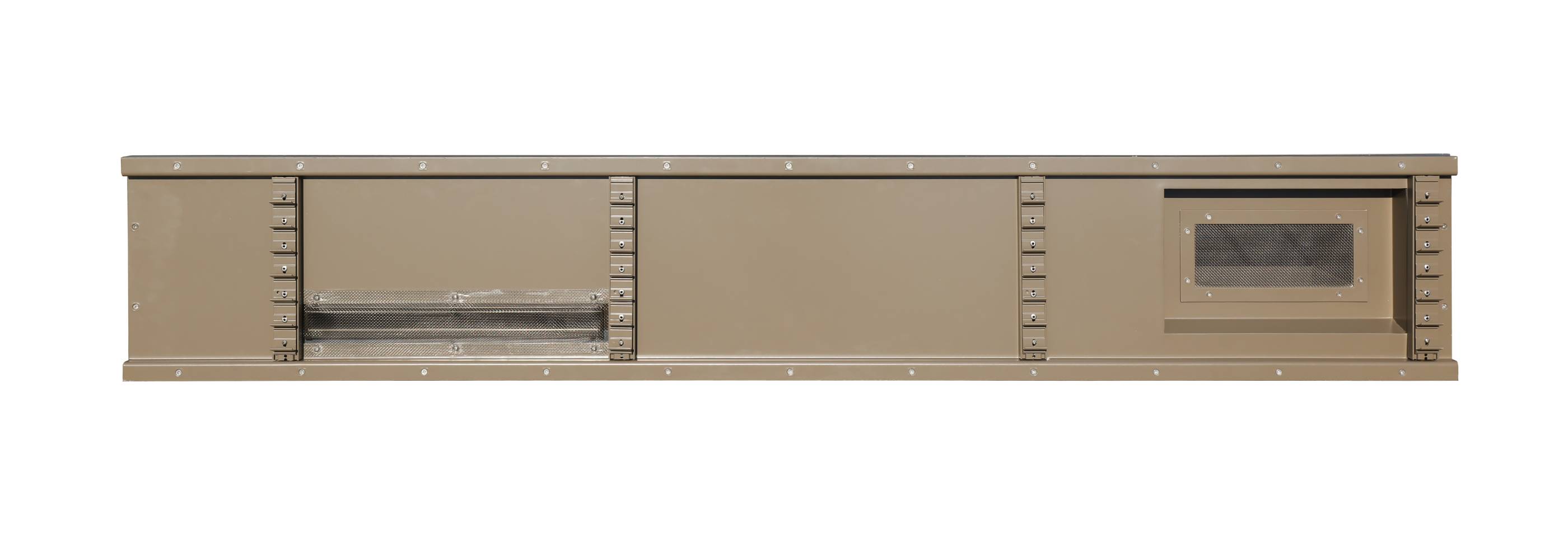

A combined inlet and extract unit with acoustic inlet ventilator and extract duct spigot.

Jump to:
+44 (0)1622 754123 Website

Application

The IVS interfaces with the external facade via the curtain walling or window, and mechanical connections for inlet and extract.

Description

A combined inlet and extract unit with acoustic inlet ventilator and extract duct spigot.


Features and benefits:

  • Integrated ventilation solution (IVS).
  • Cross-contamination of inlet/ extract air is prevented through utilising closed blades and separator.
  • Sound reduction up to 48 dB.
  • Class A weather protection.
  • One unit, one responsibility.
  • Delivered to site fully connected and sealed to avoid any air and water leakage issues.
  • Louvre fully tested to EN 13030: 2011.
  • Invisivent fully tested to EN 13141-1 and EN ISO 10140-2.

General information

Color

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Renson® offers a 25 year paint guarantee on all UK produced products. Further details available on request.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
Pr_30_59_96_92 Ventilation ducts

CAWS

L10/54 Louvres

L10/650 Metal louvres

F30/171 Ventilation ducts in external walling

F30/17 Ventilation ducts in external walling

Specification data - Aluminium louvre panel units

Size (l x w x d)

-

Manufacturer guidance

Bespoke - consult manufacturer and insert requirements.

Material

Aluminium.

Finish

Anodized.

Powder coated.

Guidance for specification option:

Consult manufacturer and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Texture

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030, Class A.

Louvre configuration

-

Number of banks

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade orientation

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade pitch

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blade angle

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Unit

Louvre and Invisivent, integrated unit for inlet and mechanical extract.

Guidance for specification option:

  • Sound reduction up to 48 dB.
  • Class A weather protection.
  • Consult manufacturer and insert requirements.

Louvre

Renson® Louvre.

Guidance for specification option:

  • Fully tested to EN 13030: 2011.
  • Manufactured from extruded aluminium
  • 50% free area.
  • Class A weather protection.
  • Glazed-in or continuous louvre options available.
  • Fully insulated backing panel.

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Vent

Invisivent.

Guidance for specification option:

  • Fully tested to EN 13141-1 and EN ISO 10140-2.
  • Equivalent areas up to 13479 mm²/m.
  • Sound reduction up to 48 dB.
  • Self-regulating flap to prevent draughts.

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Sustainability data

Country of material origin

Belgium

Country of product manufacture

United Kingdom

Recyclability

100% recyclable aluminium

Literature

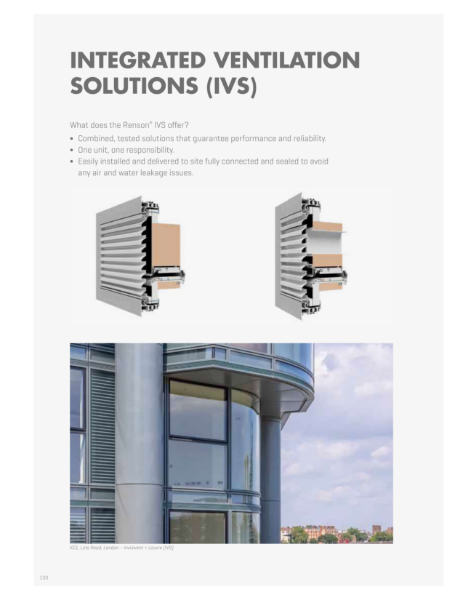

Louvre and Invisivent_Integrated Unit for Inlet and Mechanical Extract
