Verified by manufacturer 3 months ago
GLV11-INS95 Tubular

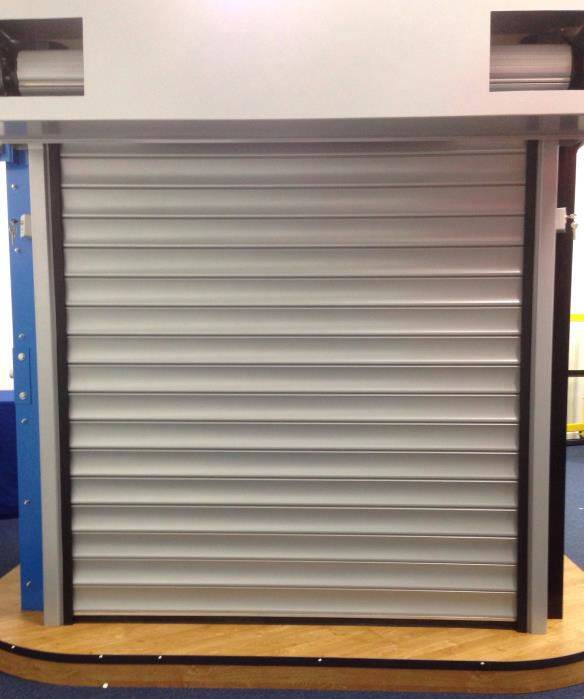

Insulated steel roller shutter designed to operate quieter than traditional models.
High security commercial sites requiring large aperture coverage and improved insulation properties from the shutter. Suitable for rapid rise/ fast action opening and closing when in conjunction with frequency inverted motor and appropriate sensory peripherals, including:
Insulated roller shutter model that moves almost silently and eradicates the old rattling noises that roller shutters traditionally make. It is made from double skinned polyester powder coated 95 mm slat with a polyurethane foam insulating core ensuring high levels of insulation which keep energy costs down whilst also performing well at keeping the sound out.
Features and benefits:
Finish | Powder-coated Guidance for specification option: Polyester powder coated. |
Material | Steel |
Shape | Rectangle |
Warranty description | One year Guidance for specification option: On electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Format | Sound proofed. |
Arrangement | Vertical. |
Performance | |
Resistance to wind load | Class 2. |
Shutter curtain. | |
Lath material | Double skinned polyester powder coated with polyurethane foam insulating core.Guidance for specification option: 95 mm slat. |
Profile | Curved. |
Finish and colour | Galvanized.Guidance for specification option: As standard. Plastisol.Guidance for specification option: Additional cost. Powder coated.Guidance for specification option: Additional cost. |
Frame and guides | |
Material | Steel. |
Finish | Polyester powder coating. |
Colour | Galvanized.Guidance for specification option: As standard. Plastisol.Guidance for specification option: Additional cost. Powder coated.Guidance for specification option: Additional cost. |
Operation | |
Mode | Automatic, single-phase tubular motor.Manufacturer guidanceManual override facility as standard. |
Control | Push button.Rocker switch.Key switch.Remote control.Smart phone.Automated.Other.Guidance for specification option: UK Roller Shutters Ltd can access anyone's systems for operation. |
Battery back-up | Not required. Required. |
Dimensions | 2195 x 355 mm. 3250 x 400 mm. 4000 x 450 mm. 3250 x 400 mm. 4000 x 450 mm. Manufacturer guidanceBox dimensions: guide height x box size. |
Height | 95 mm. Manufacturer guidanceShutter curtain. |
Weight | 12.8 kg/m². Manufacturer guidanceShutter curtain. |
Width (maximum) | 7000 mm. Manufacturer guidanceShutter curtain. |
Surface | 20 m². Manufacturer guidanceShutter curtain maximum surface. |
U-value | 1.1 W/m²K. Manufacturer guidanceSlat U-Value. |
Bottom slat | Galvanised steel powder coated bottom slat with EPDM weather seal. |
Guide channel | 80 mm. Guidance for specification option: As standard. Manufacturer guidanceGuide channel width. |
Country of product manufacture | United Kingdom |
