ALU-12E77 High Security Aluminium Roller Shutter - Roller Shutter

Verified by manufacturer 5 months ago

ALU-12E77 Electric

UK Roller Shutters Ltd Variant:

Aluminium double skinned polyester powder coated shutter.

Jump to:
+44 (0)1384 221743 Website

Application

High security commercial sites & shop front applications, up to 25 m². Suitable for:

  • Offices.
  • Bars.
  • Display areas.
  • Shop fronts.
  • Domestic properties.
  • Garage doors.
  • Larger openings with low headroom.

Description

Aluminium roller shutter that combines strength with aesthetics. Made from 77 mm extruded aluminium, the shutter is larger than the ALU-1237 and can be upgraded to LPS1175 Security Level 2. The shutters can be programmed to run off a variety of control methods.


If insulation and sound reduction are more important, the ALU-12T77 model may be more appropriate.


Features and benefits:

  • Can be upgraded to Secured by Design approved, LPS1175 SR2.
  • Offers medium to high security.
  • More lightweight than a steel shutter meaning less strain will be caused on the motor when operating.
  • Powder coated white or brown as standard, but can be powder coated to any standard RAL/BS colour.
  • Punched (ALU-12PU) or perforated (ALU-12PE) profile slats can be incorporated as required for full or partial vision for an additional charge.
  • Fully CE marked.
  • Protection against crushing, shearing or drawing in.

General information

Color

Brown

White

Other

Guidance for specification option:

Can be powder coated to any standard RAL/BS colour on request.

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated.

Enamelled

Guidance for specification option:

Stove-enameled - Enclosure.

Material

Aluminium

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Arrangement

Horizontal.

Guidance for specification option:

Horizontal extruded aluminium laths with inbuilt shutter boxes concealed within the wall makeup.

Performance

-

Resistance to wind load

Class 2.

Shutter curtain.

-

Lath material

Aluminium.

Profile

Solid.

Punched.

Punched with polycarbonate inserts.

Perforated.

Perforated with polycarbonate inserts.

Manufacturer guidance

Lath design.

Finish and colour

Polyester powder coated, brown.

Guidance for specification option:

Standard.

Polyester powder coated, white.

Guidance for specification option:

Standard.

Polyester powder coated, RAL/BS colour.

Guidance for specification option:

Extra charge.

Frame and guides

-

Material

Aluminium.

Guidance for specification option:

Roll formed aluminium.

Finish

Stove-enameled.

Colour

Brown.

White.

RAL/BS colour.

Guidance for specification option:

Standard RAL/BS colours available on request.

Operation

-

Mode

Automatic, single-phase tubular motor.

Guidance for specification option:

With wall switch as standard.

Automatic, 3-phase outboard motor.

Guidance for specification option:

Motor type depends on usage per m².

Control

Key switch.

Radio/remote control.

Rocker switch.

Timer closing.

Loop and radar operation.

Smart phone.

Swipe card activation.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Manufacturer guidance

Not all options are available on all size shutters.

Slat material

Double-skinned extruded aluminium.

Manufacturer guidance

Curtain slat material.

Blind

77 mm.

Manufacturer guidance

Curtain slat blind surface.

Weight

8.5 kg/m².

Manufacturer guidance

Curtain slat weight.

Width

6500 mm.

Manufacturer guidance

Curtain slat maximum width.

Surface

25 m².

Manufacturer guidance

Curtain slat maximum surface.

U-value

1.5 W/m²K.

Manufacturer guidance

Curtain slat.

Guide channels depth

70 mm.

90 mm.

150 mm.

Material

Extruded aluminium with weather seal.

Manufacturer guidance

Guide channels/ bottom slat material.

End caps

Pressure moulded aluminium alloy.

Dimensions

2700 x 300 mm.

4000 x 360 mm.

5000 x 400 mm.

Manufacturer guidance

Enclosure dimensions: shutter height x box size (up to mm).

Sustainability data

Country of product manufacture

United Kingdom

Literature

ALU-12E77 Brochure

ALU-12E77 Brochure

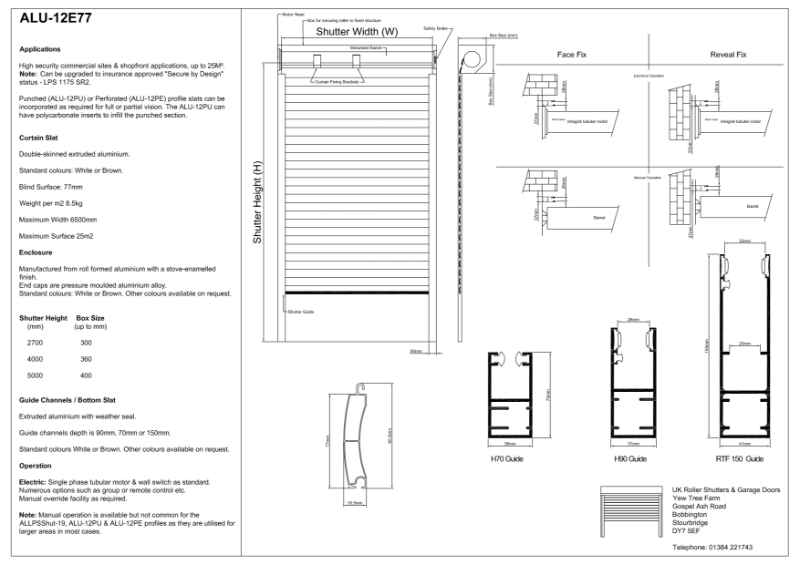

ALU-12E77 Drawings Datasheet
