FR-INS4H Twin Skin Fire Roller Shutters - Roller Shutter
Verified by manufacturer 4 months ago

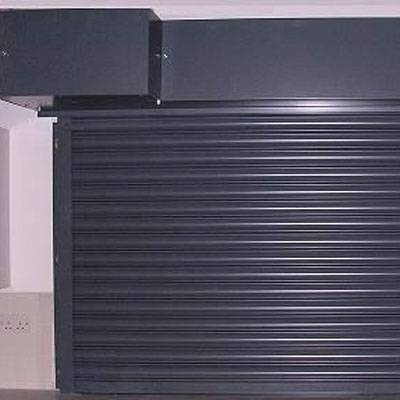

Twin skin insulated fire shutters, with sound reduction qualities.
Application
Suitable uses:
- Warehouses.
- Factories.
- Hospitals.
- Large commercial buildings.
- Airports.
- Canteens.
- Restaurants.
Description
Unlike single skin fire shutters, this model provides radiant heat protection. Due to the construction of the shutters, the radiant heat levels around the roller shutter door drop from 65 kW/m² to 2.7 kW/m². This means that even combustible materials can be stored half a metre away from a 1200°C inferno – handy if floor space is an issue. Fire crews can safely tackle the blaze right next to the door and anyone unfortunate enough to be trapped without an immediate exit can safely walk past the roller shutter.
Features and benefits:
- Provides radiant heat protection.
- Tested up to 240 minutes of fire protection.
- Fully CE marked.
- Protection against crushing, shearing or drawing in.
General information
Color | Grey Guidance for specification option: Curtain - self-finished light grey. Black Guidance for specification option: Perimeter intumescent seal. Other Guidance for specification option: Polyester powder coated in a range of standard RAL colours' for an extra charge. |
Finish | Galvanized Guidance for specification option: Pre-galvanized. |
Material | Steel |
Warranty description | One year Guidance for specification option: On electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Format | Thermally insulated. |
Arrangement | Vertical. |
Performance | |
Resistance to wind load | Class 2. |
Shutter curtain. | |
Lath material | Synthetic outer skin bonded to high performance insulation inner core.Guidance for specification option: Stainless steel cables connect the laths together and are fastened to the roller at the head. |
Profile | Curved. |
Finish and colour | Self-finished light grey.Guidance for specification option: As standard. Polyester powder coated, RAL colour.Guidance for specification option: A range of standard RAL colours for an additional cost. |
Frame and guides | |
Material | Galvanized steel.Guidance for specification option: Shaped into a channel profile which is prepared for bolting to the structure by means of continuous fixing angles. |
Finish | Self-finished. |
Colour | Self-colour. |
Operation | |
Mode | Automatic, single-phase tubular motor.Guidance for specification option: A controlled descent comes as an inbuilt safety feature. Automatic, 3-phase outboard motor.Guidance for specification option: Depends on usage m². Manufacturer guidanceIn the event of a power loss, manual operation can be attained. |
Control | Rocker switch.Key switch.Remote control.Smart phone.Automated.Other.Guidance for specification option: UK Roller Shutters Ltd can access anyone's systems for operation. |

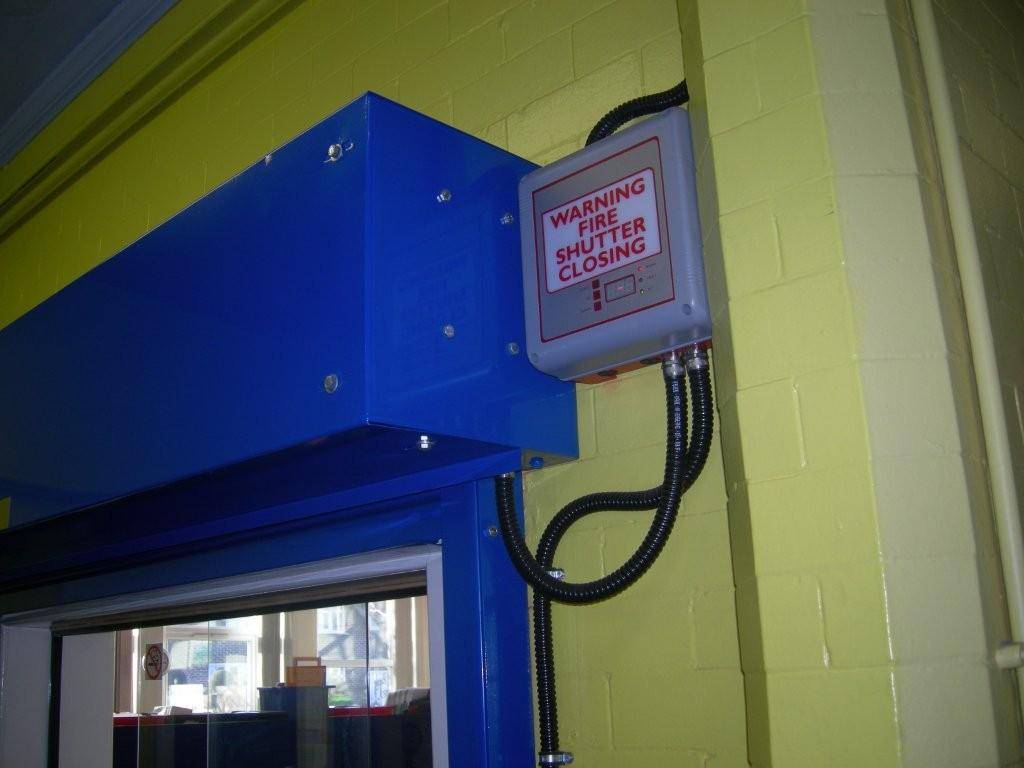

Fire panel | FCP A-Spec. Guidance for specification option: Will wire into the fire alarm and either go up or down when the alarm is triggered. There are also lights and a warning alarm signalling the imminent descent of the shutter. This control panel can be set on a delay. Comes with an emergency mushroom push button which can be pressed to temporarily send the shutter back up. Shutter will come back down after a delay. F-Mate. Guidance for specification option: Will wire into the alarm and simply send the shutter up or down when alarm is triggered using a normally open, volt free signal. SF-01NRG. Guidance for specification option: Will wire into the fire alarm and either go up or down when the alarm is triggered. There are also lights and a 90 dB warning alarm signalling the imminent descent of the shutter. This control panel can be set on a delay. |
Sound reduction | 21 dB. |
Fire integrity | To BS EN 476-22, 240 minutes. |
Hood/ fascia | Not required. Galvanised steel hood. Guidance for specification option: Can be supplied to cover the coiled shutter and motor. |
Intumescent seals | Black. Guidance for specification option: As standard. Manufacturer guidancePerimeter intumescent seal. |
Bottom rail design | Standard lath fitted with an extruded PVC bottom seal. |
End plates | Galvanized steel. Guidance for specification option: Thickness relative to door size and supplied with steel plates for fixing to the structure. |
Head | Galvanized steel and Medium Density Fibreboard (MDF) board. |
Barrel | Steel tube. Guidance for specification option: Of suitable diameter and wall thickness to avoid deflection. |
U-value | 2.27 W/m²K. Guidance for specification option: Through section. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature
FR-INS4H Brochure

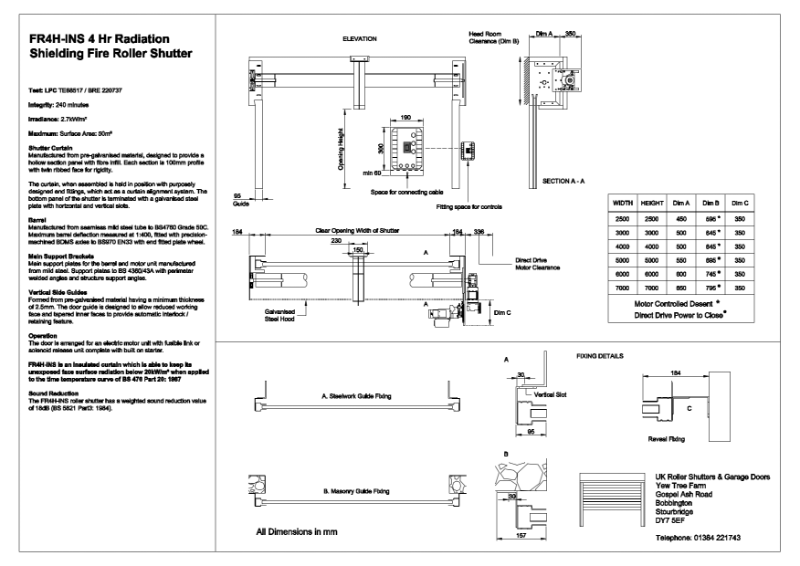

FR-INS4H Drawings Datasheet
