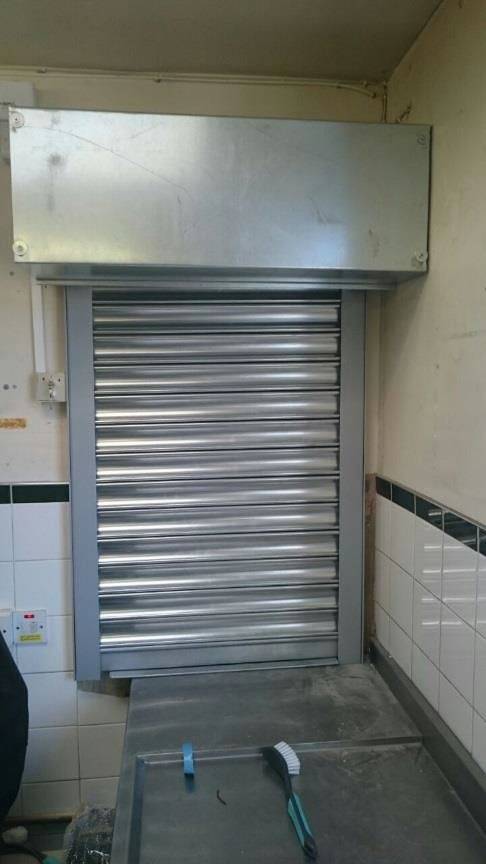

FR-1H Single Skin Fire Resistant Roller Shutter - Roller Shutter
Verified by manufacturer 4 months ago
Steel fire shutter offering 1 hour fire protection, tested by Exova and designed to conform to BS EN 16034:2014. Features safety brakes, automatic fire alarm closure, and can come in various colours.
Application
High security commercial and service sites, up to 50 m², with one hour fire rating to stop spread of fire through an opening. Suitable uses include:
- Warehouses.
- Factories.
- Loading bays.
- Other areas where a high level of security is required as well as a high degree of insulation.
- Canteens.
- Restaurants.
Description
The fire shutters have been tested by Exova under BS EN 1634-1 test conditions and assessed to BS EN 476-22. In the event of a fire alarm, the shutter can automatically descend by operation of the motor with the use of one of the fire interfaces. Various type of interface are available depending on budget and requirement. The fire shutters can span areas up to 50 m² and reach a width of 12 m. Fire shutters should come with a panel which connects to the fire alarm in order to drive the roller shutter down when the alarm goes off to compartmentalise the outbreak.
Features and benefits:
- Will withstand fire for one hour.
- Cost effective way to secure an opening and/or compartmentalise against a spreading fire.
- Can be powder coated two different colours, front and back.
- Can come with window panels if required.
- CE marked.
- Protection against crushing, shearing or drawing in.
- Available in sizes to suit needs.
General information
Color | Grey Other Guidance for specification option: Any RAL colour. Insert requirements |
Finish | Galvanized Plastisol Powder-coated Guidance for specification option: Polyester powder coated. |
Material | Steel |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: On electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Format | Thermally insulated. |
Arrangement | Vertical. |
Performance | |
Resistance to wind load | Class 2. |
Shutter curtain. | |
Lath material | Galvanized steel. |
Profile | Curved. |
Finish and colour | Galvanized, self-colour.Polyester powder coated, RAL colour.Guidance for specification option: Insert requirement Plastisol, RAL colour. |
Frame and guides | |
Material | Steel. |
Finish | Galvanized.Plastisol.Polyester powder coated. |
Colour | RAL.Guidance for specification option: Insert requirement Self-colour. |
Operation | |
Mode | Automatic, single-phase tubular motor.Automatic, In Line chain driven motor.Automatic, 3-phase outboard motor.Manufacturer guidanceManual override facility is available with the UKRS FS range. |
Control | Push button. |

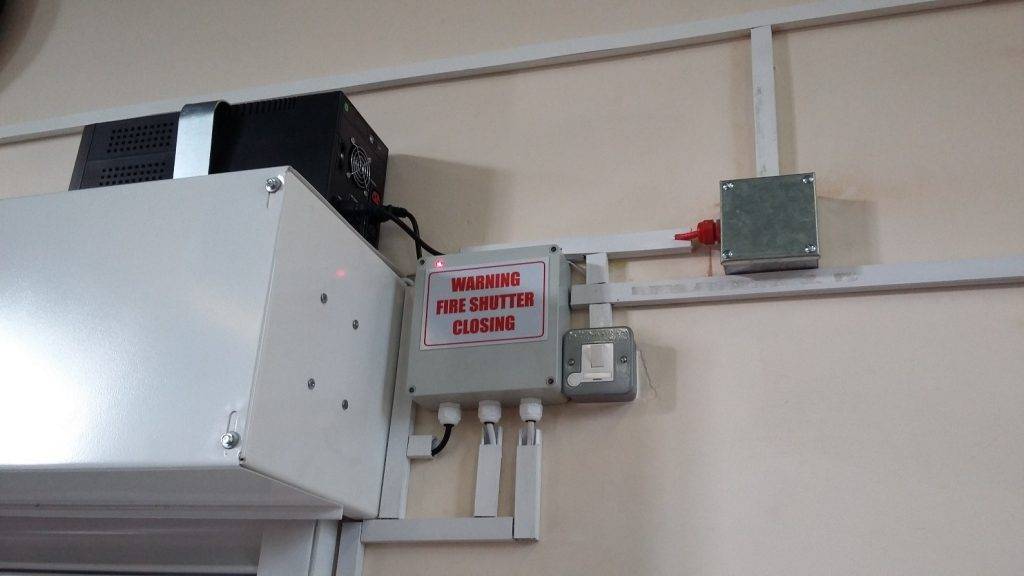

Fire interface panel | FCP A-Spec. Guidance for specification option: Will wire into the fire alarm and either go up or down when the alarm is triggered. There are also lights and a warning alarm signalling the imminent descent of the shutter. This control panel can be set on a delay. Comes with an emergency mushroom push button which can be pressed to temporarily send the shutter back up. Shutter will come back down after a delay. F-Mate. Guidance for specification option: Will wire into the alarm and simply send the shutter up or down when alarm is triggered using a normally open, volt free signal. SF-01NRG. Guidance for specification option: Will wire into the fire alarm and either go up or down when the alarm is triggered. There are also lights and a 90 dB warning alarm signalling the imminent descent of the shutter. This control panel can be set on a delay. |
Battery back-up | Not required. Required. |
Fire integrity | To BS EN 476-22, 60 minutes. |
WallThickness | 0.7 mm. 0.9 mm. 1.2 mm. Manufacturer guidanceShutter curtain thickness depends on overall shutter opening width. |
Visible surfaces | 76 mm. Manufacturer guidanceShutter curtain. |
Height | 86.6 mm. Manufacturer guidanceShutter curtain profile height. |
Weight | 10-16 kg/m². Manufacturer guidanceShutter curtain weight. |
Width (maximum) | 12000 mm. Manufacturer guidanceShutter curtain. |
Surface | Single phase power: 10 m²; 3-phase power: 50 m². Manufacturer guidanceShutter curtain maximum surface. |
Barrel | Manufactured from seamless mild steel tube to BS4760 Grade 50°C. Guidance for specification option: Maximum barrel deflection measured at 1:400, fitted with precision machined BDMS axles to BS970 EN33 with end fitted plate wheel. |
Guide channels depth | 65 - 100 mm. Guidance for specification option: Will vary dependent on application. |
Guide channels | Bolted to fixing angles or steel box sections. Guidance for specification option: Dependent on application. See drawings. Manufacturer guidanceGuide channels fixing. |
Enclosure material | 0.9 mm galvanized steel sheet. |
End caps | Fabricated from 5 mm+ steel. |
Barrel support | Not required. Required. Manufacturer guidanceA barrel support frame at the centre of the housing may be required in some applications. |
Dimensions | 2500 x 305 mm. 4000 x 355 mm. 5500 x 400 mm. Manufacturer guidanceEnclosure dimensions: shutter height x box size. Heights are based on standard tube motor operation or In Line external chain drive motor. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Most of the shutter can be recycled as it's predominantly steel. |
Expected Life | 30 year |
