GLV-11 PE Perforated Steel Roller Shutter - Roller Shutter

Verified by manufacturer 5 months ago

GLV-11 PE Electric

UK Roller Shutters Ltd Variant:

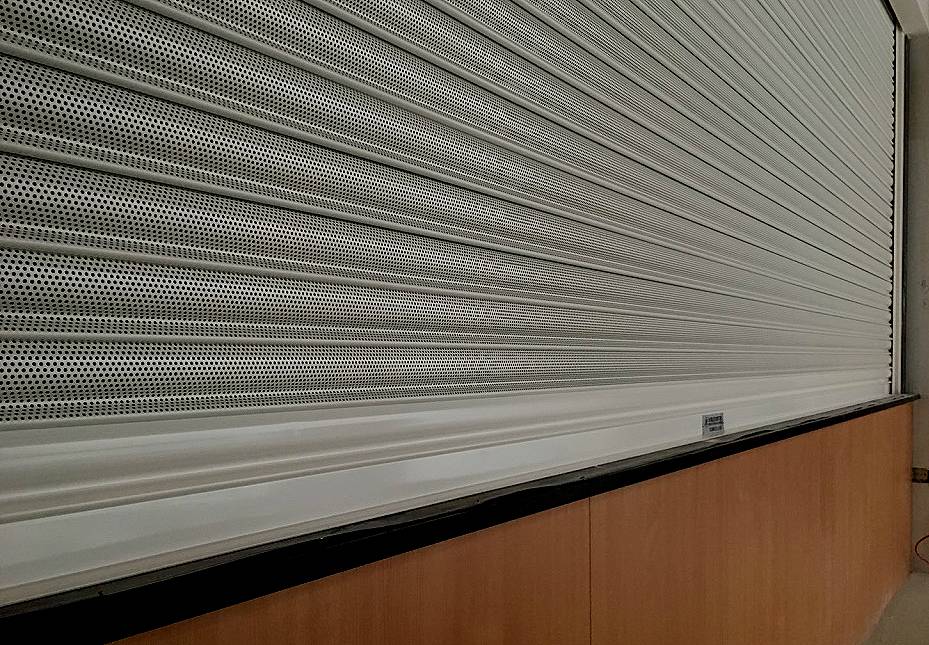

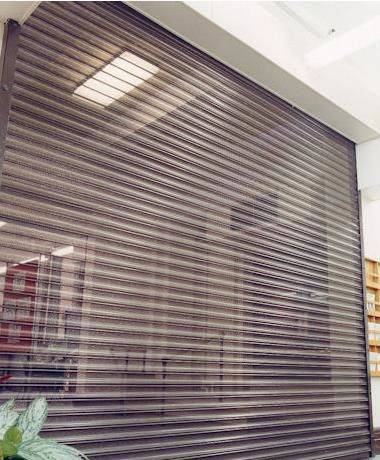

Perforated steel roller shutter.

Jump to:
+44 (0)1384 221743 Website

Application

Allow closed premises to be secured. Suitable for use in:

  • Commercial properties.
  • Car parks.
  • Areas where vision or airflow are required.

Description

These perforated galvanized steel shutters have many small holes punched into them allowing 27% visibility and air flow making them ideal for shop fronts or car parks. They can also be incorporated with solid lath to create a mixed effect. There are many features that can be added or taken away to suit specifier needs and budget. The shutter can be made from thicker steel, made with extra windlocks, have brush strips and rubber added, powder coated or plastisol coated to a wide variety of RAL colours.


Features and benefits:

  • Can be upgraded to Secure By Design Status or LPS1175 Security rating SR1 or SR2.
  • Can be powder coated or plastisol coated to any RAL colour.
  • Wicket access doors can be incorporated into the shutter if needed.
  • Fully CE marked.
  • Protection against crushing, shearing or drawing in.
  • A great solution for retailers.

General information

Color

Grey

Other

Guidance for specification option:

Any RAL or BS colour. Insert requirements.

Finish

Galvanized

Plastisol

Powder-coated

Material

Steel

Shape

Rectangle

Guidance for specification option:

With perforations.

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Format

External.

Arrangement

Vertical.

Performance

-

Resistance to wind load

Class 2.

Shutter curtain.

-

Lath material

Galvanized steel.

Profile

Curved perforated.

Finish and colour

Galvanized, self-colour.

Polyester powder coated, BS colour.

Guidance for specification option:

Insert requirements.

Polyester powder coated, RAL colour.

Guidance for specification option:

Insert requirements.

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Polyester powder coated.

Plastisol.

Colour

BS.

Guidance for specification option:

Insert requirements.

RAL.

Guidance for specification option:

Insert requirements.

Self-colour.

Operation

-

Mode

Automatic, single-phase tubular motor.

Guidance for specification option:

240-volt (smaller shutters).

Automatic, 3-phase outboard motor.

Guidance for specification option:

400-volt (larger shutters).

Manufacturer guidance

Depending on usage m².

Control

Key switch.

Radio/remote control.

Rocker switch.

Timer closing.

Loop and radar operation.

Smart phone.

Swipe card activation.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Battery back-up

Not required.

Required.

Steel grade

0.7 mm (22 swg).

0.9 mm (20 swg).

1.2 mm (18 swg).

End plates

Mild steel.

Guidance for specification option:

Of appropriate thickness in relation to door thickness is prime painted and supplied with angles for fixing to the structure.

Barrel

Seamless steel tube.

Guidance for specification option:

Of adequate diameter to counteract deflection and hold in bearings or cups attached to the endplates.

Dimensions

2500 x 305 mm.

4000 x 355 mm.

5500 x 400 mm.

Manufacturer guidance

Enclosure dimensions: shutter height (up to mm) x box size.

Sizes are based on standard tube mortar operation.

Sustainability data

Country of product manufacture

United Kingdom

Literature

GLV-11 PE Brochure

GLV-11 PE Brochure
