Summary
Insulated steel roller shutter designed to operate quieter than traditional models.
Insulated steel roller shutter designed to operate quieter than traditional models.
Application
High security commercial sites requiring large aperture coverage and improved insulation properties from the shutter. Suitable for rapid rise/ fast action opening and closing when in conjunction with frequency inverted motor and appropriate sensory peripherals, including:
- Warehouses.
- Factories.
- Loading bays.
- Other areas where a high level of security is required as well as a high degree of insulation.
High security commercial sites requiring large aperture coverage and improved insulation properties from the shutter. Suitable for rapid rise/ fast action opening and closing when in conjunction with frequency inverted motor and appropriate sensory peripherals, including:
- Warehouses.
- Factories.
- Loading bays.
- Other areas where a high level of security is required as well as a high degree of insulation.
Description

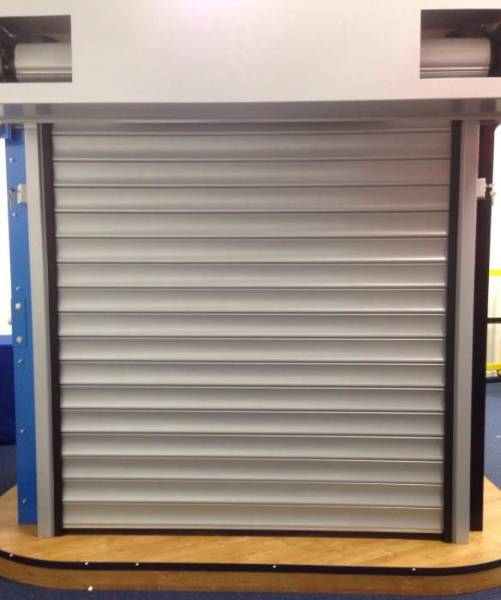

Insulated roller shutter model that moves almost silently and eradicates the old rattling noises that roller shutters traditionally make. It is made from double skinned polyester powder coated 95 mm slat with a polyurethane foam insulating core ensuring high levels of insulation which keep energy costs down whilst also performing well at keeping the sound out.
Features and benefits:
- Eight colour options as standard, though non-standard colours are available over a galvanized finish on request.
- Very little rattling in operation.
- CE compliant to all applicable directives and regulations.
- Protection against crushing, shearing or drawing in.
Insulated roller shutter model that moves almost silently and eradicates the old rattling noises that roller shutters traditionally make. It is made from double skinned polyester powder coated 95 mm slat with a polyurethane foam insulating core ensuring high levels of insulation which keep energy costs down whilst also performing well at keeping the sound out.
Features and benefits:
- Eight colour options as standard, though non-standard colours are available over a galvanized finish on request.
- Very little rattling in operation.
- CE compliant to all applicable directives and regulations.
- Protection against crushing, shearing or drawing in.
Finish
Powder-coated
Powder-coated
Material
Steel
Steel
Shape
Rectangle
Rectangle
Warranty description
One year
One year
SKU Code
GLV11-INS95
GLV11-INS95
Specification
Classification data
Format
Sound proofed.
Sound proofed.
Arrangement
Vertical.
Vertical.
Performance
-
-
Resistance to wind load
Class 2.
Class 2.
Shutter curtain.
-
-
Lath material
Double skinned polyester powder coated with polyurethane foam insulating core.
Double skinned polyester powder coated with polyurethane foam insulating core.
Profile
Curved.
Curved.
Finish and colour
Galvanized., Plastisol., Powder coated.
Galvanized., Plastisol., Powder coated.
Frame and guides
-
-
Material
Steel.
Steel.
Finish
Polyester powder coating.
Polyester powder coating.
Colour
Galvanized., Plastisol., Powder coated.
Galvanized., Plastisol., Powder coated.
Operation
-
-
Mode
Automatic, single-phase tubular motor.
Automatic, 3-phase outboard motor.
Control
Push button., Rocker switch., Key switch., Remote control., Smart phone., Automated., Other.
Push button., Rocker switch., Key switch., Remote control., Smart phone., Automated., Other.
Additional properties
Battery back-up
Not required., Required.
Not required., Required.
Dimensions
2195 x 355 mm., 3250 x 400 mm., 4000 x 450 mm., 3250 x 400 mm., 4000 x 450 mm., 5000 x 500 mm., 6000 x 550 mm.
2195 x 355 mm., 3250 x 400 mm., 4000 x 450 mm., 3250 x 400 mm., 4000 x 450 mm., 5000 x 500 mm., 6000 x 550 mm.
Height
95 mm.
95 mm.
Weight
12.8 kg/m².
12.8 kg/m².
Width (maximum)
7000 mm.
8000 mm.
Surface
20 m².
35 m².
U-value
1.1 W/m²K.
1.1 W/m²K.
Bottom slat
Galvanised steel powder coated bottom slat with EPDM weather seal.
Galvanised steel powder coated bottom slat with EPDM weather seal.
Guide channel
80 mm.
80 mm.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
