Flowshield LXP HD System
Verified by manufacturer over a year ago
A three pack, solvent free, flexible polyurethane topping.
Application
For use over asphalt, wood, steel and concrete; to provide a flexible, easy to clean, chemically resistant floor topping. Typical uses are process, manufacturing, packaging and warehousing areas subjected to heavy foot and pallet truck traffic and where a degree of flexing of the floor is expected.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A three pack, solvent free, flexible polyurethane topping applied between 2 mm and 3 mm.
Features and benefits:
- Seamless finish (except for underlying slab joints).
- Chemical resistance to sugars and acids.
- Easy to clean and sterilise, low maintenance requirement.
- Flexible, can be used over asphalt, wood and steel.
- High abrasion resistance.
- Solvent free; low odour.
General information
Color | Brown Grey Grey Red |
Finish | Other Guidance for specification option: Seamless - (except for underlying slab joints). |
Material | Polyurethane |
Warranty description | Manufacturer guidanceThree to Eight years. |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |

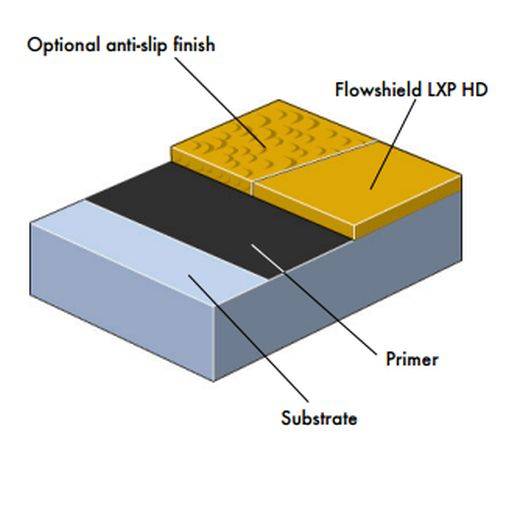

Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH. |
Preparation | Shot blast. |
Primer | Flowprime LXP (Concrete, wood, asphalt).Peran Primer W (Steel). |
Resin flooring | Flowshield LXP (To FeRFA Type 5). |
Surface treatment | Optional anti-slip finish. |
Bond strength | >2 N/mm². |
Certification | CE Marked. |
Colour options | Goosewing Grey 222. Mid Grey 280. Dark Grey 281. Beige 326. Forest Green 754. |
Cure speed | Light traffic: 24 hours, Full traffic: 2 days, Full chemical cure: 7 days. |
Flexural strength | >20 N/mm². |
Impact resistance | 11 Nm. |
Slip resistance | Dry >40 low slip potential. |
Hardness | 70. Guidance for specification option: (Shore D). |
TensileStrength | >15 N/mm². |
Thickness options | 2–3 mm. |
Toxicity | Taint free to sensitive foodstuffs. |
Water permeability | Nil. Guidance for specification option: Karsten test (impermeable). |
Wear resistance | Abrasion quantity: 2.25 cm³. |
