Flowfresh HF LT System - Resin Floor Screed
Verified by manufacturer over a year ago
Heavy duty, chemical resistant, antimicrobial polyurethane resin floor screed.
Application
Particularly suitable for wet processing zones such as food manufacturing, food preparation areas and chemical processing plants.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A 6–9 mm heavy duty, chemical resistant polyurethane resin floor screed with a textured coloured floor finish and speckled effect on the surface. The product contains Polygiene, an antimicrobial additive based on silver ion technology.
Features and benefits:
- High chemical resistance.
- Easy to clean and sterilise anti-slip surface, minimal joints.
- Heat resistant to 120°C.
- Resistant to steam cleaning or constant hot water.
- Non tainting, non-dusting.
- High abrasion resistance.
- Withstands high mechanical stress and thermal shock.
- Alternative to expensive acid resistant tiles.
- Grades available for low odour during application.
- Slip resistance.
General information
Color | Blue Cream Green Red Yellow |
Finish | Matt |
Material | Resin Guidance for specification option: Antimicrobial polyurethane. |
Height | 6 mm 9 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH. |
Preparation | Shot blast. |
Levelling screed | Isopol SBR if required. |
Primer | Flowprime or Hydraseal DPM (where DPM required).Flowfresh Primer (high heat required) with 1–2 mm silica sand scatter. |
Resin flooring | Flowfresh HF (FeRFA Type 8). |
Bond strength | >2.5 N/mm². |
Certification | CE Marked. |
Coefficient of thermal expansion | 3.74 x 10^(-5) mm/mm°C. |
Colour options | Ochre. Cream. Mustard. Red. Dark Green. |
CompressiveStrength | >50 N/mm². |
Cure time | Light traffic: 24 hours, Full traffic: 2 days, Full chemical cure: 7 days. |
Flexural strength | 20 N/mm². |
Impact resistance | 15 Nm. |
Slip resistance | Dry >40 low slip potential. |
TensileStrength | 10 N/mm². |
Thickness options | 6 mm. 9 mm. |
Uses | Wet processing zones, food preparation areas, chemical processing plants. |
Vapour Permeability | 3 g/m²/mm/24 hours at 9 mm thickness. |
Water permeability | Nil. Guidance for specification option: Karsten test (impermeable). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
Literature

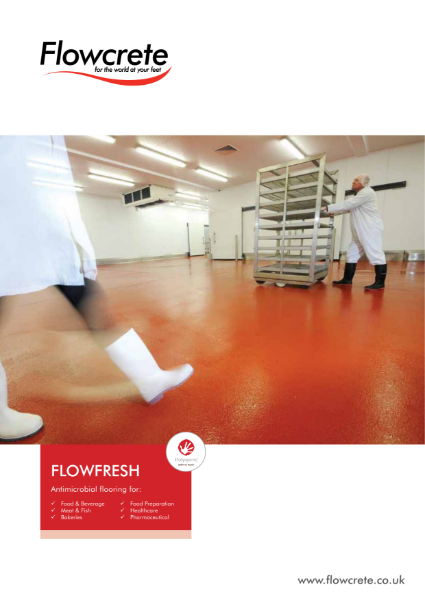

Antimicrobial Flowfresh Flooring
