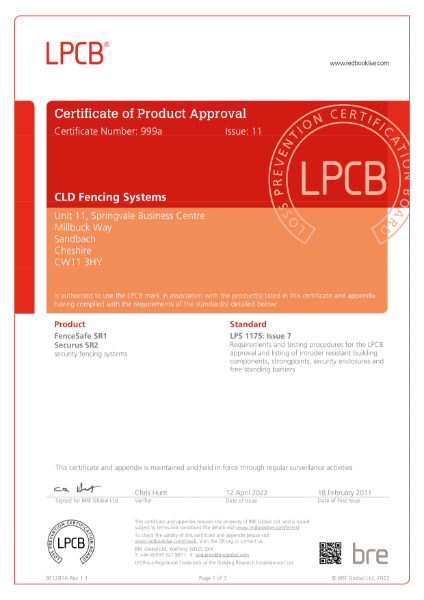

BRE Certificate
Certificate type

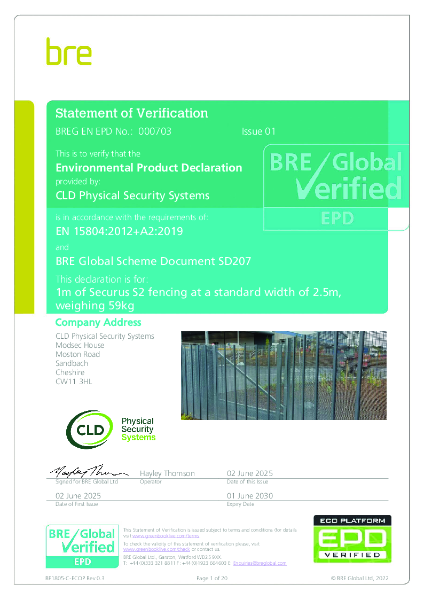

EPD
Certificate type

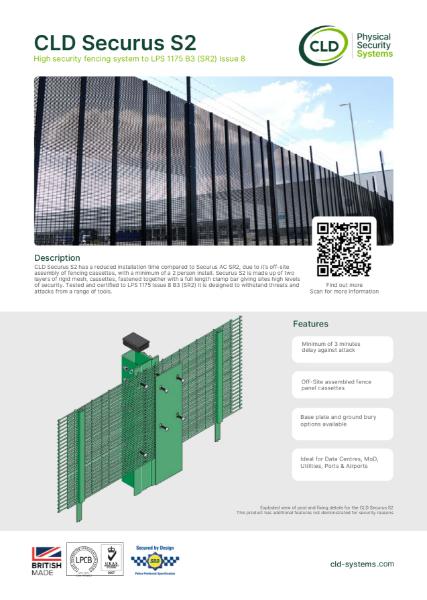

High security fencing system.
The Securus S2 is purpose-built for applications where perimeter security cannot be compromised. Designed to withstand sustained tool-based attacks and certified to LPS 1175 Issue 8 B3 (SR2), it is the ideal solution for environments requiring maximum protection with minimal installation time.
Thanks to its pre-assembled fencing cassettes, dual-layer 358 anti-climb mesh, and full-length clamp bar, Securus S2 provides a highly resilient barrier that is both visually discreet and physically impenetrable. It meets the strict requirements of BS 1722 Part 14:2017 and is Secured by Design accredited, ensuring suitability across a wide range of critical infrastructure sectors.
Suitable in applications in:
CLD Securus S2 is a high security fencing system that has a reduced installation time compared to Securus AC SR2, due to it’s off-site assembly of fencing cassettes, with a minimum of a two person install. Securus S2 is made up of two layers of rigid mesh cassettes, fastened together with a full length clamp bar giving sites high levels of security. Tested and certified to LPS 1175 Issue 8 B3 (SR2) it is designed to withstand threats and attacks from a range of tools.
Features and benefits:
Color | Green Other Guidance for specification option: Any RAL colour. |
Finish | Powder-coated Galvanized |
Material | Steel Aluminium |
Shape | Rectangle |
Width | 2518 mm |
Height | Bespoke Guidance for specification option: 2440-5000 mm. |
Warranty description | 15 year Guidance for specification option: Minimum of 15 years against manufacturing defects. |
Uniclass | |
CAWS | Q40/126 Open mesh steel panel security fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/27 Open mesh steel panel general-purpose fencing |
Classification data | |
System performance | Anti-intruder and security fencing performance. |
Standard | To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013. |
Posts | Special flanged post. Guidance for specification option: Galvanised after manufacture and polyester powder-coated to match fencing. |
Post foundations | Set posts in holes minimum 450 mm square x 950 mm deep. |
Panels | Double layered mesh cassette system. |
Fence topping | Cranked. Straight. Manufacturer guidanceBarbed and razor wire. |
Site applied finishes | Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidanceWith marine grade and metallics. |
Width | 2518 mm. |
Height | Manufacturer guidanceAvailable in heights of 2440-5000 mm. Insert requirements. |
WireDiameter | 4 mm. Guidance for specification option: Verticals. |
Mesh size | 76.2 x 12.5 mm. |
Installation | Bottom of panel minimum 100 mm below ground. Guidance for specification option: Base plated and no ground bury options also available. Contact manufacturer for details. |
Size | 80 x 60 mm. |
Post centres | 2535 mm. Guidance for specification option: +/- 15 mm. |
Fixings | 120 x 6 mm full length clamp bar. M8 Stainless Steel cup square bolt (min 30 mm). |
Finish | Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Any RAL colour available. Insert requirement, |
SecurityRating | LPS 1175 B3 (Issue 8). |
Country of product manufacture | United Kingdom |
Material | Steel Aluminium |
