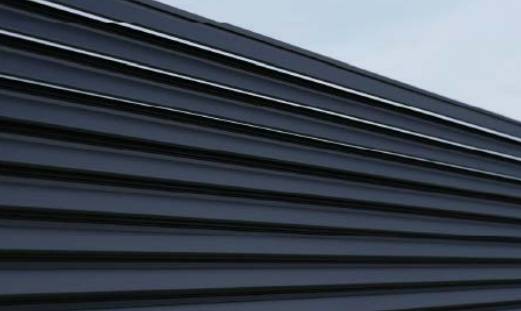

CLD Screenogril S2 - Security Fencing

Name: CLD Screenogril S2 - Security Fencing
Brand: CLD Physical Security Systems
SKU: fftKFY7A2iBpCijK3Eki49

Verified by manufacturer 2 days ago

CLD Physical Security Systems

Product certifications:

BRE Certificate
Certificate type

Louvre rigid panel fencing system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

CLD Screenogril S2 is a high-security louvre rigid panel fencing system, expertly engineered to restrict visibility into sensitive premises while offering robust protection against intrusion. Combining functionality with a modern aesthetic, it is ideal for locations where discretion and security are critical—such as hospitals, high secure units, and schools.

This advanced fencing solution provides a minimum of 3 minutes delay against attack, significantly increasing response time in the event of an attempted breach. With 100/0 louvre visibility, it ensures complete visual screening without compromising on strength. Available in any RAL colour, including metallic finishes, Screenogril S2 blends seamlessly with surrounding architecture while delivering unmatched perimeter security.

Description

CLD Screenogril S2 is a louvre rigid panel fencing system specially designed to restrict visibility of premises whilst preventing intrusion.

This high security version of an aesthetic perimeter is ideal for use in hospitals, high secure units and schools and offers a minimum of 3 minutes delay against attack.

Features and benefits:

100/0 louvre visibility.
Available in any RAL colour including metallic.
Secure fencing.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Length	1992 mm Bespoke
Width	150 mm
Height	697 mm 1608 mm 1975 mm Bespoke
Warranty description	15 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/28 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/126 Open mesh steel panel security fencing

Specification data - Metal mesh panel fencing systems

System performance	Anti-intruder and security fencing performance
Standard	To BS 1722-14, BS EN ISO 1461:2009, BS EN 13438:2013, LPS 1175 B3 (Issue 8).
Posts	60 x 60 x 3 mm, RHS steel. 60 x 60 x 3 mm, SHS steel.
Post foundations	Baseplate. Guidance for specification option: ⌀16 minimum holes, 12 mm minimum anchor size. Post fillet welded to baseplate all the way around. Dug-in. Guidance for specification option: Minimum grade C20 concrete foundation. Minimum 650 mm depth x 300 mm width of foundation. Flat bar. Guidance for specification option: Corner posts baseplated. ⌀16 minimum holes, 12 mm minimum anchor size. Post fillet welded to baseplate all the way around. Minimum grade C20 concrete foundation.
Panels	1992 x 1975 mm, Mild steel louvre panels. Guidance for specification option: Louvre panels consisting of triple flanged horizontal louvres. Electrofused at 49 mm centers and 4 mm vertical wires to rear spaced at 132 mm. Top and bottom flat bars 50 mm x 3 mm. Galvanised and polyester powder-coated to a minimum of 60 microns. 100/0 vision using 69 mm x 1.5 mm fin louvres.
Site applied finishes	Polyester powder-coated RAL colour, 60–80 microns. Polyester powder-coated marine grade and metallics, 160–200 microns.
