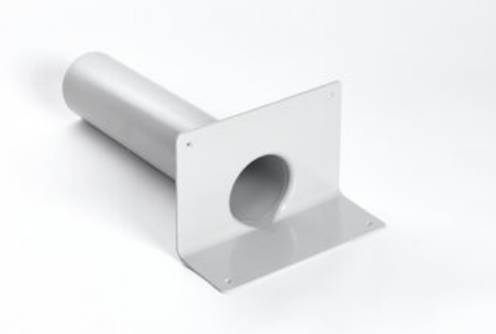

BauderPVC DSP-R 110 Parapet Outlet - PVC Rainwater Outlet

Name: BauderPVC DSP-R 110 Parapet Outlet - PVC Rainwater Outlet
Brand: Bauder Ltd
SKU: U54B1GjSUZQSkxoa4gQvg

Verified by manufacturer 26 days ago

Rigid PVC rainwater outlet.

Jump to:

Application

A rigid PVC rainwater outlet enabling Thermofol membrane to be welded to the flange plate.

Bauder rigid PVC parapet outlet (excluding leaf guard).

Features and benefits:

A rigid PVC rainwater outlet enabling Thermofol membrane to be welded to the flange plate.
UV stable throughout.

Color	Grey Guidance for specification option: Light Grey RAL 7035
Finish	Other
Material	PVC
Shape	Circle Guidance for specification option: Spigot Other Guidance for specification option: Base plate is a L shape
Length	480 mm Guidance for specification option: Spigot length
Width	280 mm Guidance for specification option: Rigid PVC base plate width
Height	180 mm Guidance for specification option: Rigid PVC base plate height
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

SKU Code	6999 5031

Classification data
Roof construction	-
Form	- Manufacturer guidance Insert requirements.
Roof insulation thickness	- Manufacturer guidance Insert requirements.
Material	PVC.
Spigots	480 mm, PVC spigot.
Diameter	110 mm (DN100).
Flange	Thermofol membrane.
Base plate	Rigid PVC base-plate. Guidance for specification option: 280 x 180 x 110 mm.
Weight	0.68 kg.
Reaction to fire	Class E.
Colour	Light grey RAL 7035.
