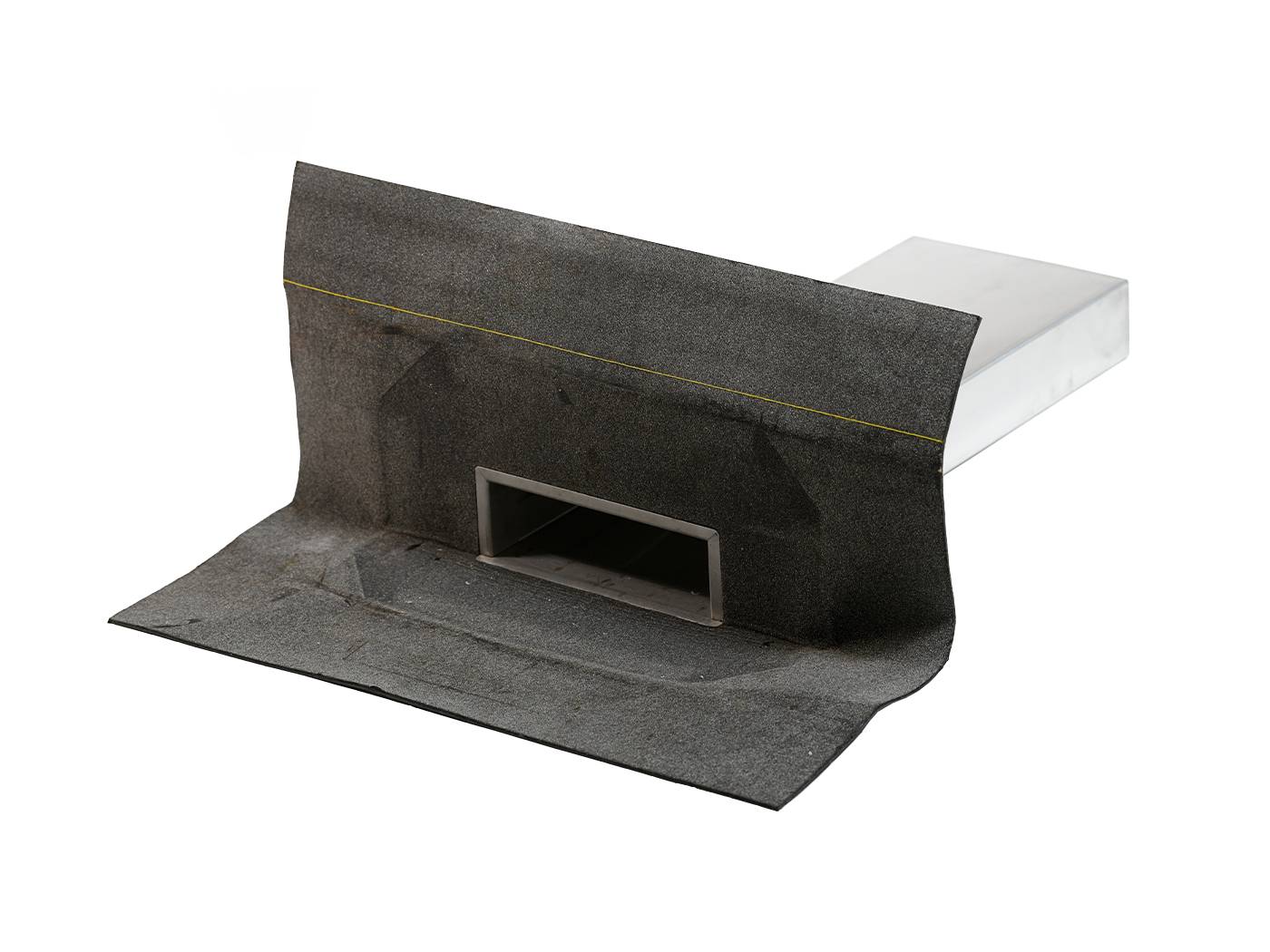

Bauder Bitumen Letterbox Parapet Outlet DN 205 - Parapet Rainwater Outlet
Verified by manufacturer 4 months ago
A high drainage capacity stainless steel bitumen letterbox parapet outlet.
Application
For use with Bauder bituminous waterproofing membranes when used as a through chute in walls or parapets to external drainage via a hopper head and downpipe. The product is designed to be used in warm, cold, and inverted roof scenarios. To be used in conjunction with the letterbox parapet outlet leaf guard.
Description
A high drainage capacity stainless steel bitumen letterbox parapet outlet for horizontal roof drainage systems. Factory-bonded membrane flange attached to the outlet allows for ease of installation.
- Base plate: 415 (width) x 175 (vertical) x 100 (horizontal) mm.
- Aperture: 205 (width) x 65 (height) mm.
- Bitumen membrane flange: 610 (width) x 280 (vertical) x 210 (horizontal) mm.
General information
Color | Black |
Finish | Sanded Manufacturer guidanceThe Factory bonded membrane flange attached to the outlet has a sanded finish. |
Material | Bitumen Stainless steel |
Shape | Rectangle |
Length | 600 mm 800 mm 1200 mm Manufacturer guidanceLength of the spigot. |
Width | 205 mm Manufacturer guidanceWidth of the apeture. |
Height | 65 mm Manufacturer guidanceHeight of the aperture. |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
SKU Code | GB14120210, GB14120211, GB14120212 |
Specification data - Gravity rainwater outlets
Classification data | |
Material | Stainless steel/ bitumen. |
Grating | Leaf guard. |
Spigots | 600 mm. 850 mm. 1200 mm. Manufacturer guidanceExternal diameter of spigot: 210 (width) x 70 (height) mm. |
Integral accessories | Factory bonded bitumen membrane flange, size (w x v x h): 610 x 280 x 210 mm. |
Flow rate | 2.02 L/s. |
Sustainability data
Country of product manufacture | Germany |
Material | Bitumen Stainless steel |
Literature
Bauder Bitumen Letterbox Parapet Outlet DN 205 including ss leaf guard
