Bauder Thermofol Stainless Steel Rainwater Outlets - Stainless Steel Rainwater
Verified by manufacturer 4 days ago
GB14110075 - DN70mm Light Grey
GB14110075 - DN70mm Light Grey

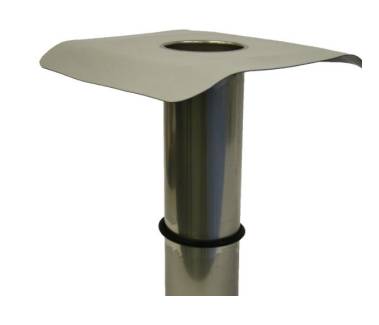

High performance stainless steel rainwater outlet with factory installed PVC membrane flange, O-ring, and wire ball leaf grill.
Application
Bauder outlets are sized to show the internal diameter of the spigot. For information on non-standard sizes and refurbishment applications, please contact Bauder Technical Department.
Description
A stainless steel rainwater outlet with factory installed PVC membrane flange. Supplied with an O-ring and a wire ball leaf grill. Supplied with either a light grey or mid grey coloured PVC membrane flange.
Features and benefits:
- Stainless steel construction.
- Factory installed PVC membrane flange for secure fitting.
- Includes O-ring and wire ball leaf grill.
- Available with light grey or mid grey PVC membrane flange.
General information
Color | Grey Guidance for specification option: Light Grey or Mid Grey flanges available Manufacturer guidanceFlanges are available in two grey colours |
Finish | Other |
Material | Stainless steel Guidance for specification option: Outlet. PVC Guidance for specification option: Flange. |
Shape | Circle |
Length | 400 mm |
Width | 230 mm Guidance for specification option: 230 x 230 mm is the base plate size/width. 330 mm Guidance for specification option: 330 x 330 mm is the PVC membrane flange size/width. |
Height | 230 mm Guidance for specification option: 230mm x 230mm is the base plate size 330 mm Guidance for specification option: 330mm x3230mm is the PVC membrane flange size |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
SKU Code | GB14110075 |
Specification data - Gravity rainwater outlets
Classification data | |
Roof construction | |
Form | Manufacturer guidanceInsert requirements. |
Roof insulation thickness | Manufacturer guidanceInsert requirements. |
Material | Stainless steel. |
Grating | Wire ball leaf grill. |
Spigots | 400 mm, stainless steel spigot. |
Integral accessories | O-ring and a wire ball leaf grill. |
Diameter | DN70. |
Flange | PVC membrane flange. Guidance for specification option:
|
Colour | Light grey. |
Base plate | Stainless steel base-plate. Guidance for specification option: 230 x 230 mm. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel Guidance for specification option: Outlet. PVC Guidance for specification option: Flange. |
Literature
Single Ply Membrane Systems - Bauder brochure
New Build Flat Roof Solutions - Bauder brochure
Refurbishment Flat Roof Solutions - Bauder brochure
