Bauder Bitumen Parapet 'Tell-Tale' Overflow DN50 - Tell-Tale Overflow Outlet

Name: Bauder Bitumen Parapet 'Tell-Tale' Overflow DN50 - Tell-Tale Overflow Outlet
Brand: Bauder Ltd
SKU: sgC3XrMQUHuzXSBtoFe5YJ

Verified by manufacturer 3 days ago

Tell-tale overflow outlet with stainless steel spigot and bitumen flange for roof drainage warning and protection.

Jump to:

Application

For use with Bauder bituminous waterproofing membranes.
It is used in conjunction with other roof drainage outlets to prevent water ingress into the building and avoid structural roof overload.
Provides visible warning of excessive water on flat roofs with parapets and in non-eaves gutters.
Not suitable for connection to internal pipework within walls or boxed in and inaccessible after construction.

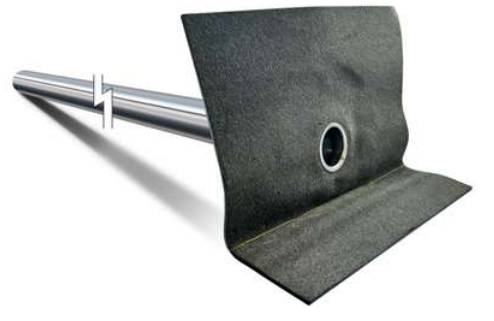

A bitumen parapet 'Tell-Tale' overflow with a 1200 mm long stainless-steel spigot. Comes with a flexible SBS bitumen flange.

Features and benefits:

Used with Bauder bituminous waterproofing membranes.
Ensures no water ingress into the building and prevents structural roof overload.
Provides visible warning of excessive water on the roof.
Not suitable for connection to internal pipework within walls or boxed in and inaccessible after construction.
Recommended as part of BS 12056-3 guidelines.

Color	Silver Guidance for specification option: Spigot Grey Guidance for specification option: Membrane flange in a charcoal grey
Finish	Other
Material	Stainless steel Guidance for specification option: Spigot Bitumen Guidance for specification option: Membrane flange
Shape	Square Guidance for specification option: Bitumen membrane flange is 330mm x 330mm Circle Guidance for specification option: Spigot
Length	1200 mm Guidance for specification option: Spigot Length. Spigot Width = 55 mm.
Width	330 mm Guidance for specification option: Bitumen Flange Width.
Height	330 mm Guidance for specification option: Bitumen Flange Height.
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. To be used as part of a full Bauder Waterproofing System only.

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

SKU Code	GB14120250

Classification data
Roof construction	-
Form	- Manufacturer guidance Insert requirements.
Roof insulation thickness	- Manufacturer guidance Insert requirements.
Material	Stainless steel spigot, bitumen flange.
Spigots	1200 mm, stainless steel spigot. Guidance for specification option: 55 mm wide.
Diameter	DN50.
Flange	Flexible SBS bitumen flange. Guidance for specification option: 330 x 330 mm.
Weight	2.6 kg.
