Bauder Bitumen Compact Vertical Outlet DN 100 - Thermally Insulated Rainwater Outlet
Verified by manufacturer 7 days ago

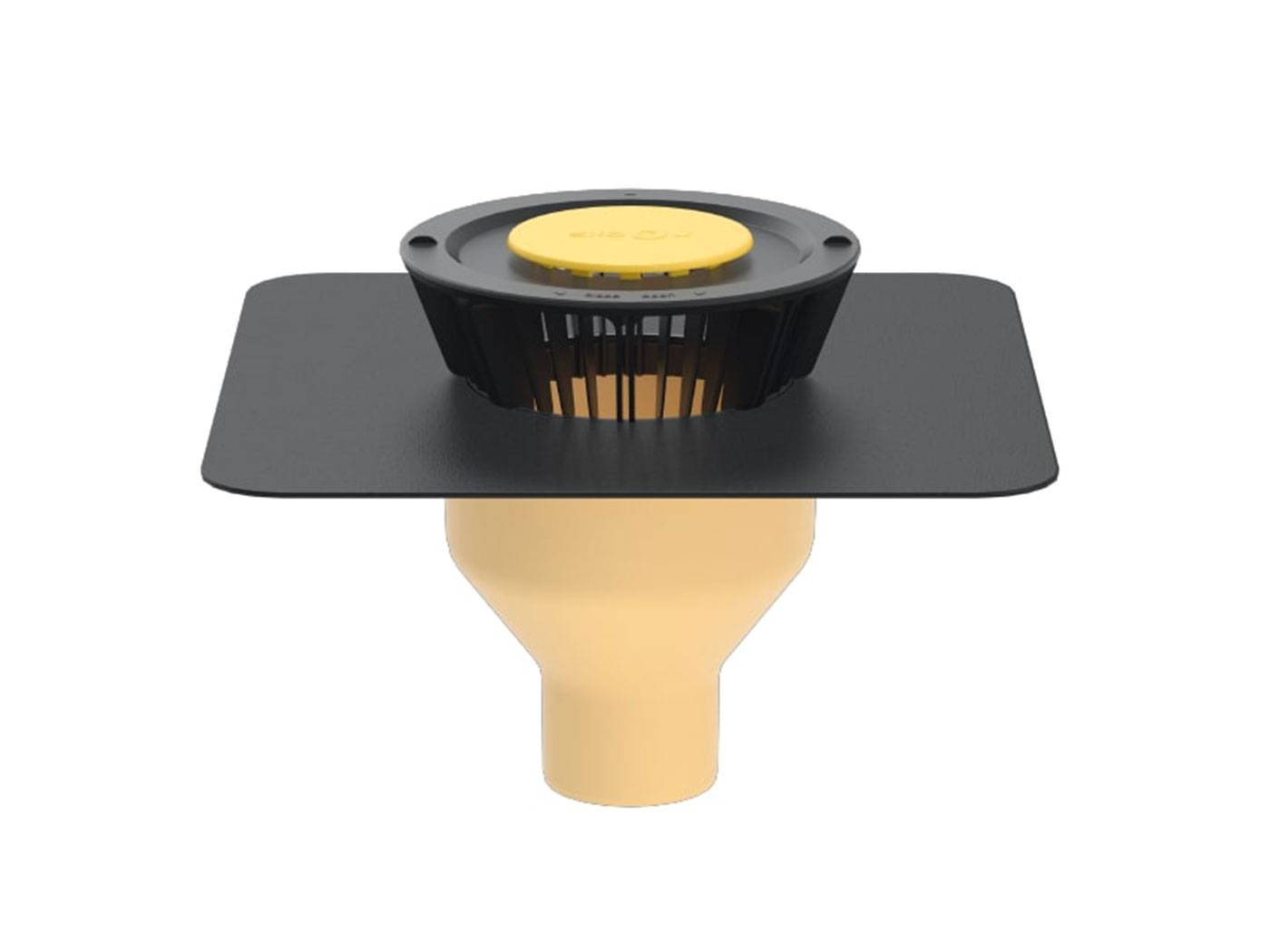

A thermally insulated cast polyurethane rainwater outlet with vertical spigot giving thermal continuity.
Application
For use with Bauder bituminous waterproofing membranes when connecting to conventional gravity drainage systems. The product is designed to be used in warm, cold, and inverted roof scenarios.
The spigot is designed to fit standard 110 mm pipework (see pipework connectivity information below).
Description
A thermally insulated, cast polyurethane rainwater outlet with vertical spigot giving thermal continuity. The outlet comes with a pre-attached bituminous flange to ensure waterproofing integrity between the outlet and membranes.
The BRE Certified (report no. HPR357-303748) high thermal value of the rigid foam body prevents condensation from forming on the underside of the outlet body. Outlet has a flow rate of 6.1 litres/second based upon requirements of BS EN 12056:3:2000.
Where a warm roof system is specified, a separate extension piece will need to be ordered to maintain thermal integrity. This is available with a spigot length that can range from 60 to 220 mm according to the insulation thickness specified. A separate 60 mm thick extension unit housing can also be ordered to accommodate the extension piece to save having to cut insulation on site to suit.
Also available as DN 70 or DN 150 outlet (specified separately).
General information
Color | Black Yellow Cream |
Finish | Smooth Guidance for specification option: Outlet body. Textured Guidance for specification option: Bitumen surface finish. |
Material | Polyurethane Guidance for specification option: A one-piece rigid polyurethane foam body. Bitumen Guidance for specification option: Flange surface finish. |
Shape | Square Circle |
Length | 495 mm |
Width | 495 mm |
Height | 210 mm 255 mm |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Guidance for specification option: Insert details. |
Roof insulation thickness | Guidance for specification option: Insert details. |
Material | Cast polyurethane body; bituminous flange with a polyethylene film.Guidance for specification option:
|
Grating | Leaf grille. |
Spigots | Designed to fit standard 110 mm pipework (DN 100). |
Integral accessories | Compact extension unit (warm roofs only).Guidance for specification option: Length: 255 mm; can be used for insulation depths from 60 to 220 mm.
Compact extension unit housing (warm roofs only).Guidance for specification option:
None. |
Flow rate | 6.1 L/s. Guidance for specification option: Compact Outlet and Compact Outlet Extension Unit. Manufacturer guidanceFlow rate performance data using a 35 mm head of water (including leaf grille), based upon requirements of BS EN 12056:3:2000. Further flow rate performance data can be obtained within this document. For bespoke drainage calculation performance data, contact manufacturer. |
Weight | 2.1 kg. Guidance for specification option: Outlet only; see Integral accessories guidance for other components. |
Other accessories | None. Reinforcement plate (for metal decks only). |
Sustainability data
Country of product manufacture | Germany |
Material | Polyurethane Guidance for specification option: A one-piece rigid polyurethane foam body. Bitumen Guidance for specification option: Flange surface finish. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidancePlease refer to EPD on the Bauder website. |
