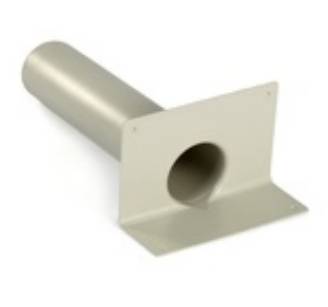

BauderFPO DSP-R 90 Parapet Outlet - Rigid FPO Parapet Outlet

Name: BauderFPO DSP-R 90 Parapet Outlet - Rigid FPO Parapet Outlet
Brand: Bauder Ltd
SKU: 9ho4du46WWXXjiFYzyabWw

Verified by manufacturer 27 days ago

A rigid FPO rainwater outlet designed for horizontal drainage with a flange plate for membrane welding and UV stability.

Jump to:

Application

Used for horizontal rainwater drainage on parapets, enabling Thermoplan membrane to be welded to the flange plate for secure waterproofing.

Bauder rigid FPO parapet outlet (excluding leaf guard).

Features and benefits:

A rigid FPO rainwater outlet enabling Thermoplan membrane to be welded to the flange plate.
UV stable throughout.

Color	Grey
Finish	Other
Material	Flexible polyolefin (FPO) Guidance for specification option: Membrane flange. Polypropylene Guidance for specification option: Spigot.
Shape	Circle Guidance for specification option: Spigot. Other
Length	480 mm Guidance for specification option: Length of spigot.
Width	90 mm Manufacturer guidance Diameter.
Height	90 mm Manufacturer guidance Diameter.
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

SKU Code	6543 0090

Classification data
Roof construction	-
Form	- Manufacturer guidance Insert requirements.
Roof insulation thickness	- Manufacturer guidance Insert requirements.
Material	Rigid flexible polyolefin.
Spigots	480 mm, polypropylene spigot.
Diameter	90 mm (DN80).
Flange	FPO Thermoplan membrane.
Drainage capacity	0.75 L/s (35 mm).
Weight	0.68 kg.
