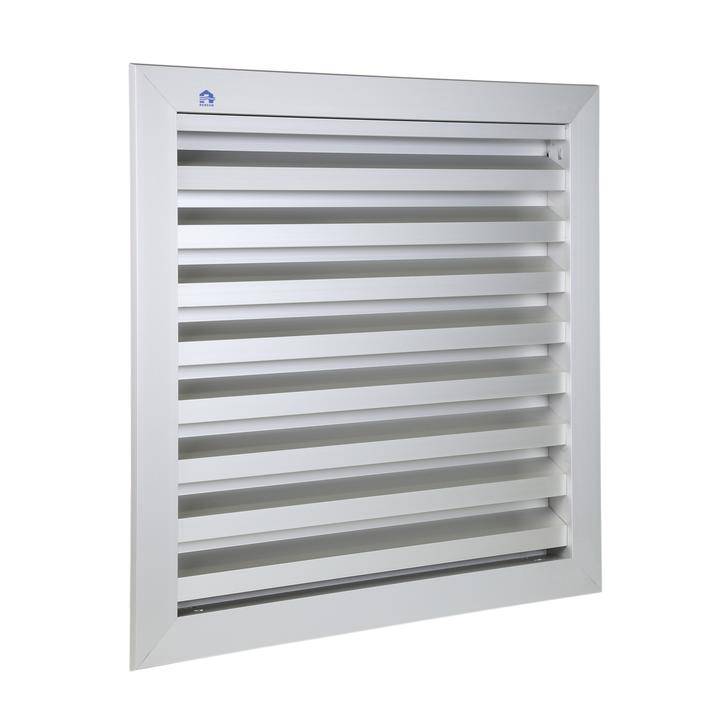

Aluminium Louvre Panel 411

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd Variant:

Built-in aluminium wall louvre, standard series.

Jump to:
+44 (0)1622 754123 Website

Application

Suitable for every application without specific needs.

Description

Aluminium built-in louvre with 50% free area and water resistance class A.


Features and benefits:

  • 50% free area.
  • Class A3 water resistance.
  • Flanged frame.
  • Various product options available.
  • Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).

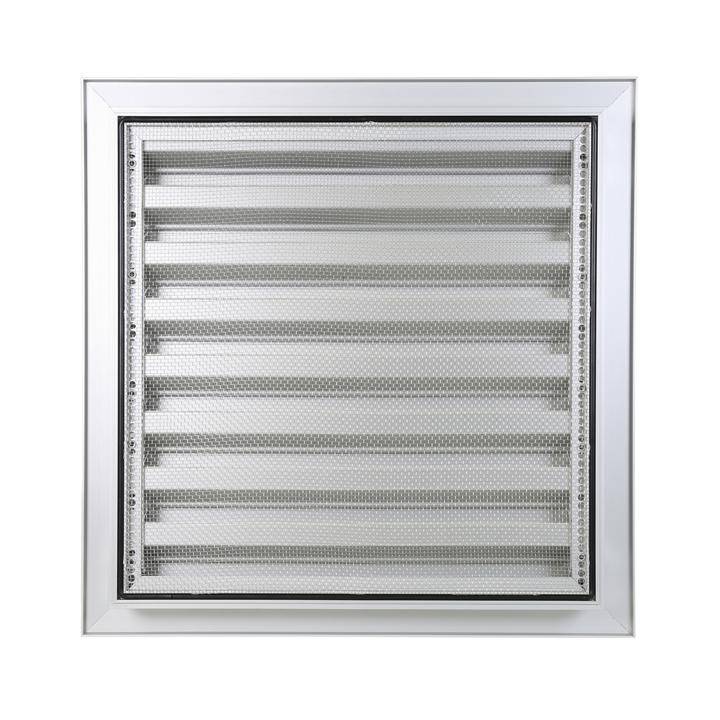

  • Stainless steel 304 insect screen (2.3 x 2.3 mm) as standard.
  • Anodized or powder-coated finish.
  • Minimum dimensions: 100 x 100 mm.

General information

Color

Other

Finish

Anodized

Powder-coated

Satin

Gloss

Matt

Material

Aluminium

Stainless steel

Shape

Rectangle

Square

Length

34 mm

Manufacturer guidance

Depth.

Width

Bespoke

100 mm

Height

Bespoke

100 mm

Warranty description

Ten year

Five year

Two year

Manufacturer guidance

  • Renson gives a basic ten-year warranty on all louvres.
  • The gloss of powder coated parts is limited to five years.
  • Motors are limited to two years.
  • More details and modalities can be found in the warranty terms and conditions.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

H11/437 Louvres

L10/54 Louvres

H11/140 Louvres

L10/650 Metal louvres

Product range

Louvres / Built-In Wall Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)

Guidance for specification option:

  • Minimum dimensions: 100 x 100 mm.
  • Depth: 34 mm.
  • Depth to fit: 29 mm.
  • Insert requirements.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Guidance for specification option:

Layer thickness: 20 microns.

Colour

Grey.

Texture

Satin.

Construction

Flanged frame.

Guidance for specification option:

Flange size: 21 mm.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030, Class A.

Guidance for specification option:

Class A3 (0.5 m/s).

Discharge loss coefficient (minimum)

To BS EN 13030, Class 3.

Guidance for specification option:

  • Ce coefficient 0.221.
  • Cd coefficient 0.226.

Louvre configuration

-

Number of banks

One.

Blade orientation

Horizontal.

Blade pitch

33.3 mm.

Blade angle

Fixed.

Accessories

Not required.

Water channel.

Drainage profile.

Removable insect mesh.

Backframe.

Filter.

Flangeless frame (without flange).

Stainless steel 304 mesh, 6 x 6 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen (2.3 x 2.3 mm).

Stainless steel 316 mesh, 6 x 6 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories

Stainless steel 304 insect screen (2.3 x 2.3 mm).

Without mesh.

Air flow

K-factor (entry) to EN 13030, 20.47.
K-factor (discharge) to EN 13030, 19.58.

Free area

Visual free area: 59%.
Physical free area: 50%.

Ingress protection (IP) rating

IP2XD.

Guidance for specification option:

IP class (louvre with mesh; electrical installation at least 100 mm from louvre).

Fixing

Brackets.

Guidance for specification option:

  • Standard.
  • Bracket reference: 418.

Spring clips.

Guidance for specification option:

  • Available on request.
  • Spring clips reference: 419.

Manufacturer guidance

For louvres larger than approx. 3 m², a reinforcing mullion is required to suit span and wind load.

Options

Not required.

Special shape.

Controllable.

Cable feed channel (CH5000).

Manufacturer guidance

Consult manufacturer's literature for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

15–60%.

Manufacturer guidance

Maximum.
