Aluminium Louvre Grille 484

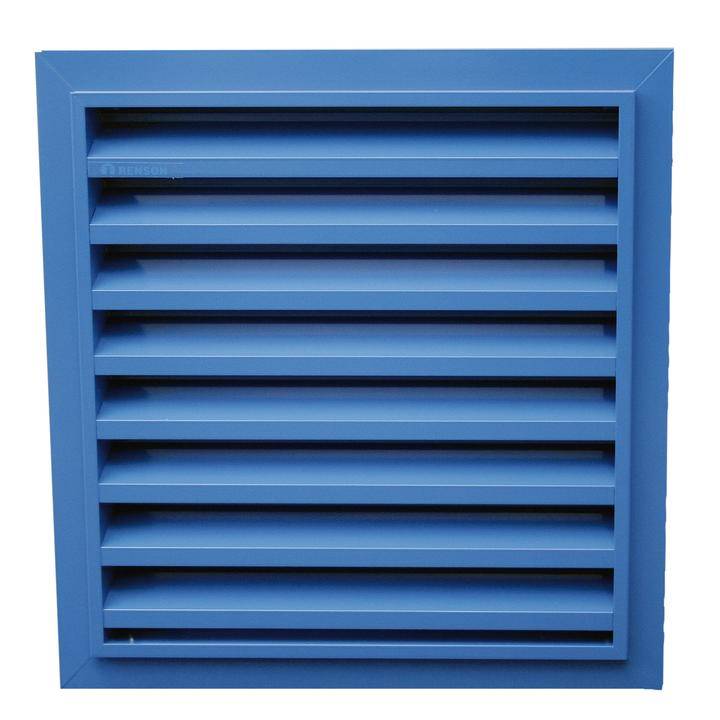

Name: Aluminium Louvre Grille 484
Brand: Renson Fabrications Ltd
SKU: dA5xFQ2TnAhjAp5NtWK5i5

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd

Glazed-in aluminium louvre, heavy-duty series.

Jump to:

+44 (0)1622 754123 Website

Application

Suitable for 24 and 28 mm glazing sections.

Description

Heavy-duty, glazed-in aluminium louvre.

Features and benefits:

Suitable for applications with request for high air-flow.
High flow.
To be fitted like double glazing.
Light, strong and durable.
Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).

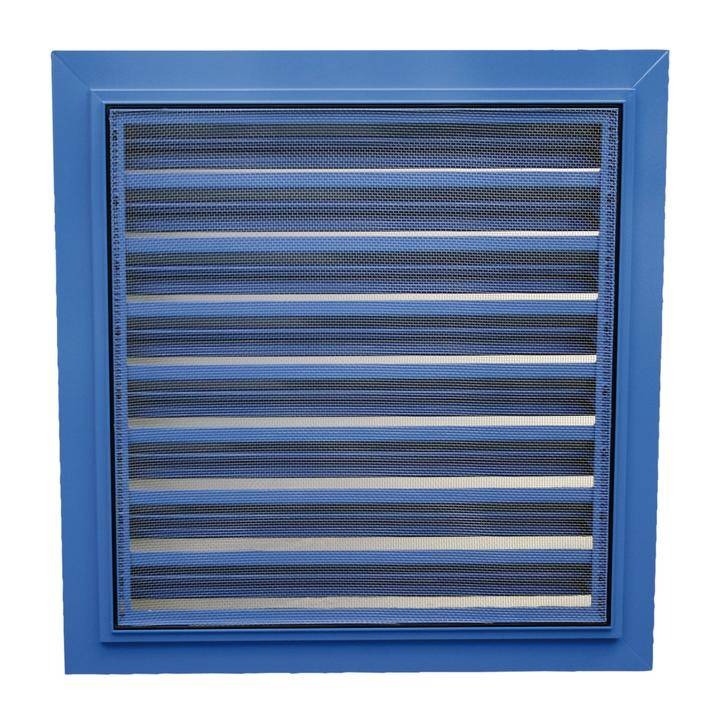

Stainless steel 304 mesh (2.3 x 2.3 mm) as standard.
Anodized or powder-coated finish.
Minimum dimensions: 220 x 220 mm.

General information

Color	Grey Other
Finish	Anodized Powder-coated Gloss Matt Satin
Material	Aluminium Stainless steel
Shape	Square
Length	51 mm Manufacturer guidance Depth.
Width	Bespoke 220 mm
Height	Bespoke 220 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres

Product range	Louvres / Glazed-In Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 220 x 220 mm. Depth: 51 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 20 microns.
Colour	Grey.
Texture	Satin.
Construction	Flanged frame, 24 mm. Flanged frame, 28 mm.
Weather performance	-
Discharge loss coefficient (minimum)	To BS EN 13030, Class 2. Guidance for specification option: Ce coefficient 0.323. Cd coefficient 0.316.
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	50 mm.
Blade angle	Fixed.
Accessories	Not required. Drainage profile. Water channel. Removable mesh. Filter. Stainless steel 304 insect screen, 2.3 x 2.3 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen, 2.3 x 2.3 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories	Stainless steel 304 insect screen (2.3 x 2.3 mm). Without mesh.
Fixing	Suitable for 24 and 28 mm glazing sections. Guidance for specification option: Other thicknesses on request; consult manufacturer for details.
Air flow	K-factor (entry) to EN 13030, 9.59. K-factor (discharge) to EN 13030, 10.01.
Free area	Visual free area: 70%. Physical free area: 60%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class (louvre with mesh; electrical installation at least 100 mm from louvre).

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	100% recyclable
