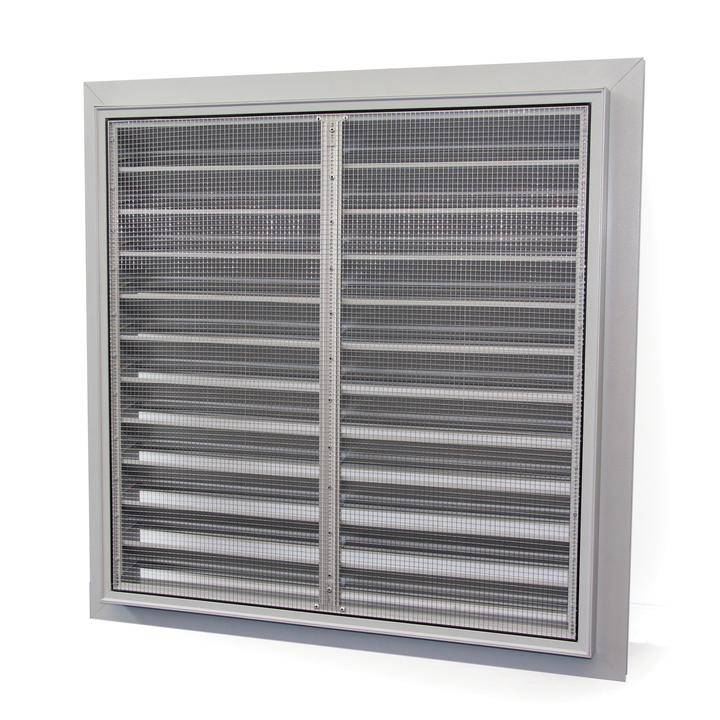

Aluminium Louvre Grille 483
Verified by manufacturer 28 days ago
Anodized
Anodized
High-airflow glazed-in aluminium louvre.
Application
- Applications with request for high air-flow.
- Suitable for 24 and 28 mm glazing sections.
Description
High-air flow glazed-in louvre.
Features and benefits:
- Suitable for applications with request for high air-flow.
- High flow.
- To be fitted like double glazing.
- Frame thickness: 24 mm (frame thickness of 8 to 80 mm on request).
- Light, strong and durable.
- 76% physical free area.
- Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
- Minimum dimensions: 385 x 385 mm.
- Stainless steel 304 mesh (6 x 6 mm).
- Anodized or powder-coated finish.
General information
Color | Grey Other |
Finish | Anodized Powder-coated Gloss Matt |
Material | Aluminium Stainless steel |
Shape | Square |
Length | 87 mm |
Width | 385 mm Bespoke |
Height | 385 mm Bespoke |
Warranty description | Ten year Five year Two year Manufacturer guidance
|
Uniclass | |
CAWS | H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres |
Product range |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option:
|
Material | Aluminium sections (AlMgSi 0.5, according EN 12020-2). |
Finish | Anodized.Guidance for specification option: Layer thickness: 20 microns. |
Colour | Grey. |
Texture | Satin. |
Construction | Flanged frame.Guidance for specification option: Frame thickness: 24 mm (frame thickness of 8 to 80 mm on request). |
Weather performance | |
Discharge loss coefficient (minimum) | To BS EN 13030, Class 1.Guidance for specification option:
|
Louvre configuration | |
Number of banks | Two. |
Blade orientation | Horizontal. |
Blade pitch | 50 mm. |
Blade angle | Fixed. |
Accessories | Not required.Water channel.Drainage profile.Removable mesh.Filter.Stainless steel 304 insect screen, 2.3 x 2.3 mm.Stainless steel 304 mesh, 10 x 10 mm.Stainless steel 304 mesh, 20 x 20 mm.Stainless steel 316 insect screen, 2.3 x 2.3 mm.Stainless steel 316 mesh, 10 x 10 mm.Stainless steel 316 mesh, 20 x 20 mm. |
Integral accessories |
Without mesh. |
Fixing | Suitable for 24 and 28 mm glazing sections. Guidance for specification option: Other thicknesses on request; consult manufacturer for details. |
Air flow | K-factor (entry) to EN 13030, 4.6. |
Free area | Visual free area: 90%. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100% recyclable |
