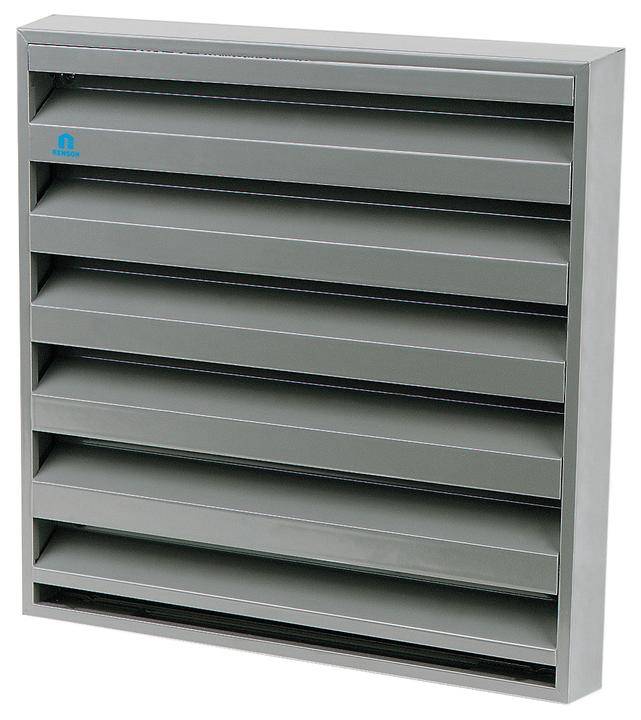

Aluminium Louvre Grille 431

Verified by manufacturer 2 months ago

Anodized, 165 x 165 mm

Renson Fabrications Ltd Variant:

Aluminium surface-mounted wall louvre.

Jump to:
+44 (0)1622 754123 Website

Application

Typical applications include:

  • Fixed louvre.
  • Night cooling.
  • Standard surface-mounted louvre.

Description

Surface-mounted wall louvre suitable for intensive ventilation.


Features and benefits:

  • Quick and easy installation.
  • Sleek design.
  • Suitable for night cooling.
  • Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
  • Stainless steel 304 mesh (2.3 x 2.3 mm) as standard.
  • Anodized or powder-coated finish.
  • Minimum dimensions: 120 x 120 mm.

General information

Color

Grey

White

Black

Other

Finish

Anodized

Powder-coated

Satin

Matt

Gloss

Material

Aluminium

Stainless steel

Shape

Square

Length

29 mm

Manufacturer guidance

Depth.

Width

165 mm

225 mm

325 mm

425 mm

525 mm

Show more

Height

165 mm

225 mm

325 mm

425 mm

525 mm

Show more

Warranty description

Ten year

Five year

Two year

Manufacturer guidance

  • Renson gives a basic ten-year warranty on all louvres.
  • The gloss of powder coated parts is limited to five years.
  • Motors are limited to two years.
  • More details and modalities can be found in the warranty terms and conditions.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

H11/437 Louvres

H11/140 Louvres

L10/54 Louvres

L10/650 Metal louvres

Product range

Louvres / Surface Mounted Grilles

Specification data - Aluminium louvre panel units

Size (l x w x d)

165 x 165 x 29 mm.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Guidance for specification option:

Layer thickness: 20 microns.

Colour

Grey (natural anodized).

Guidance for specification option:

Stock model: 00431111.

Texture

Satin.

Construction

Flangeless frame.

Air intake and exhaust performance

-

Air volume

23 m³/h.

Manufacturer guidance

Airflow at 2 Pa.

Weather performance

-

Discharge loss coefficient (minimum)

To BS EN 13030, Class 3.

Guidance for specification option:

  • Ce coefficient 0.221.
  • Cd coefficient 0.226.

Louvre configuration

-

Number of banks

One.

Blade orientation

Horizontal.

Blade pitch

33 mm.

Blade angle

Fixed.

Accessories

Not required.

Stainless steel 304 mesh, 6 x 6 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen, 2.3 x 2.3 mm.

Stainless steel 316 mesh, 6 x 6 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Burglar resistance louvre - 431RC2.

Integral accessories

Stainless steel 304 insect screen (2.3 x 2.3 mm).

Without mesh.

Air flow

K-factor (entry) to EN 13030, 20.47.
K-factor (discharge) to EN 13030, 19.58.

Free area

Visual free area: 59%.
Physical free area: 50%.

Ingress protection (IP) rating

IP2XD.

Guidance for specification option:

IP class (louvre with mesh; electrical installation at least 100 mm from louvre).

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

100% recyclable
