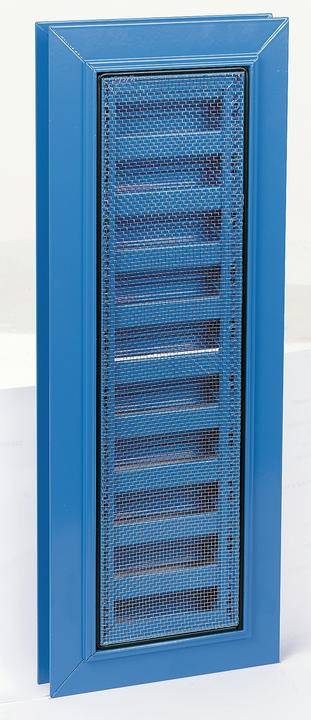

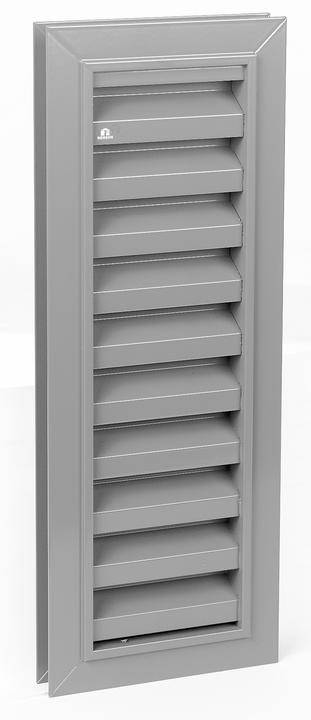

Aluminium Louvre 414
Verified by manufacturer 24 days ago
Anodized
Anodized
Glazed-in aluminium louvre with 50% free area.
Application
- Suitable for night cooling applications.
- For 24, 28, 32 mm glazing sections.
Description
Glazed-in aluminium louvre with 50% free area and class A3 water resistance.
Features and benefits:
- 50% physical free area.
- Water resistance: Class A3.
- Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
- Stainless steel 304 insect screen (2.3 x 2.3 mm) as standard.
- Anodized or powder-coated finish.
- Minimum dimensions: 130 x 130 mm.
General information
Color | Grey Other |
Finish | Powder-coated Anodized Gloss Matt Satin |
Material | Aluminium Stainless steel |
Shape | Rectangle Square |
Length | 34 mm Manufacturer guidanceDepth. |
Width | Bespoke 130 mm |
Height | Bespoke 130 mm |
Warranty description | Ten year Five year Two year Manufacturer guidance
|
Uniclass | |
CAWS | H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres |
Product range |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option:
|
Material | Aluminium sections (AlMgSi 0.5, according EN 12020-2). |
Finish | Anodized.Guidance for specification option: Layer thickness: 20 microns. |
Colour | Grey. |
Texture | Satin. |
Construction | 24 mm frame thickness.28 mm frame thickness.32 mm frame thickness. |
Weather performance | |
Water penetration class (minimum) | To BS EN 13030, Class A.Guidance for specification option: Class A3 (0.5 m/s). |
Discharge loss coefficient (minimum) | To BS EN 13030, Class 3.Guidance for specification option: Class A3 (0.5 m/s). |
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 33.3 mm. |
Blade angle | Fixed. |
Accessories | Not required.Drainage profile.Pressure-relief damper.Water channel.Removable mesh.Filter.Stainless steel 304 mesh, 6 x 6 mm.Stainless steel 304 mesh, 10 x 10 mm.Stainless steel 304 mesh, 20 x 20 mm.Stainless steel 316 insect screen (2.3 x 2.3 mm).Stainless steel 316 mesh, 6 x 6 mm.Stainless steel 316 mesh, 10 x 10 mm.Stainless steel 316 mesh, 20 x 20 mm. |
Integral accessories | Stainless steel 304 insect screen (2.3 x 2.3 mm). Without mesh. |
Fixing | Suitable for 24, 28, 32 mm glazing sections. |
Air flow | K-factor (entry) to EN 13030, 20.47. |
Free area | Visual free area: 59%. |
Ingress protection (IP) rating | IP2XD. Guidance for specification option: IP class (louvre with mesh; electrical installation at least 100 mm from louvre). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Actual Percentage cannot be guaranteed. May range between 15% and 60%. Manufacturer guidanceMaximum. |
