Aluminium Louvre 412
Verified by manufacturer 24 days ago
Powder-Coated
Powder-Coated

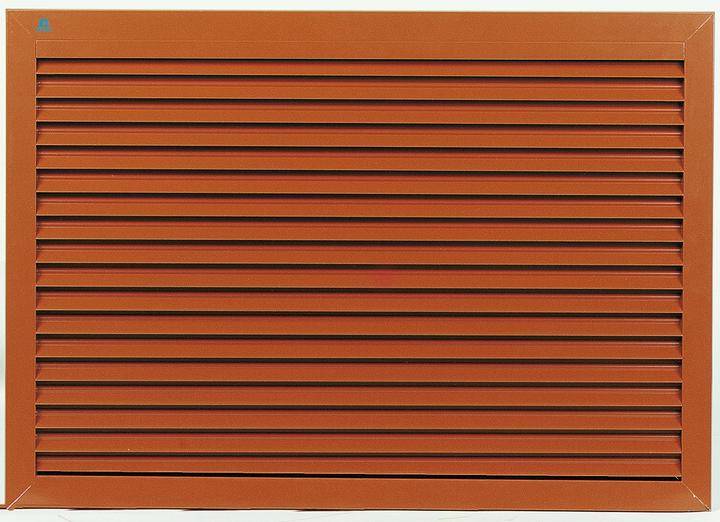

Built-in aluminium wall louvre with chevron section blades.
Application
Typical applications include:

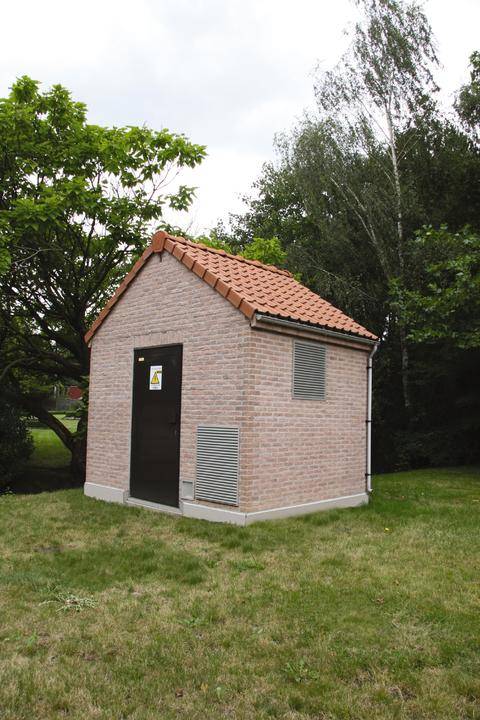

- High-voltage stations.
- IT rooms.
Description
Built-in wall louvre with chevron section blades and water resistance class A.
Features and benefits:
- Quick and easy installation.
- Sleek design.
- Ingress-protected and with high privacy.
- Fitted with earthing clamp.
- IP44 classification (construction with water channel and insect screen).
- Class A4 water resistance.
- Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
- Stainless steel 304 mesh (6 x 6 mm) as standard.
- Anodized or powder-coated finish.
- Minimum dimensions: 100 x 100 mm.
General information
Color | Other Grey |
Finish | Anodized Gloss Matt Powder-coated Satin |
Material | Aluminium Stainless steel |
Shape | Square Rectangle |
Length | 34 mm Manufacturer guidanceDepth. |
Width | Bespoke 100 mm 200 mm 300 mm 400 mm |
Height | Bespoke 100 mm 200 mm 300 mm 400 mm |
Warranty description | Ten year Five year Two year Manufacturer guidance
|
Uniclass | |
CAWS | H11/437 Louvres L10/54 Louvres H11/140 Louvres L10/650 Metal louvres |
Product range |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option:
|
Material | Aluminium sections (AlMgSi 0.5, according EN 12020-2). |
Finish | Powder-coated.Guidance for specification option: Layer thickness: 40 microns. |
Colour | RAL colour.Guidance for specification option: Insert requirements. Syntha Pulvin colour.Guidance for specification option: Insert requirements. |
Texture | Gloss.Guidance for specification option: Gloss level 70%. Matt.Guidance for specification option: Gloss level 30%. |
Construction | Flanged frame.Guidance for specification option: Flange size: 21 mm. |
Air intake and exhaust performance | |
Air volume | Manufacturer guidanceConsult manufacturer and insert requirements. |
Weather performance | |
Water penetration class (minimum) | To BS EN 13030, Class A.Guidance for specification option: Class for execution with mesh 2.3 x 2.3 mm and water channel: A4 (1 m/s). |
Discharge loss coefficient (minimum) | To BS EN 13030, Class 4.Guidance for specification option:
|
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 20 mm chevron. |
Blade angle | Fixed. |
Accessories | Not required.Water channel.Drainage profile.Removable insect mesh.Filter.Flangeless frame (without flange).Glazed-in louvre 415.Stainless steel 304 mesh, 2.3 x 2.3 mm.Stainless steel 304 mesh, 10 x 10 mm.Stainless steel 304 mesh, 20 x 20 mm.Stainless steel 316 insect screen (2.3 x 2.3 mm).Stainless steel 316 mesh, 2.3 x 2.3 mm.Stainless steel 316 mesh, 10 x 10 mm.Stainless steel 316 mesh, 20 x 20 mm.Spring clips (small dimensions). |
Integral accessories | Stainless steel 304 mesh (6 x 6 mm). Without mesh. |
Air flow | K-factor (entry) to EN 13030, 34.60. |
Free area | Visual free area: 93%. |
Ingress protection (IP) rating | IP2XD. Guidance for specification option: IP class for version with mesh 2.3 x 2.3 mm and water channel (electrical installation at least 350 mm): IP44. |
Fixing | Brackets. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2 kg CO₂ eq/kg Self declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: 15-60%. |
