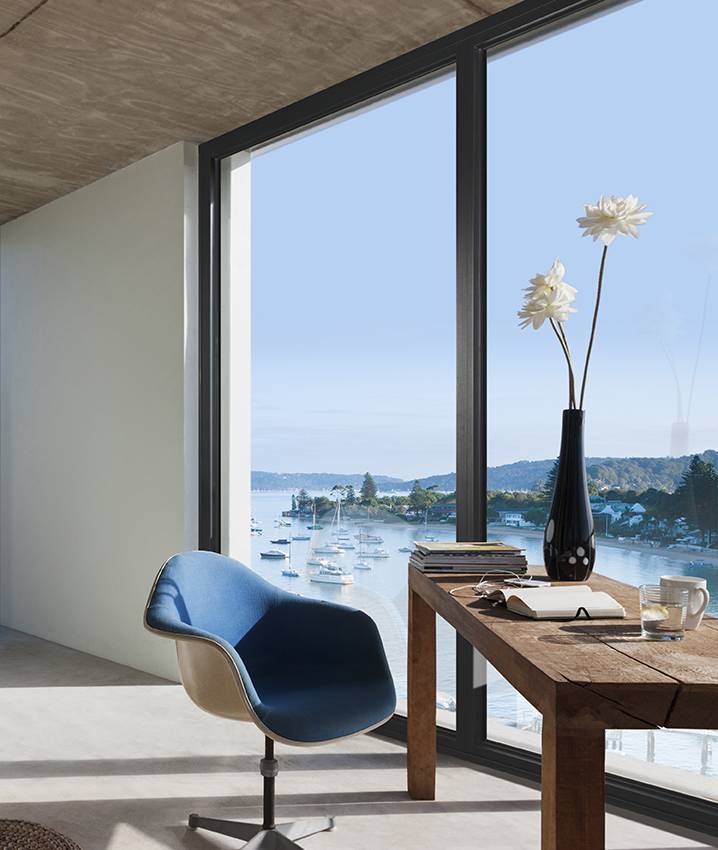

Futureline 425TB

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

Thermal Break Futureline 425TB Capral commercial glazing systems have long set the benchmark for others to match and the new Capral Futureline 425TB thermally broken framing system is no exception.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial use.

Description

The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with commercial glazing systems.

The use of the latest thermal break technology, consisting of double bar polyamide strips has been incorporated for excellent levels of thermal insulation. The Futureline 425TB framing system offers the best of both worlds; a strong architectural aesthetic with a level of thermal efficiency usually associated with narrower, less substantial framing systems.




General information

Color

Other

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

4000 mm

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451 Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Frame dimensions

100mm x 62mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 4.0m and Mullion Spacing of 2.4m.

Glazing

Double.

Performance:

Max SLS: 4500pa / ULS: 8500pa / WATER: 900pa.

Standard

AS2047.

Acoustics

Rw 41 (-2C;-5Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

up to BAL29 DTS.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg CO₂ eq/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

Extrusion Wall Chart Futureline Capral 2012

Extrusion Wall Chart Futureline Capral 2012

Futureline Brochure

Futureline Brochure

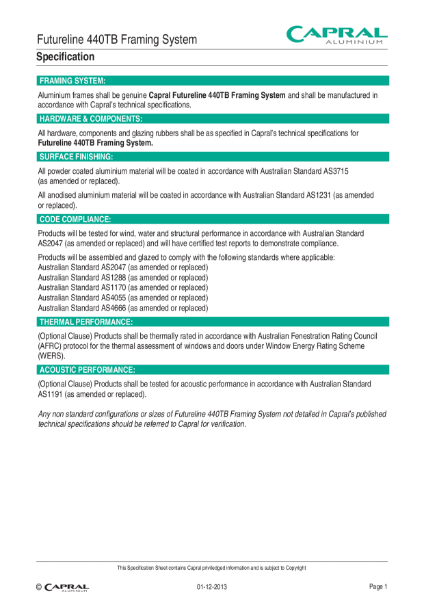

Specification 440TB Futureline

Specification 440TB Futureline

AGS 440TB Futureline Technical Data Manual 2108

AGS 440TB Futureline Technical Data Manual 2108
