AGS 619 Flushline Single Glazed (150mm)

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 619 Flushline is a flush glazed framing system offering a clean and modern external appearance.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 619 Flushline is a flush glazed framing system offering a clean and modern external appearance.

A uniform external appearance also allows various frame depths to be used whilst maintaining a consistent look.

In addition to these features, the AGS 619 Flushline can incorporate structurally glazed mullion profiles and offers a number of operable door and window options.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

5000 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451 Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Standard

To AS 2047.

Product performance

-

Serviceability limit state (SLS)

Max 5,700 Pa.

Ultimate limit state (ULS)

11,100 Pa.

Integral accessories

Silicon jointed external face.

Frame dimensions

150 x 55 mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 5.0m and mullion Spacing of 2.4 m

Glazing

Single.

Performance:

Max SLS 5,700 Pa.

ULS 11,100 Pa.

Water 1,200 Pa.

Acoustics

Rw 37 (-1; -3).

Cyclonic impact testing

Yes

Bushfire attack level (BAL)

BAL 40.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

AGS 619 Flushline Technical Data Manual 2208

AGS 619 Flushline Technical Data Manual 2208

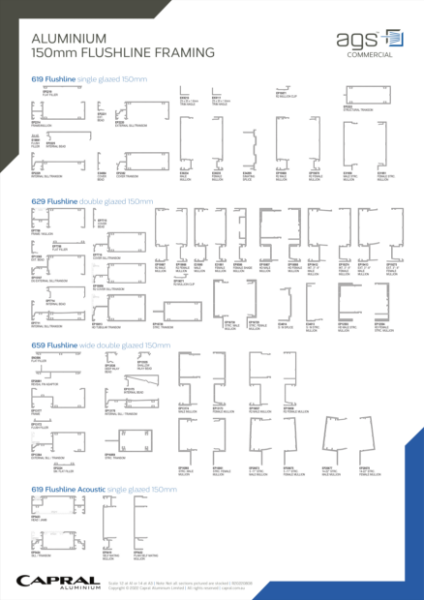

Extrusion Wall Chart AGS Flushline 150mm 2208
