AGS 325 Narrowline double glazed

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 325 Narrowline double glazed aluminium framing systems slimline frame depth and ability to accommodate a captive glazing wedge makes it an economical option for architectural projects

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

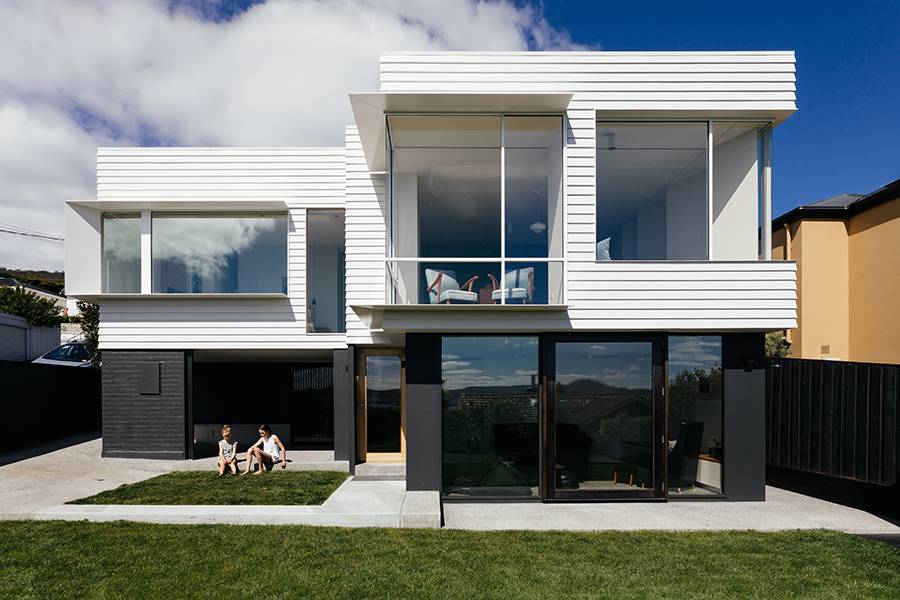

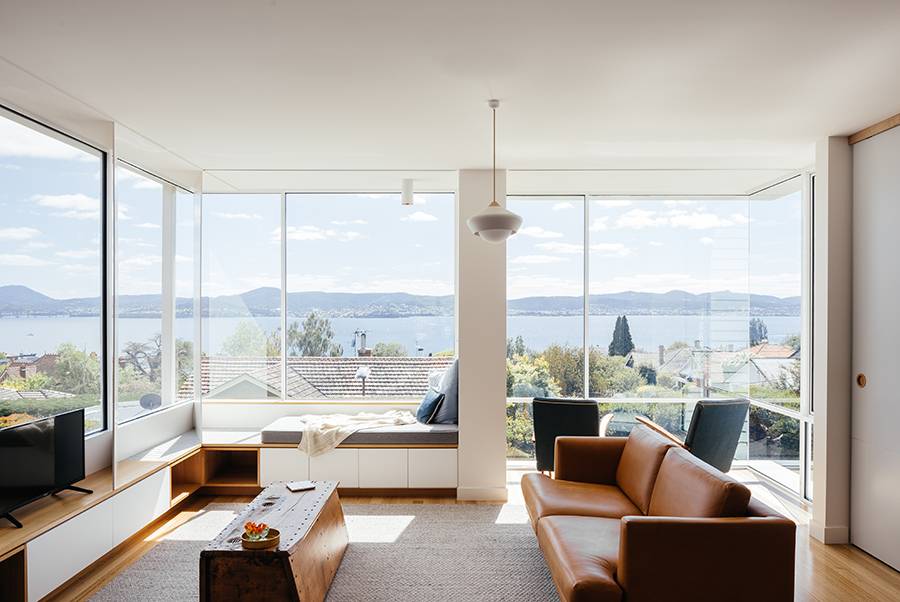

The AGS 325 Narrowline double glazed aluminium framing system provides a crisp, narrow Commercial appearance in a smaller 76mm x 35mm form. Its slimline frame depth and ability to accommodate a captive glazing wedge makes it an economical option for architectural housing, shop front applications of modest dimensions or internal partitioning applications. The centre glazed configuration can incorporate an adaptor to accommodate the 35 Series Awning/Casement window.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Manufacturer guidance

Various profiles available.

Width

2000 mm

Height

3000 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Product performance

-

Whole window U-value

U value dependant on overall size and configuration

Frame dimensions

76mm x 35mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 3.0m and Mullion Spacing of 2.0m.

Glazing

Single.

Double.

Performance:

Max SLS: 2500pa / ULS: 4100pa / WATER: 600pa.

Cyclonic impact testing

No

Bushfire attack level (BAL)

up to BAL29 DTS.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network
