AGS 400 Narrowline

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 400 narrowline frame is 101.6mm deep with centre glazing.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 400 Narrowline framing system has set the standard for centre glazed framing for over two decades. With an aesthetically balanced look and the option of bevelled or square finishes, the AGS 400 Narrowline is the most versatile and adaptable framing system in the range. With a multitude of compatible window and door suites, the AGS 400 Narrowline offers enormous design flexibility making this product ideal for commercial or residential projects that require a bold modern look and high levels of structural performance.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

4000 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Standard

To AS 2047.

Dimensions and configurations

Various dimensions and configurations - see product literature

Product performance

-

Whole window U-value

-

Manufacturer guidance

U value dependant on overall size and configuration.

Frame dimensions

Standard Frame 101.6mm x 44mm / Narrow Frame 101.6mm x 28mm /

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team.


This system is limited to a Height of 4.0m and a Mullion Spacing of 2.4m.


Glazing

Single.

Performance:

Max SLS: 5200pa / ULS: 10300pa / WATER: 1500pa.

Standard

AS2047.

Acoustics

Rw 37(0C, -3Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 40

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

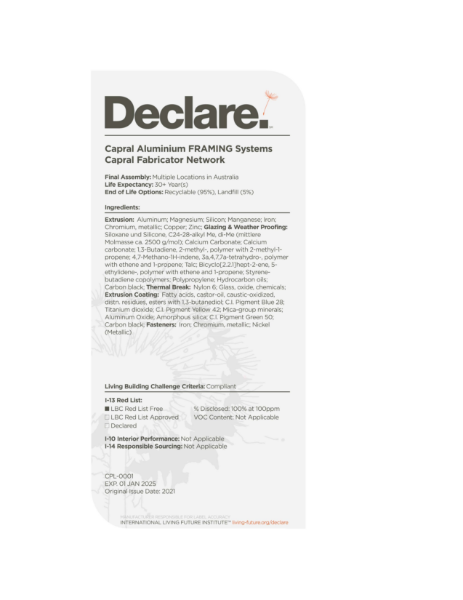

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

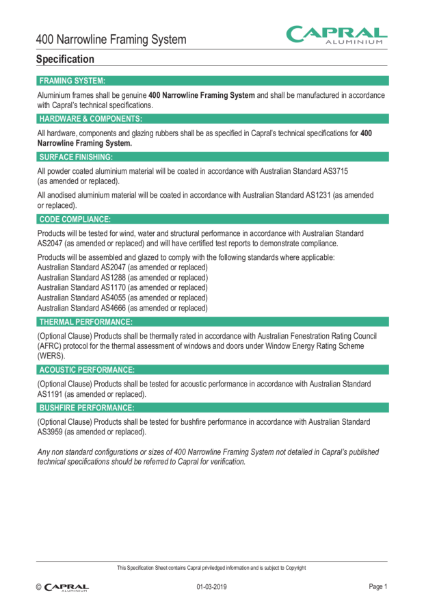

Specification-400Narrowline_1903.

Specification-400Narrowline_1903.

Extrusion wall chart AGS Narrowline 2207

Extrusion wall chart AGS Narrowline 2207

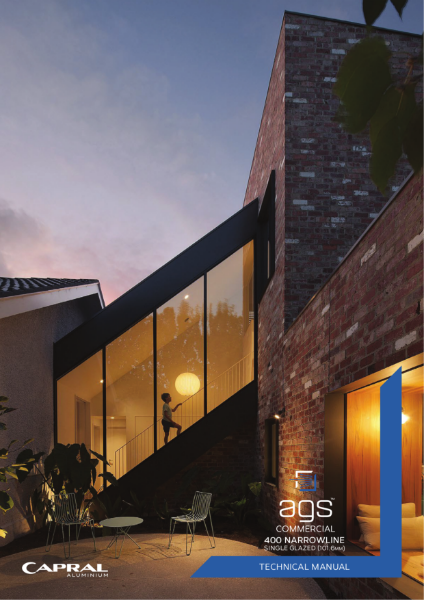

AGS 400 Narrowline Technical Data Manual 2207

AGS 400 Narrowline Technical Data Manual 2207

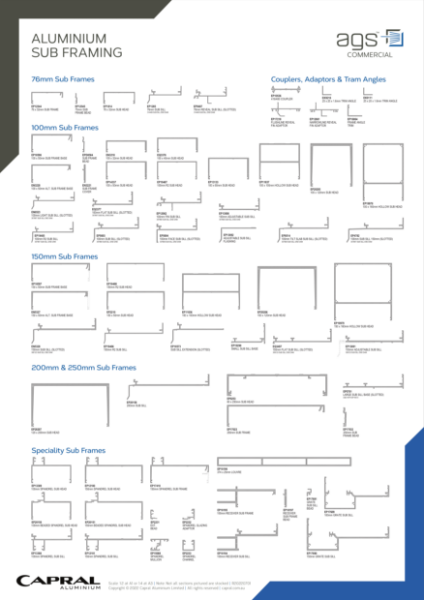

Extrusion Wall chart AGS subframing 2207

Extrusion Wall chart AGS subframing 2207
