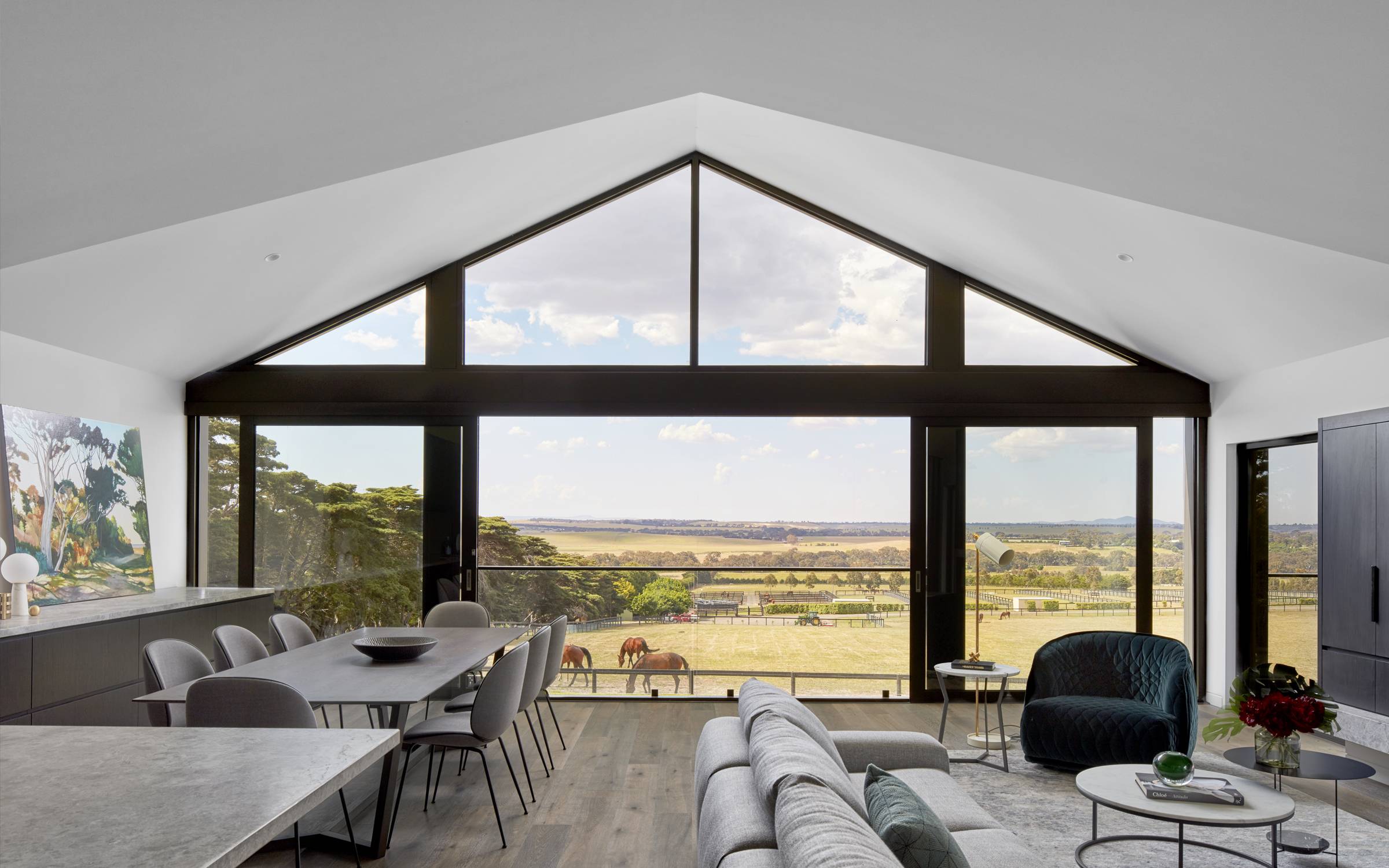

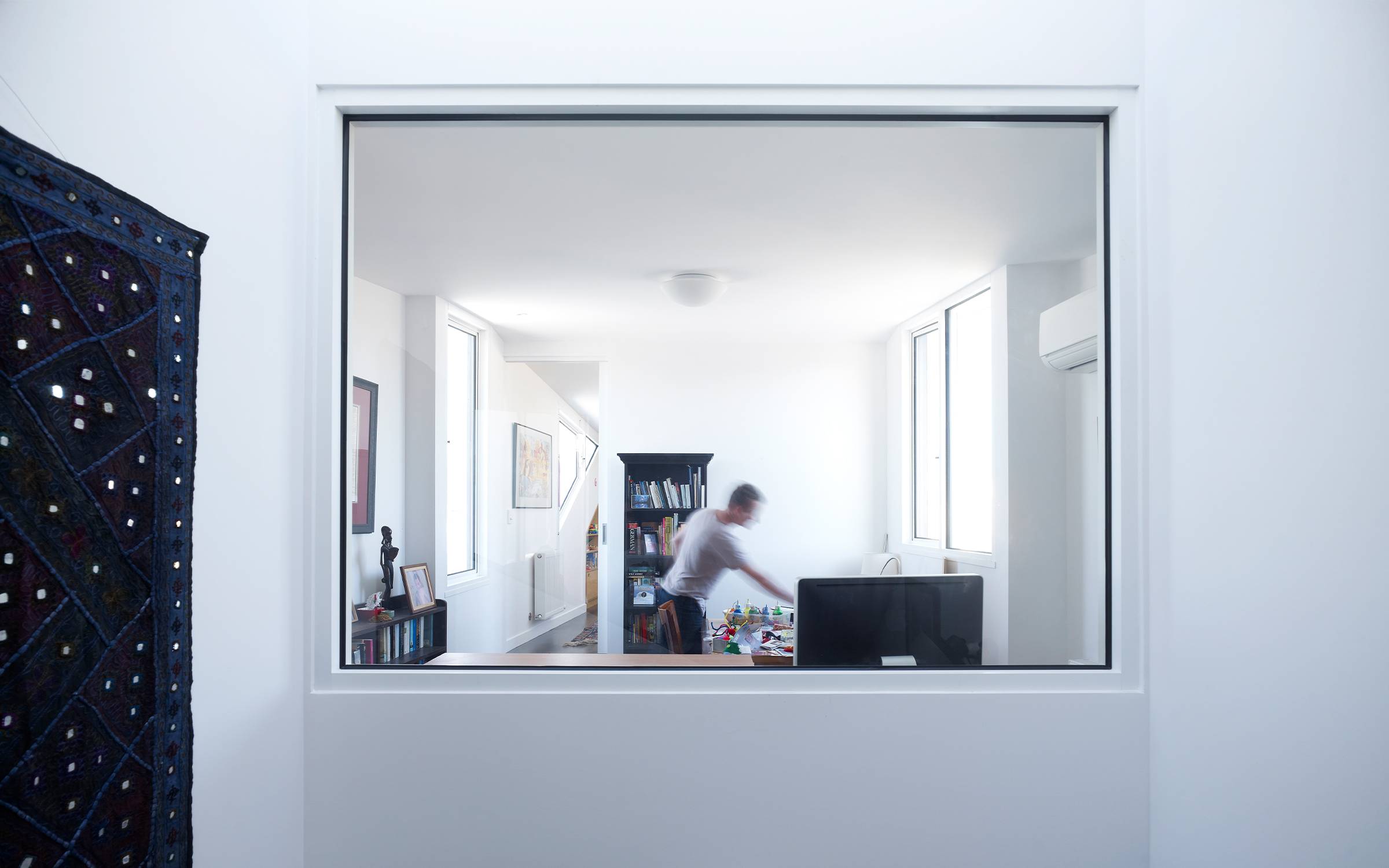

AGS 425 Narrowline double glazed

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 425 Narrowline double glazed is a 101.6mm deep framing system with glazing in the centre

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 425 Narrowline framing system has been developed specifically to cater for the growing requirement for energy-efficient double glazing. Modeled on the AGS 400 Narrowline framing system, the 425 Narrowline integrates seamlessly to allow design flexibility between single and double glazed systems. With a wide range of compatible doors and operable windows, the AGS 425 Narrowline offers generous design flexibility making this product ideal for commercial or residential projects that require a bold modern look and high levels of structural and thermal performance.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

4000 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Frame dimensions

101.6mm x 50mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height 4.0m and a mullion Spacing of 2.4m.

Glazing

Single.

Double.

Performance:

Max SLS: 4500pa / ULS: 9700pa / WATER: 1500pa.

Standard

AS2047.

Acoustics

Rw 44-(2C, -6Ctr).

Cyclonic impact testing

Yes

Bushfire attack level (BAL)

BAL 40

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

Extrusion Wall chart AGS subframing 2207

Extrusion Wall chart AGS subframing 2207

Extrusion wall chart AGS Narrowline 2207

Extrusion wall chart AGS Narrowline 2207

AGS 425 Narrowline Technical Data Manual 2207

AGS 425 Narrowline Technical Data Manual 2207

AGS Sub Framing Tech Manual 2207

AGS Sub Framing Tech Manual 2207
