AGS 600 Narrowline

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

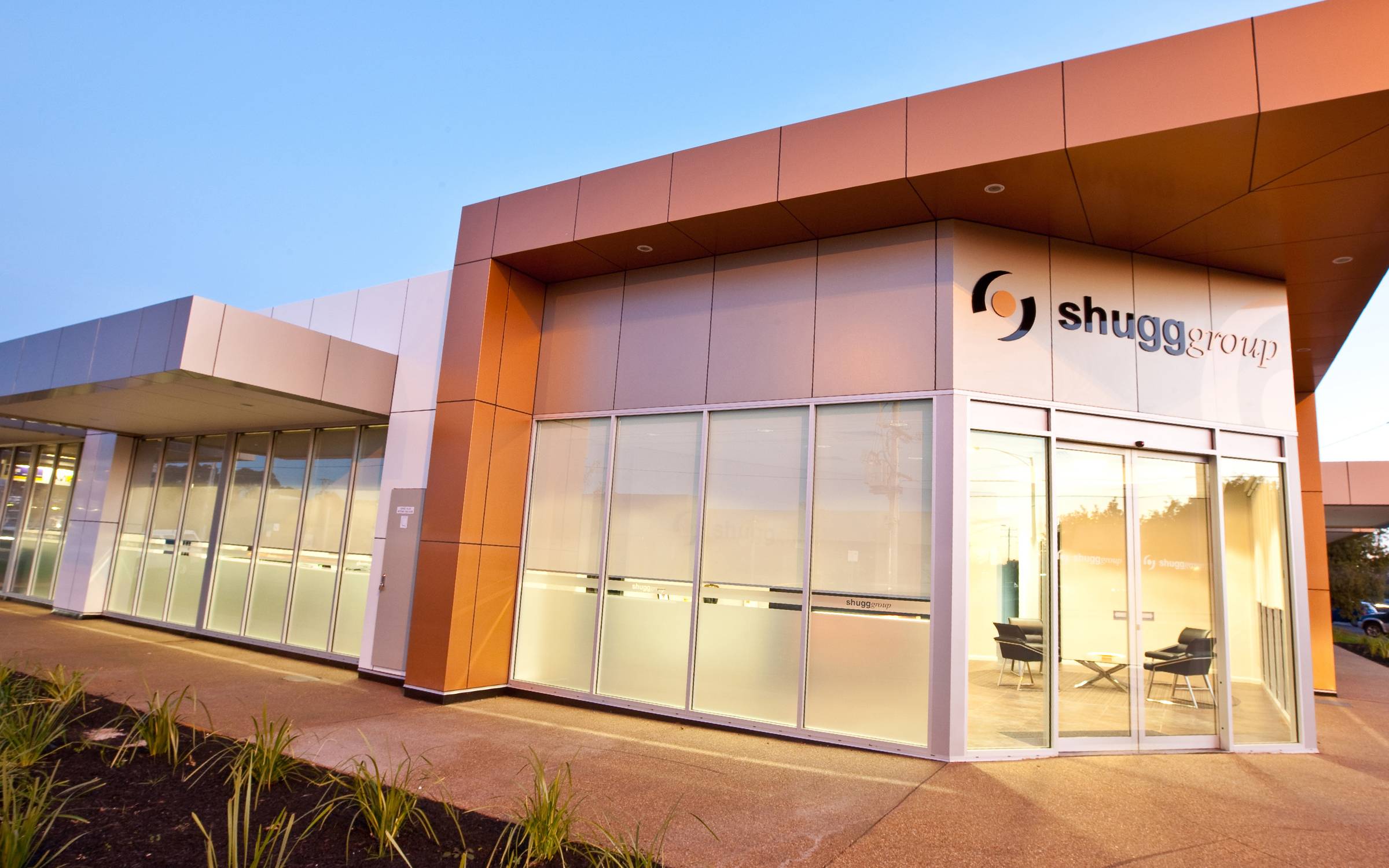

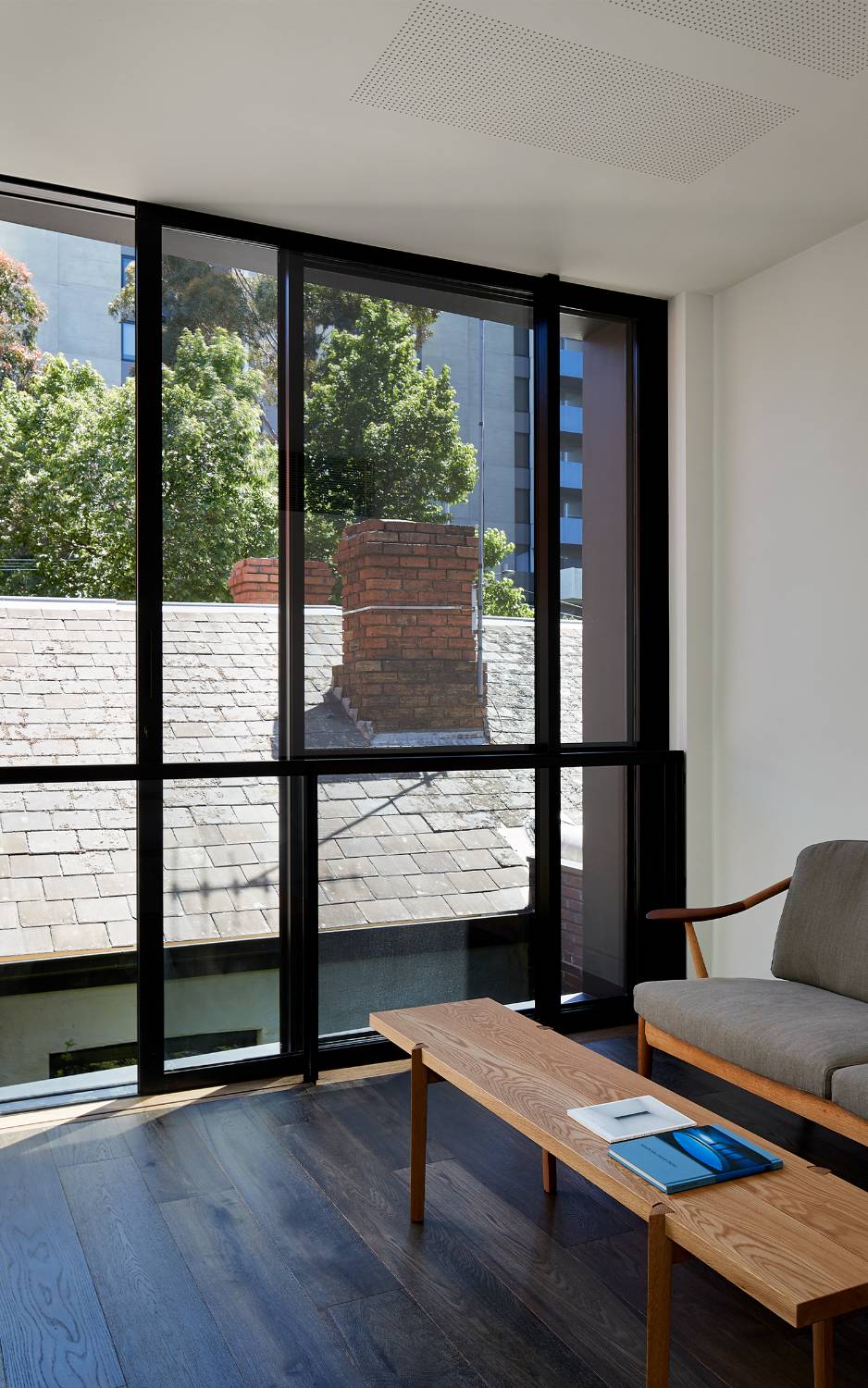

The AGS 600 Narrowline is a 150mm deep centre glazed framing system.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 600 Narrowline offers an increased level of structural performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension. The centre pocketed framing system offers optional self mating or snap mullion combinations and can accommodate single glazing up to a thickness of 12mm.

The AGS 600 Narrowline also offers a number of door and window options

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Manufacturer guidance

Various profiles available.

Width

2200 mm

Height

4000 mm

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Standard

To AS 2047.

Dimensions and configurations

Various dimensions and configurations - see product literature.

Product performance

-

Whole window U-value

U value dependant on overall size and configuration.

Frame dimensions

150mm x 50mm / For detailed mullion information please contact Capral Spec Team

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 4.0m and Mullion Spacing of 2.2m.

Glazing

Single.

Performance:

Max SLS: 4500pa / ULS: 10900pa / WATER:900pa.

Cyclonic impact testing

No

Bushfire attack level (BAL)

up to BAL29 DTS.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

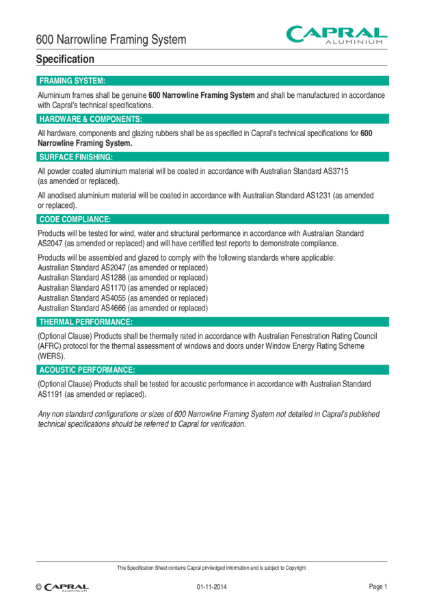

Specification 600 Narrowline

Specification 600 Narrowline

AGS Sub Framing Tech Manual 2207

AGS Sub Framing Tech Manual 2207

AGS 600 Narrowline Technical Data Manual 2207

AGS 600 Narrowline Technical Data Manual 2207

Extrusion wall chart AGS Narrowline 2207

Extrusion wall chart AGS Narrowline 2207

Extrusion Wall chart AGS subframing 2207

Extrusion Wall chart AGS subframing 2207
