AGS 419 Flushline Single Glazed (100mm)

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 419 Flushline is a flush glazed framing system offering a clean and modern external appearance

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 419 Flushline is a flush glazed framing system offering a clean and modern external appearance.

A uniform external appearance also allows various frame depths to be used whilst maintaining a consistent look.

In addition to these features, the AGS 419 Flushline can incorporate structurally glazed mullion profiles and offers a number of operable door and window options

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

3800 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

SpecPack

08520 Metal Windows and Glazed Doors

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Standard

To AS 2047.

Product performance

-

Serviceability limit state (SLS)

6000 Pa.

Ultimate limit state (ULS)

9000 Pa.

Bushfire Attack Resistance

-

Standard

To AS 3959.

Bushfire protection level

BAL 40.

Acoustic performance

-

Standard

To AS/NZS ISO 717.1.

Weighted sound reduction index (Rw)

Rw 37 (-1, -3).

Water penetration resistance

-

Exposed

1500 Pa.

Integral accessories

Silicon jointed external face.

FrameSize

100 x 50 mm.

Width (maximum)

2400 mm.

Glazing

Single.

Performance

Max SLS 6000 Pa.

ULS 9000 Pa.

Water 1500 Pa.

Cyclonic impact testing

Yes

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

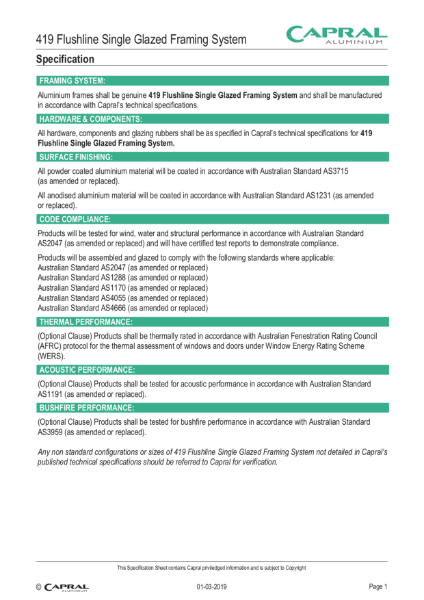

Specification - 419 Flushline_1903

Specification - 419 Flushline_1903

AGS Sub Framing Tech Manual 2207

AGS Sub Framing Tech Manual 2207

AGS 419 Flushline Technical Data Manual 2207

AGS 419 Flushline Technical Data Manual 2207

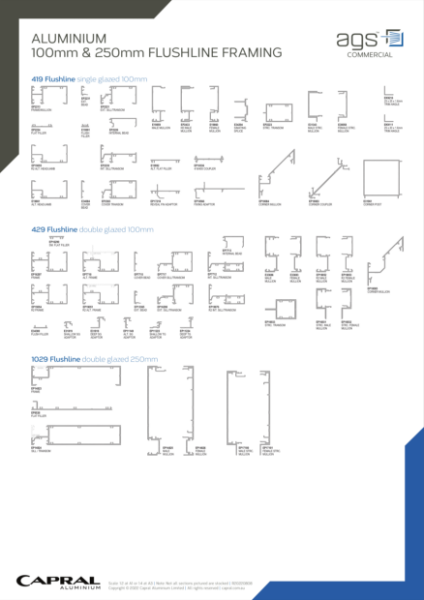

Extrusion Wall Chart AGS Flushline 100 & 250mm 2208
