AGS 625 Narrowline double glazed

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

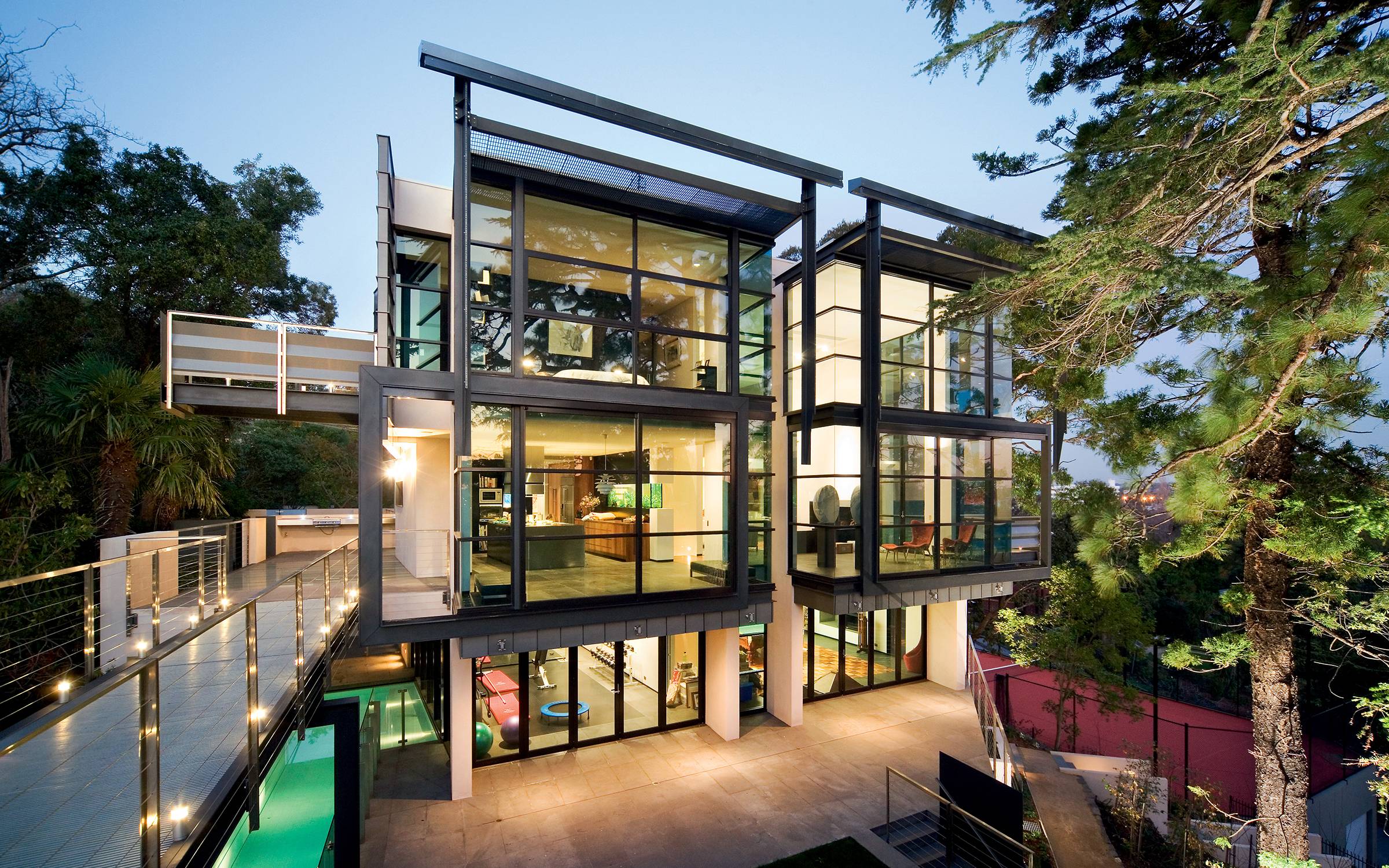

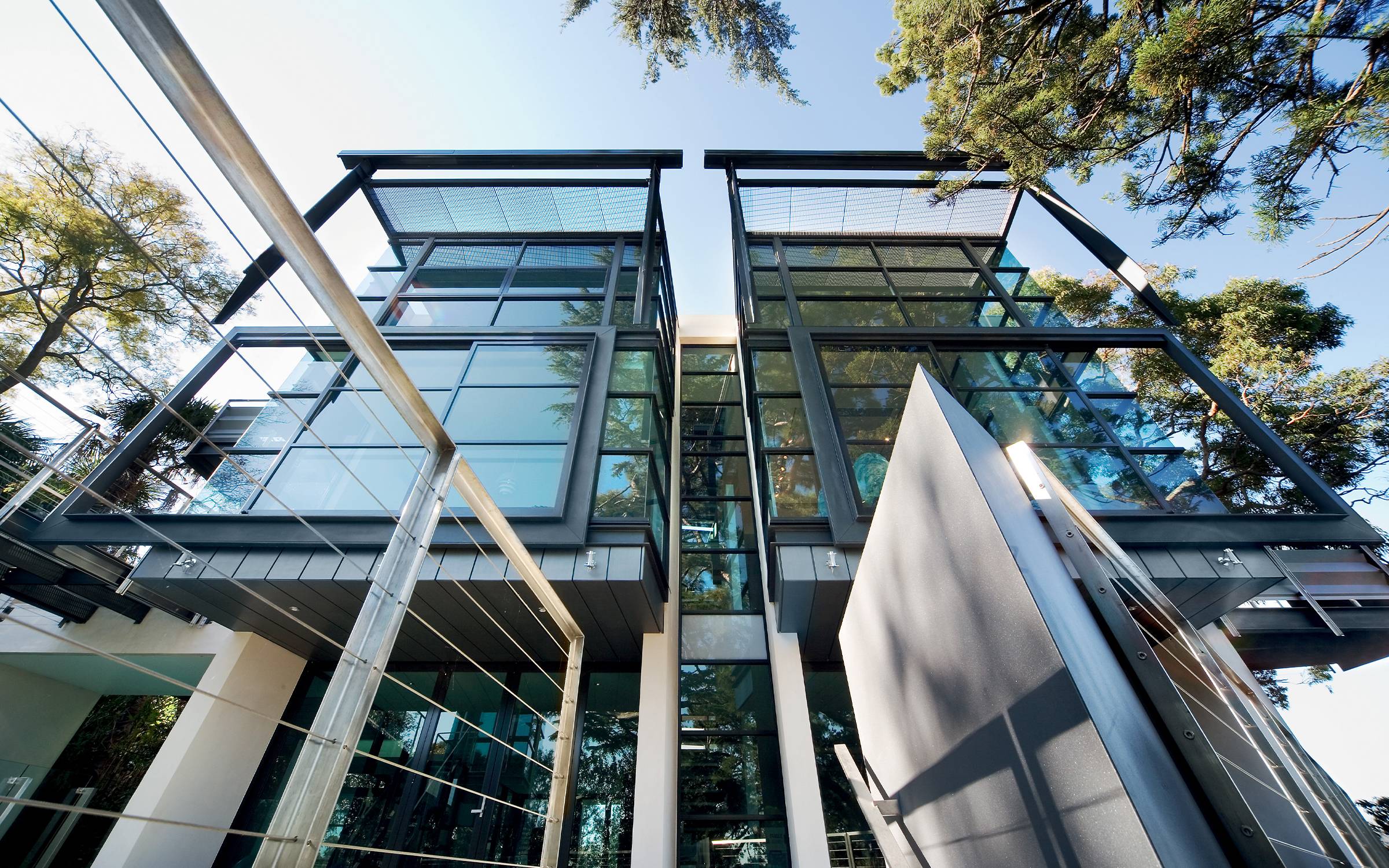

The AGS 625 Narrowline double glazed is a 150mm deep framing system with the glazing in the centre.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.

The dedicated double glazed centre pocketed framing system delivers an enhanced level of thermal performance over the AGS 600 Narrowline and can accommodate insulated glass units of up to 28mm in width. The AGS 625 Narrowline framing system also offers a number of hinged door and pivot door options.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Manufacturer guidance

Various profile available.

Width

2200 mm

Height

4000 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Product performance

-

Whole window U-value

-

Manufacturer guidance

U value dependant on overall size and configuration.

Frame dimensions

150mm x 50mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 4.0m and mullion Spacing at 2.2m.

Glazing

Single.

Double.

Performance:

Max SLS: 6004pa / ULS: 10052pa / WATER: 900pa.

Standard

AS2047.

Acoustics

Rw 37(0C;-2Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 40

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network
