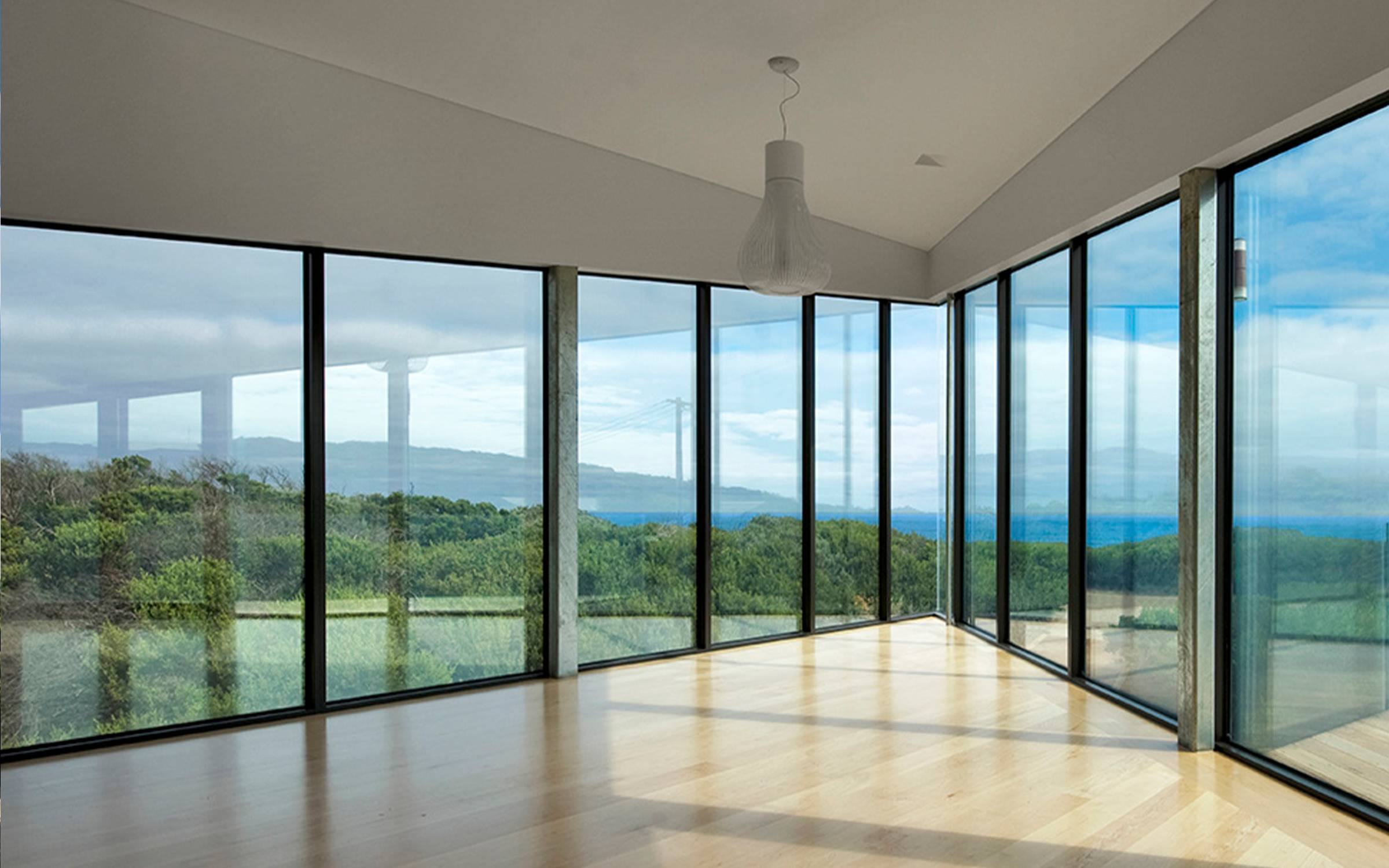

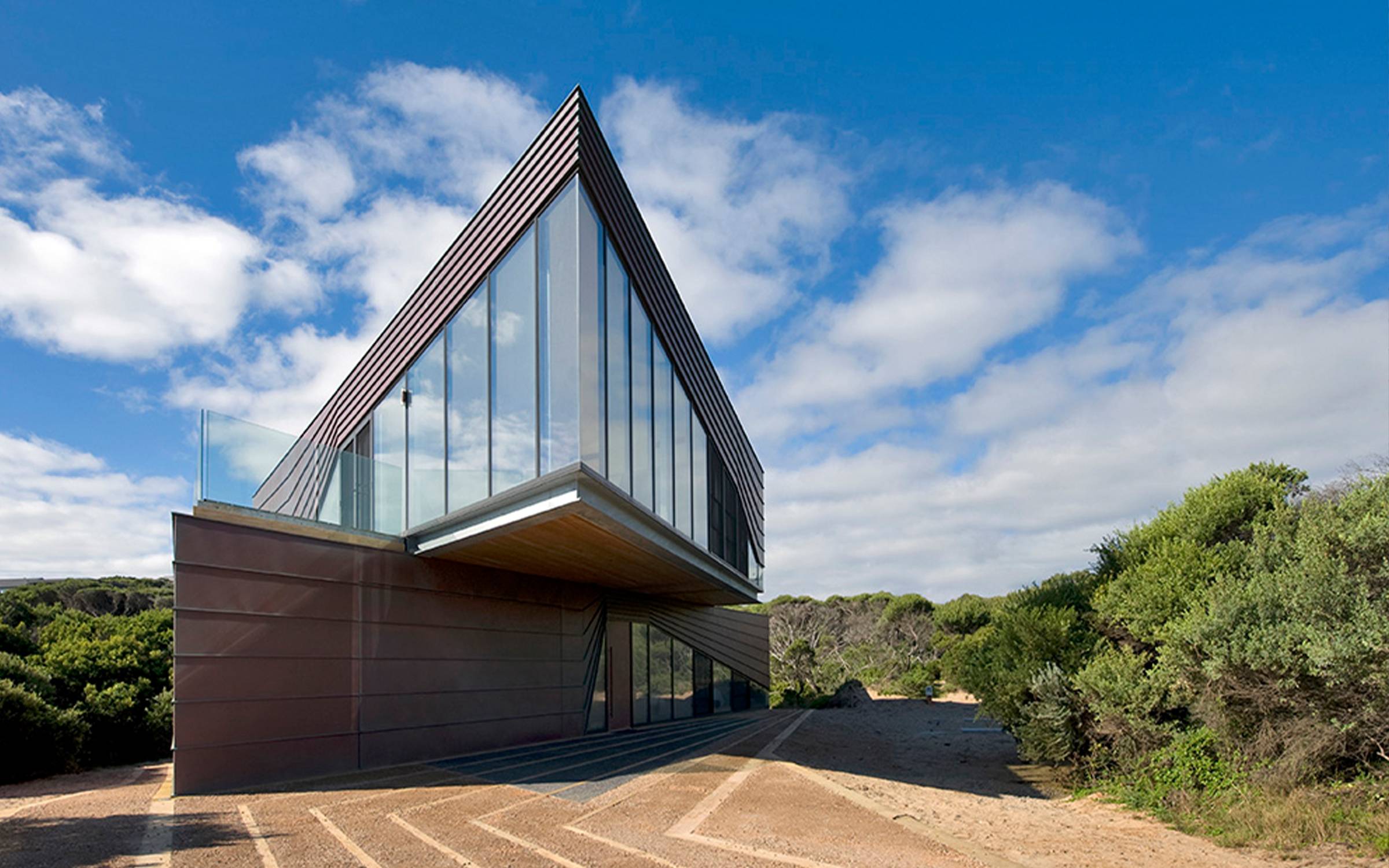

AGS 429 Flushline double glazed (100mm)

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The AGS 429 Flushline framing system is 100mm deep with the glass flush to the face.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial aluminium framed glazing.

Description

The AGS 429 Commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques. Its front glazed arrangement has been designed to maximize internal areas whilst achieving a clean and modern external appearance. A uniform external appearance also allows various frame widths to be used whilst maintaining a consistent look. In addition to these features, the AGS 429 Flushline system is available in single or double glazed form, incorporates optional structurally glazed mullion profiles and offers a number of operable door and window options.

General information

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2400 mm

Height

3400 mm

Warranty description

Six year

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Standard

To AS 2047.

Product performance

-

Serviceability limit state (SLS)

6,000 Pa. (Maximum)

Ultimate limit state (ULS)

10,000 Pa.

Acoustic performance

-

Standard

To AS/NZS ISO 717.1.

Whole window U-value

U value dependant on overall size and configuration

Integral accessories

Silicon jointed external face.

Frame dimensions

100 x 50 mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 3.8m and mullion spacing of 2.4m.

Glazing

Single.

Double.

Performance:

Max SLS 6,000 Pa.

ULS 10,000 Pa.

Water 900 Pa.

Acoustics

Rw 40 (-2:6).

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 40.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100% recyclable

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

AGS Sub Framing Tech Manual 2207

AGS Sub Framing Tech Manual 2207

Extrusion Wall chart AGS subframing 2207

Extrusion Wall chart AGS subframing 2207

Extrusion Wall Chart AGS Flushline 100 & 250mm 2208

Extrusion Wall Chart AGS Flushline 100 & 250mm 2208

AGS 429 Flushline Technical Data Manual 2208

AGS 429 Flushline Technical Data Manual 2208

Case studies

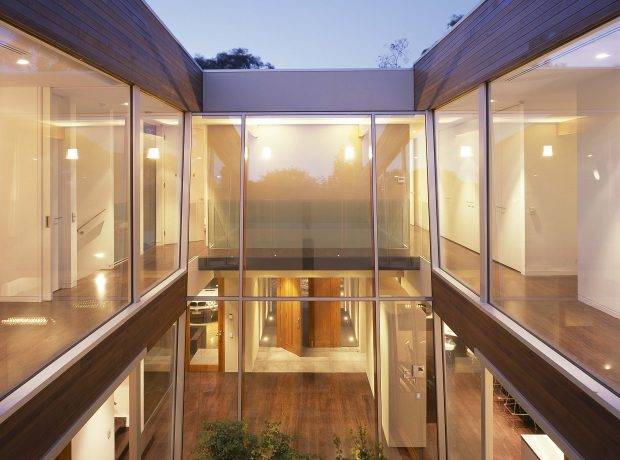

Family Connections, VIC
